LEGO MINDSTORMS Robots User Manual

Page 148

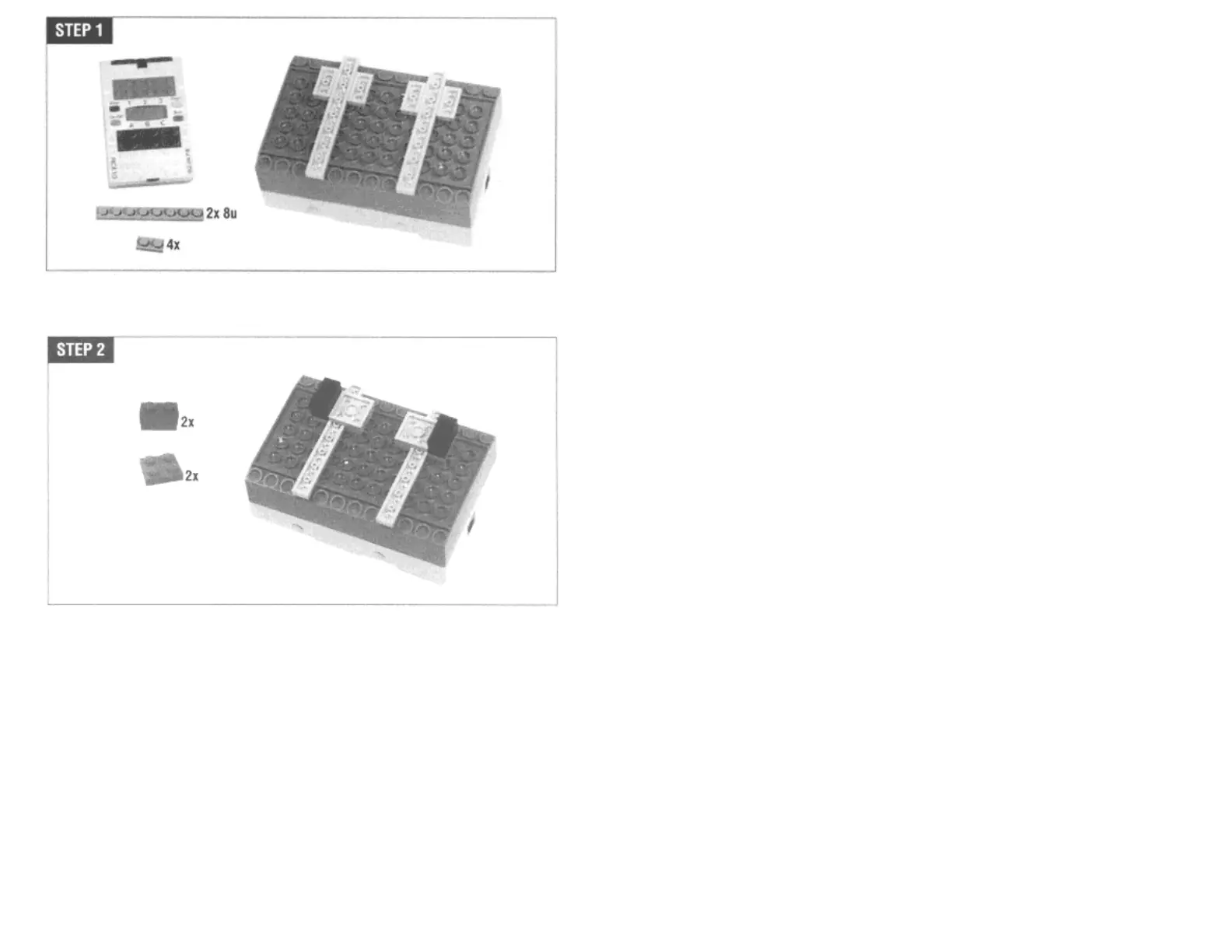

Attach the light sensor and wire bricks as shown. The light sensor goes on input 1,
while the two wire bricks (which will be attached to the touch sensors) go to
input 2 and input 3. If you get these two wires backwards, you'll know when you push the
joystick backward and the robot moves forward. You can easily swap the two
connectors later.

LEGO MINDSTORMS Robots Specifications

General

Product Line	LEGO MINDSTORMS
Category	Toy
Age Range	10+
Batteries Required	Yes
Memory	64 MB RAM, 16 MB Flash
Connectivity	Bluetooth, USB
Sensors	Touch, Color, Gyro
Battery Type	AA
Interactive Features	Programmable, Remote Control
App Compatibility	iOS, Android
Processor	ARM9
Pieces Count	601
Battery Count	6
App Name	LEGO MINDSTORMS EV3 Programmer App
