In this chapter, you'll build Trusty, a simple robot that exhibits a behavior called line following. This means that Trusty, shown in Figure 3-1, can drive along a sort of ''track" defined by a thick
black line on the floor. Your RIS kit includes a "Test Pad," which is simply a large piece of white paper with some black lines and other marks on it. Trusty will follow the large black oval on this
paper faithfully until he runs out of battery power.

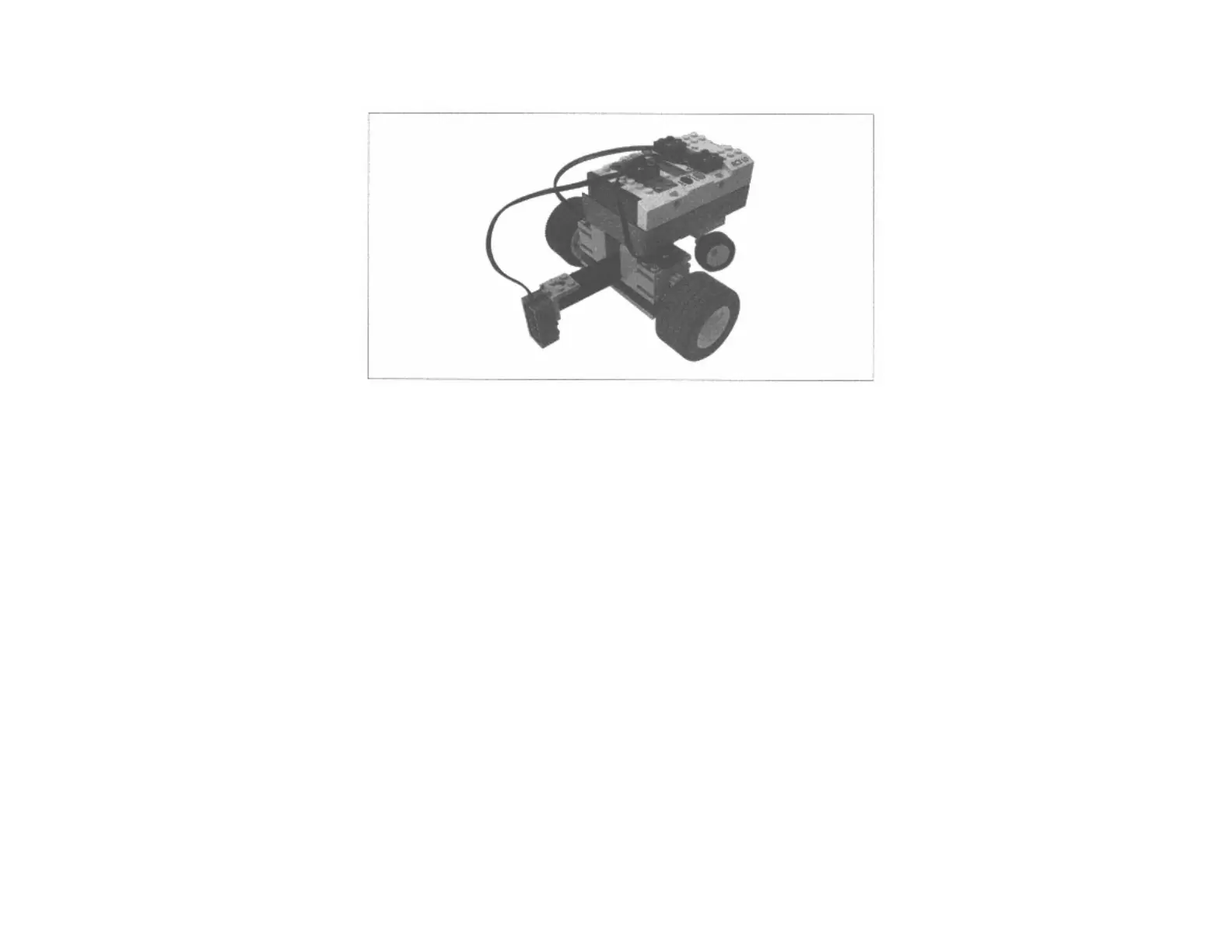

Figure 3-1.
Trusty, a line follower
As you can see in Figure 3-1, Trusty's main feature is a downward pointing light sensor. This sensor is the key to line following. The light sensor can distinguish between the white background of
the Test Pad and the black line drawn on it. As
Page 40
you'll discover, this feature doesn't make line following easy to program; but it does make it possible.
Building Instructions

LEGO MINDSTORMS Robots Specifications

General

Product Line	LEGO MINDSTORMS
Category	Toy
Age Range	10+
Batteries Required	Yes
Memory	64 MB RAM, 16 MB Flash
Connectivity	Bluetooth, USB
Sensors	Touch, Color, Gyro
Battery Type	AA
Interactive Features	Programmable, Remote Control
App Compatibility	iOS, Android
Processor	ARM9
Pieces Count	601
Battery Count	6
App Name	LEGO MINDSTORMS EV3 Programmer App
