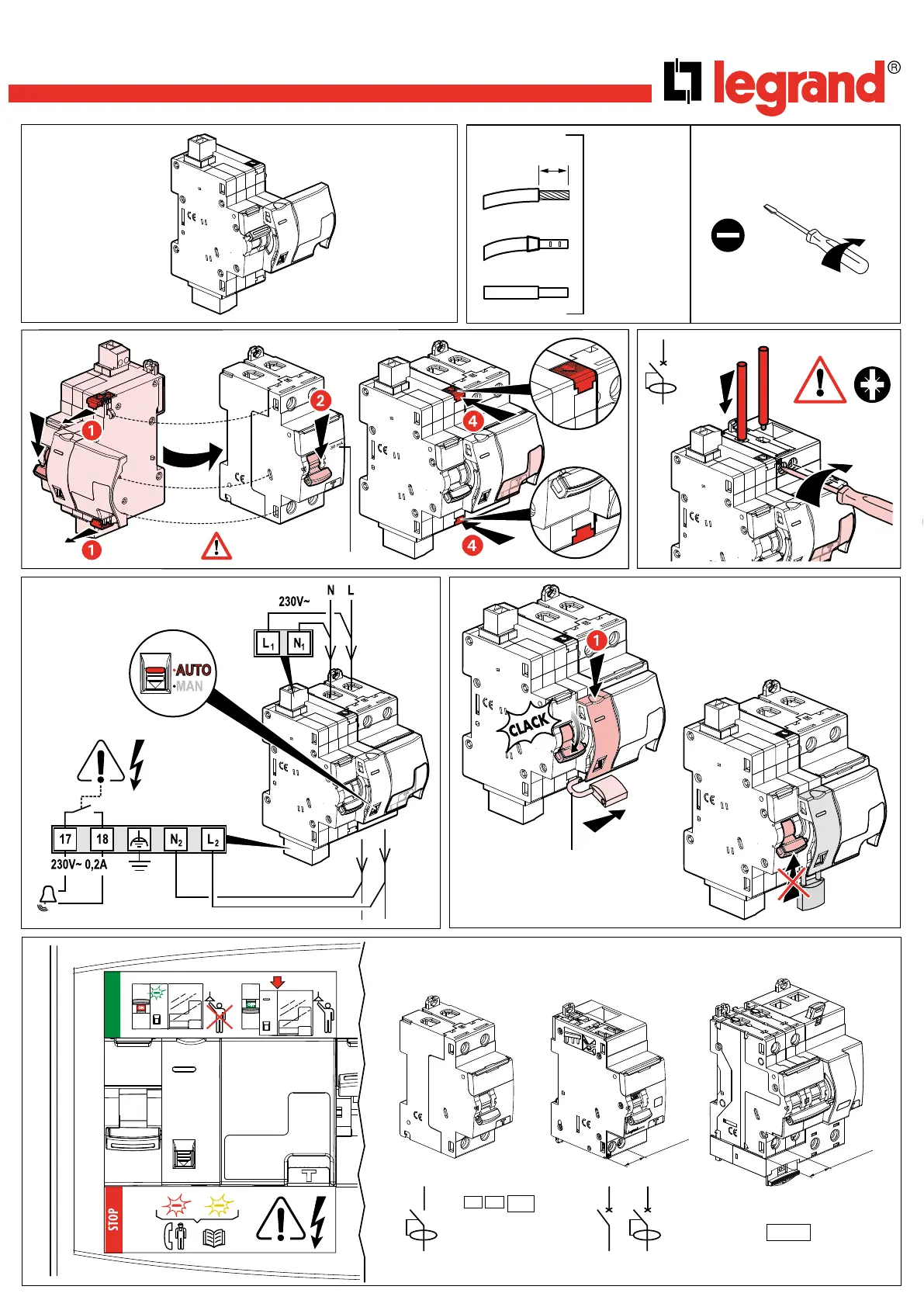

LEGRAND DX3 User Manual

7 mm
3.5 mm
0,5 Nm
max
Ø 4 mm
4 062 89 = 30 mA
16 A ≥ In ≤ 100 A ≤ 63 A & ≤ DX
3
10000
G O



MAX
2.5 mm
2
2 x 1.5 mm
2


Pz 1
17,5 mm
17,5 mm
2P ~ Hpi
~
ʌ∩
1P + N , 2P ≤ 63 A
2,8 Nm max
1P + N
N0265B - LE04414AB
4 062 88/89
09/12- 01 - WP

LEGRAND DX3 Specifications

General

Number of Poles	1P, 2P, 3P, 4P
Breaking Capacity	6 kA
Rated Voltage	230/400V AC
Tripping Curve	C
Standards	IEC 60898-1
Mechanical Life	20000 cycles
Electrical Life	10000 cycles
Rated Current	6A to 63A
