LEGRAND DX3 User Manual

4/5
STOP & GO automatic resetting
STOP & GO automatic resettingSTOP & GO automatic resetting
STOP & GO automatic resetting
Cat. N°(s)
Cat. N°(s)Cat. N°(s)
Cat. N°(s) : 4
: 4: 4
: 4 062 88 / 89
062 88 / 89062 88 / 89
062 88 / 89
5. GENERAL CHARACTERISTICS
5. GENERAL CHARACTERISTICS5. GENERAL CHARACTERISTICS
5. GENERAL CHARACTERISTICS

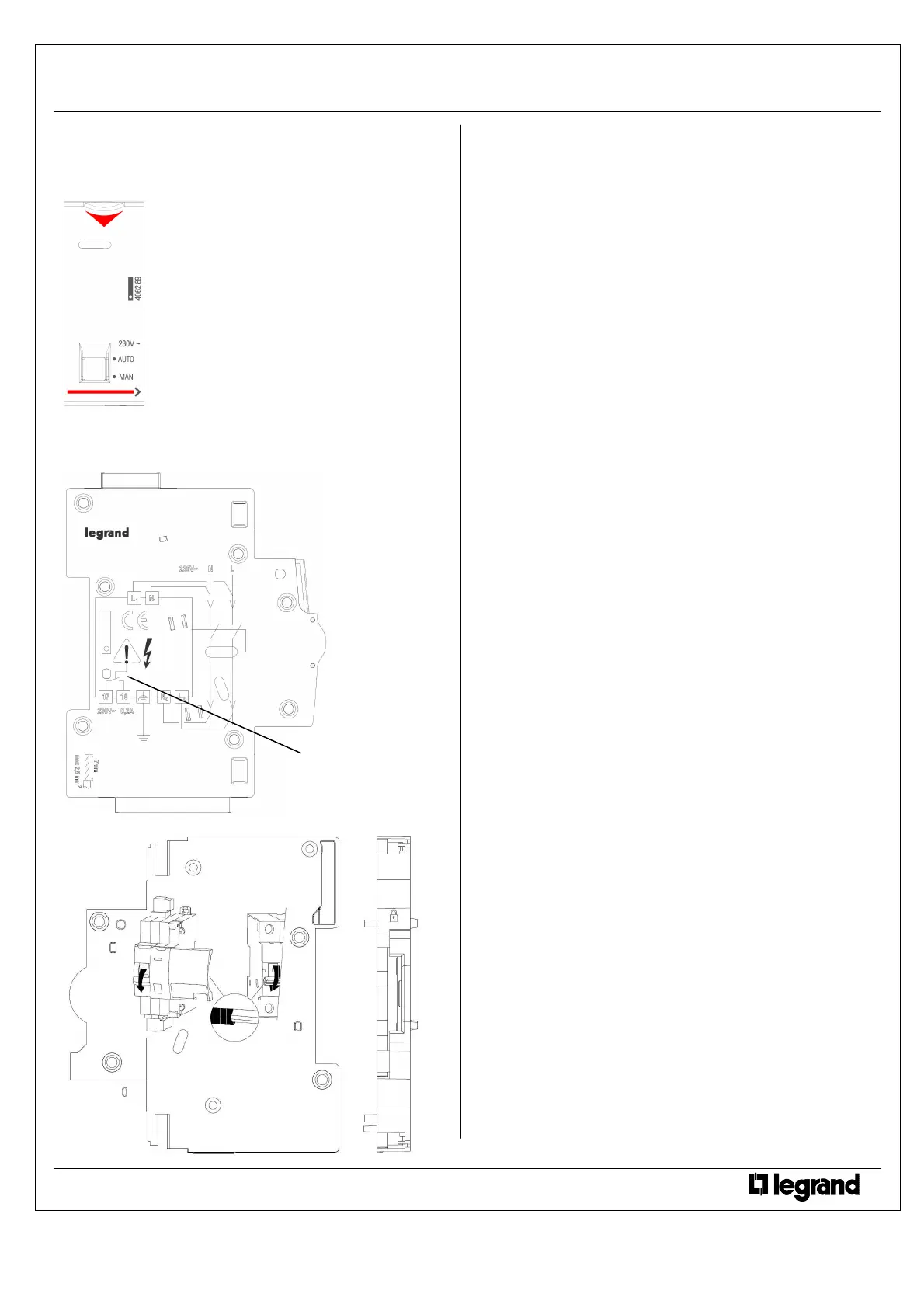

Front side marking:
Front side marking:Front side marking:
Front side marking:
. By permanent pad printing
Lateral side marking:
Lateral side marking:Lateral side marking:
Lateral side marking:
. By laser.
left side
right side
5. GENERAL CHARACTERISTICS
5. GENERAL CHARACTERISTICS 5. GENERAL CHARACTERISTICS
5. GENERAL CHARACTERISTICS (continued)
Characteristics of the fault detection:
Characteristics of the fault detection:Characteristics of the fault detection:
Characteristics of the fault detection:
- Rd (non operating rated resistance between the live parts and the
earth ) 225kΩ
- Rd0 (operating rated resistance between the live parts and the earth)
375kΩ
- Rcc (non operating rated resistance between the live parts)
0,75Ω
- Rcc0 (operating rated resistance between the live parts)
1,25Ω
- The Stop & Go device can be used in TT and TN earth systems
Pulse rated voltage:
Pulse rated voltage:Pulse rated voltage:
Pulse rated voltage:
. Uimp = 4 kV
Insulation rated voltage:
Insulation rated voltage:Insulation rated voltage:
Insulation rated voltage:
. Ui = 500 V
Pollution degree
Pollution degreePollution degree
Pollution degree :
::
:
. 2 according to IEC/EN 60898-1.
Die
DieDie
Dielectric strength:
lectric strength:lectric strength:
lectric strength:
. 2500 V
Mechanical endurance:
Mechanical endurance:Mechanical endurance:
Mechanical endurance:
. 20000 operations.
Electrical endurance:
Electrical endurance:Electrical endurance:
Electrical endurance:
. In accordance with the requirements of the standards of the
associated protection device.
Enclosure material:
Enclosure material:Enclosure material:
Enclosure material:
. 20% glass-fiber reinforced polycarbonate
. Characteristics of this material: self extinguishing, heat and fire
resistant according to EN 60898-1, glow-wire test at 960°C for external
parts made of insulating material necessary to retain in position current-
carrying parts and parts of protective circuit (650°C for all other external
parts made of insulating material).
Average weight per pole:
Average weight per pole:Average weight per pole:
Average weight per pole:
. 0.174 kg.
V
VV
Volume when packed
olume when packedolume when packed
olume when packed :
::
:
. 1.20 dm
3
.
Ambient operating temperature:
Ambient operating temperature:Ambient operating temperature:
Ambient operating temperature:
. Min. = - 5 °C / Max. = + 60 °C.
Ambient storage temperature:
Ambient storage temperature:Ambient storage temperature:
Ambient storage temperature:
. Min. = - 25 °C / Max. = + 60 °C.
Protection class:
Protection class:Protection class:
Protection class:
. Protection index of terminals against solid and liquid bodies:
IP 20 (according to IEC 529, EN 60529 et NF C 20-010).
. Protection index of the case against solid and liquid bodies:
IP 40 (according to IEC 529, EN 60529 et NF C 20-010).
Technical data sheet: F01284EN/00 Updated: - Created: 11/11/2011
Alarm contact
:
- IEC/EN 60950
- 230V~, 0,2A
- 24 / 48V, 1A

LEGRAND DX3 Specifications

General

Number of Poles	1P, 2P, 3P, 4P
Breaking Capacity	6 kA
Rated Voltage	230/400V AC
Tripping Curve	C
Standards	IEC 60898-1
Mechanical Life	20000 cycles
Electrical Life	10000 cycles
Rated Current	6A to 63A
