LEGRAND NUMERIC Onfiniti User Manual

10

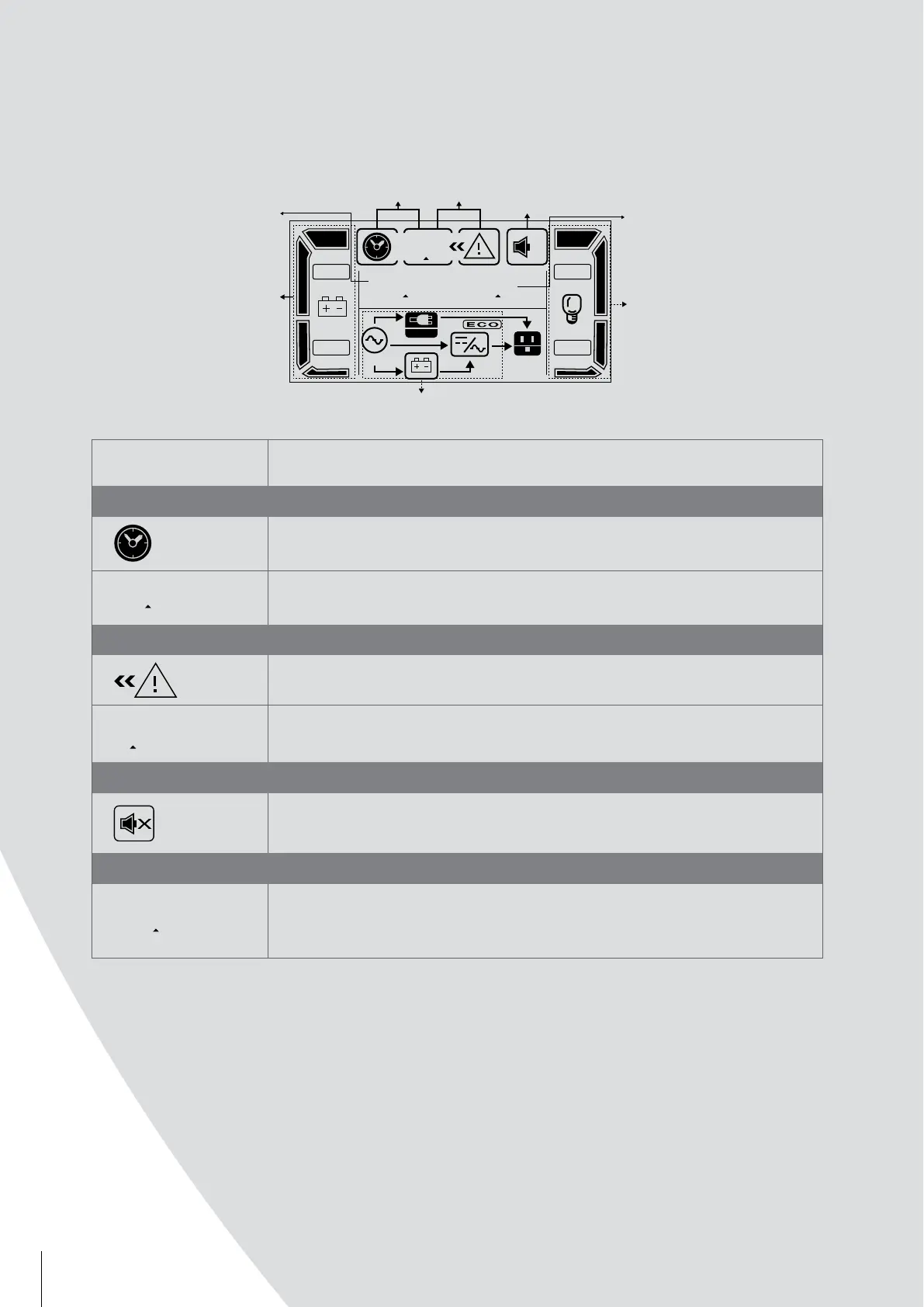

5-2. LCD panel
9
X
Remaining
Battery Info
Mode Operation Info
Input & Battery
Voltage Info
Vac
Vdc
Hz
BATT. FAU LT
LOW BATT.
OVER LOAD
SHORT
Backup Time Info
Fault
Info
Mute
Operation
Load Info
Output & Battery
Voltage Info
INPUT
I/P
OUTPUT
O/P
H
M
S
Vac
Vdc
Hz
BYPASS
888 888
88
Display Function
Indicates the remaining backup time in pie chart.
Indicates the remaining backup time in numbers.
H: hours, M: minute, S: second
Indicates the warning and fault occurs.
Indicates that the UPS alarm is disabled.
Indicates the warning and fault codes.
The codes are listed in details in section 3-5.
Indicates the output voltage, frequency or battery voltage.
Vac: output voltage, Vdc: battery voltage, Hz: frequency
H
M
S
88
88
OUTPUT
Vac
Vdc
Hz
888
Remaining backup time information
Fault information
Mute operation
Output and battery voltage information
Display Function
Indicates the load level by 0-25%, 26-50%, 51-75% and 76-100%.
Indicates the load or the UPS output is short circuit.
Indicates overload.
Indicates the output is working.
Indicates the ECO mode is enabled.
Indicates the bypass circuit is working.
Indicates the inverter circuit is working.
Indicates the battery level by 0-25%, 26-50%, 51-75% and 76-100%.
Indicates the battery is faulty.
Indicates low battery level and low battery voltage.
Indicates the input voltage or frequency or battery voltage.
Vac: Input voltage, Vdc: battery voltage, Hz: input frequency
Load information
Mode operation information
Battery information
Input and battery voltage information
BATT.FAULT
LOW BATT.
OVER LOAD
SHORT
I/P
O/P
BYPASS
INPUT
Vac
Vdc
Hz
888
Indicates the UPS connects to the mains.
Indicates the battery is working.
