5-7. Operating mode description
16
15
5-6. Charging current setting
10: Charger boost voltage setting
11: Charger float voltage setting
00: Exit setting
Parameter 3: Set up the charger boost voltage.
225-240: Setting the charger boost voltage
point in Parameters from 225 to 240.
Unit: 0.01 V/CELL (Default: 236)
Parameter 3: Set the acceptable battery
minimum cut-off voltage point by pressing
the Down key or Up key.
167-190: Setting the minimum battery cut-off
voltage point in parameter 3 from 167 to 190.
Unit: 0.01 V/CELL (Default: 175)
Parameter 3: Set up the charger float voltage.
220-233: Setting the charger float voltage point
in Parameters from 220 to 233.
Unit: 0.01 V/CELL (Default: 228)
09
167bC0
Vdc
10
236Cb
u
Vdc
Interface Setting
09: Battery minimum cut-off voltage setting
1 1
228CF
u
Vdc

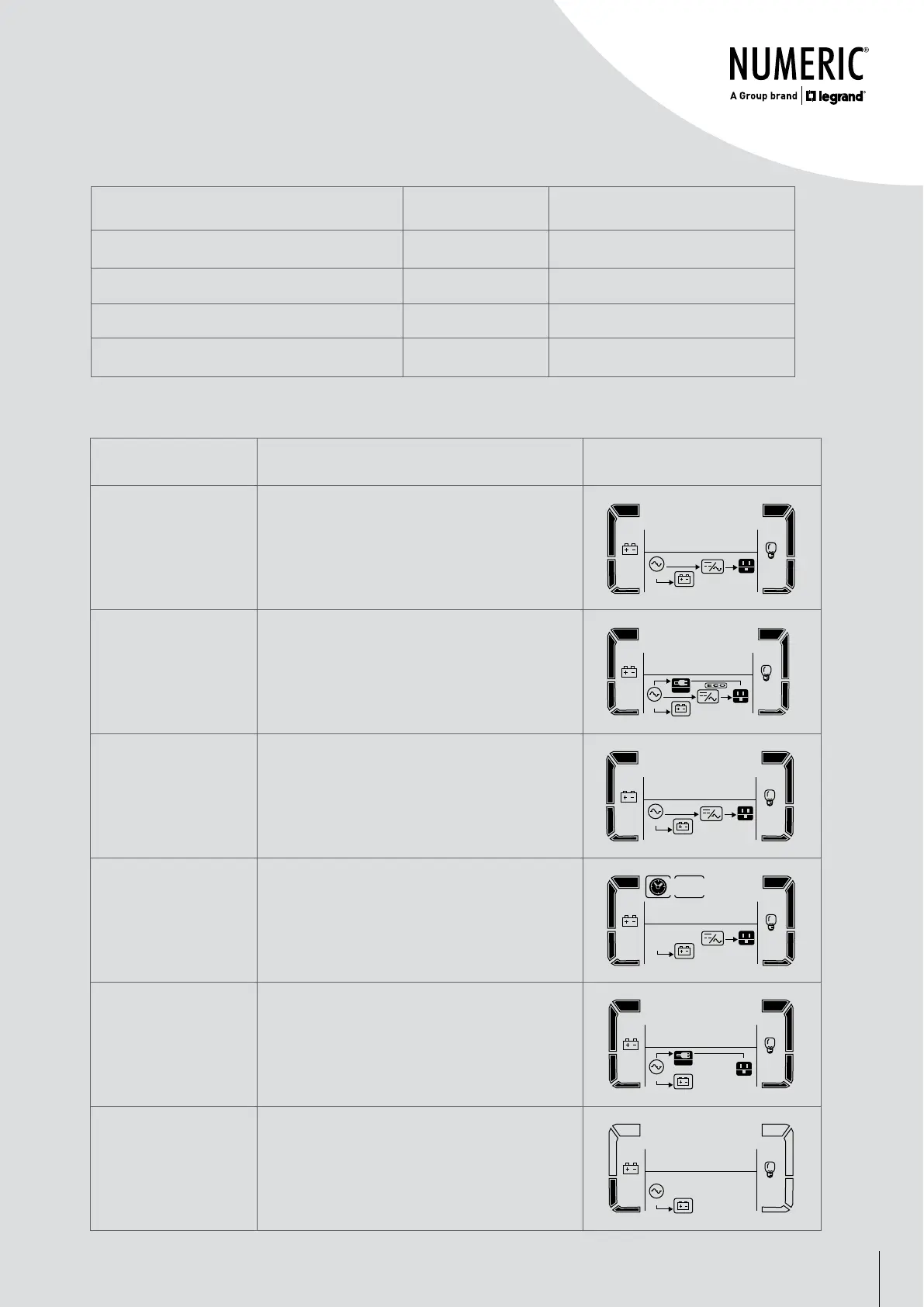

Operating mode Description LCD display
Online mode
230230
OUTPUT
INPUT
Vac Vac
BYPASS
I/P
O/P
0230
OUTPUT
INPUT
Vac Vac
I/P
CF
230230
OUTPUT
INPUT
Vac Vac
I/P
O/P
230230
OUTPUT
INPUT
Vac Vac
I/P
O/P
4.8
23072.0
OUTPUT
Vac
Vac
O/P
M
230230
OUTPUT
INPUT
Vac Vac
BYPASS
I/P
O/P
When the input voltage is within acceptable
range, UPS will provide pure and stable AC
power to output. The UPS will also charge
the battery in online mode.
ECO mode
Energy saving mode: When the input voltage
is within voltage regulation range, UPS will
bypass voltage to output for energy saving.
Frequency
converter mode
When input frequency is within 40 Hz. to 70
Hz, the UPS can be set at a constant output
frequency, 50 Hz. or 60 Hz. The UPS will still
charge battery under this mode.
Battery mode
When the input voltage is beyond the
acceptable range or power failure and alarm
sounds every 4 seconds, UPS will backup
power from battery.
Bypass mode
When input voltage is within the acceptable
range but UPS is overloaded, UPS will enter
Bypass mode or Bypass mode can be set by
front panel. Alarm sounds every 10 seconds.
Standby mode
UPS is powered off and no output supply
power, but still can charge batteries.
3 Batt. CHG (36 V 6 Batt. (72 V)/8 Batt (96 V)CHG)
J1 1 A 1 A
J2 2 A 2 A
J3 4 A 4 A
J4 (Default) 8 A 6 A
