Interface Setting

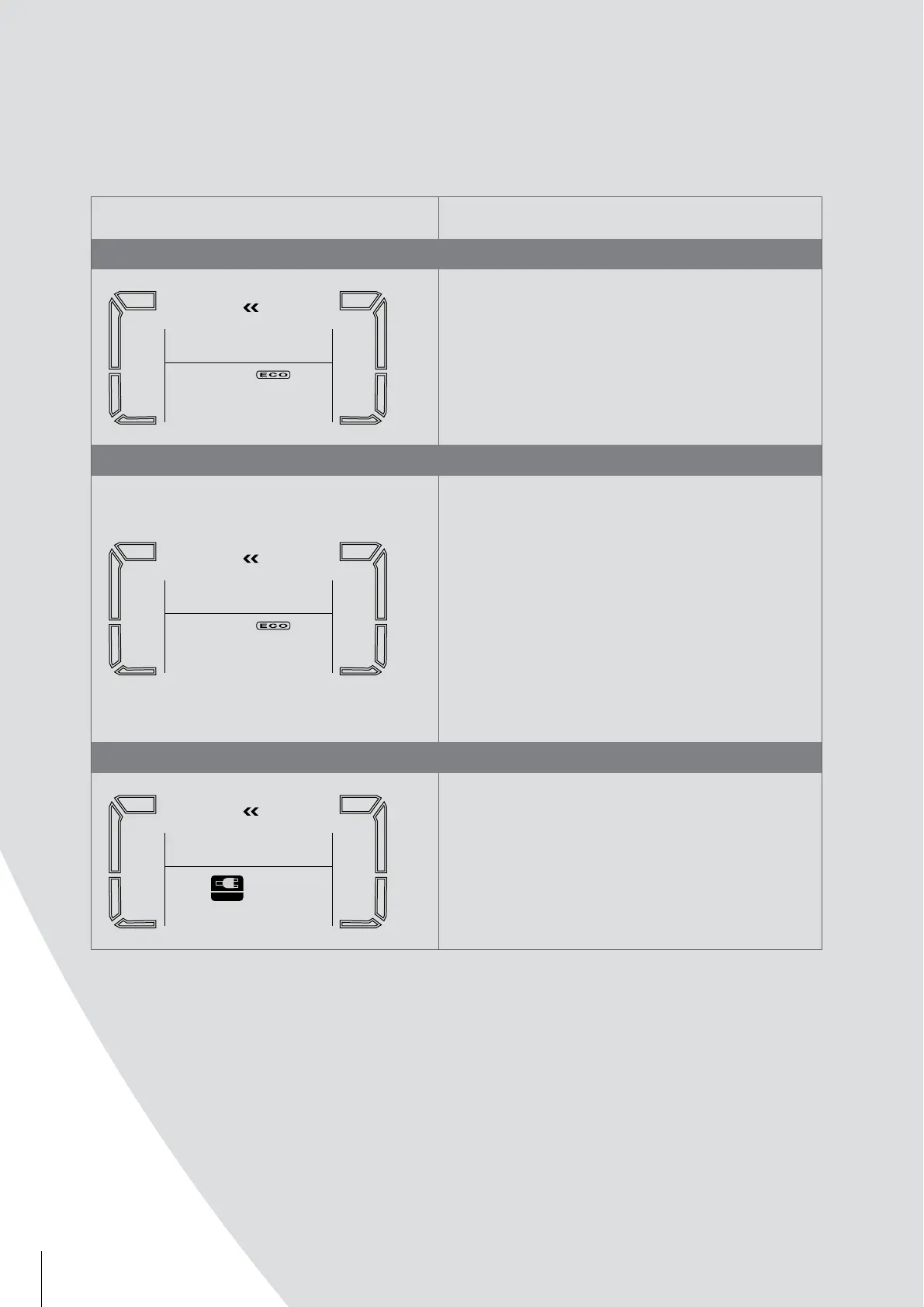

Parameter 3: Enable or disable ECO function.
You may choose the following two options:
ENA: ECO mode enable
DIS: ECO mode disable (Default)
Parameter 3: Enable or disable Bypass function.
You may choose the following two options:
ENA: Bypass enable
DIS: Bypass disable (Default)
05: ECO voltage range setting
04: ECO enable/disable
06: Bypass enable/disable when UPS is off
Parameter 2 & 3: Set the acceptable high voltage
point and low voltage point for ECO mode by
pressing Down or Up key.
HLS: High loss voltage in ECO mode in Parameter
2. For 200/208/220/230/240 VAC models, the setting
range in Parameter 3 is from +7 V to +24 V of the
nominal voltage. (Default: +12 V)
LLS: Low loss voltage in ECO mode in Parameter 2.
For 200/208/220/230/240 VAC models, the setting
range in Parameter 3 is from -7 V to -24 V of the
nominal voltage. (Default: -12 V)
06
EnA
BYPASS
04
EnA
05
260HLS
Vac
INPUT
14
Interface Setting
08: Autonomy limitation setting
07: Bypass voltage range setting
Parameter 3: Set backup time on battery mode
for general outlets.
0-999: Setting the backup time in minutes from
0-999 for general outlets on battery mode.
0: When setting as ‘0’, the backup time will be
only 10 seconds.
999: When setting as ‘999’, the backup time
setting will be disabled. (Default)
Parameter 2 & 3: Set the acceptable high
voltage point and acceptable low voltage point
for Bypass mode by pressing the Down key
or Up key.
HLS: Bypass high voltage point
For 200/208/220/230/240 Vac models:
230-264: Setting the high voltage point in
Parameter 3 from 230 Vac to 264 Vac.
(Default: 264 Vac)
LLS: Bypass low voltage point
For 200/208/220/230/240 Vac models:
170-220: Setting the low voltage point in
Parameter 3 from 170 Vac to 220 Vac.
(Default: 170 Vac)
07
260HLS
Vac
INPUT
BYPASS
08
999
M
