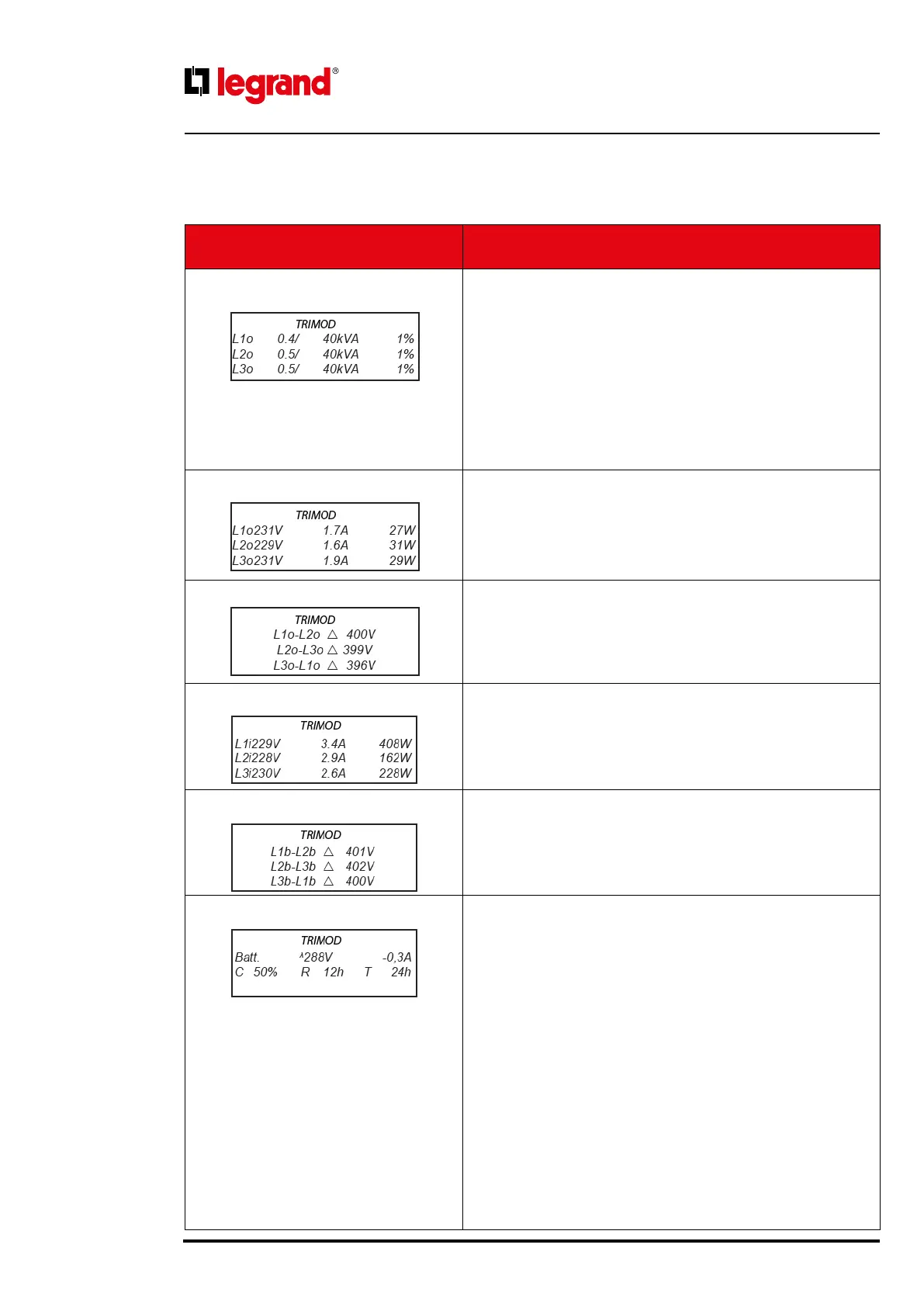

MAIN PAGE DATA DISPLAYED
5 load availability on output
1st line: Functioning status of the UPS. If the text is "TRIMOD", the
UPS is functioning properly
2nd line: Phase L1 - power in kVA or in Watt compared with the
nominal power or current compared with the rated or
relative percentage
3rd line: Phase L2 - power in kVA or in Watt compared with the
nominal power or current compared with the rated or
relative percentage
4th line: Phase L3 - power in kVA or in Watt compared with the
nominal power or current compared with the rated or
relative percentage
6 measurements on output
1st line: Functioning status of the UPS. If the text is "TRIMOD", the
UPS is functioning properly
2nd line: Output L1 phase - Voltage, current and active power
3rd line: Output L2 phase - Voltage, current and active power
4th line: Output L3 phase - Voltage, current and active power
7 output line voltages
1st line: Functioning status of the UPS. If the text is "TRIMOD", the
UPS is functioning properly
2nd line: line voltage between phase L1 and L2 on output
3rd line: line voltage between phase L2 and L3 on output
4th line: line voltage between phase L3 and L1 on output
8 measurement on input
1st line: Functioning status of the UPS. If the text is "TRIMOD", the
UPS is functioning properly
2nd line: Input L1 phase - Voltage, current and active power
3rd line: Input L2 phase - Voltage, current and active power
4th line: Input L3 phase - Voltage, current and active power
9 bypass line voltages
1st line: Functioning status of the UPS. If the text is "TRIMOD", the
UPS is functioning properly
2nd line: Line voltage between L1 and L2 of bypass line
3rd line: Line voltage between L2 and L3 of bypass line
4th line: Line voltage between L3 and L1 of bypass line
10 battery status
1st line: Functioning status of the UPS. If the text is "TRIMOD", the
UPS is functioning properly
2nd line: Voltage, charging current (negative value when charging in
progress, positive value when the batteries are powering the
equipment)
3rd line: Battery capacity percentage compared with the nominal
percentage, time remaining, total autonomy time
4th line: Battery status
- Battery Stand-by
- Discharging
- Reserve autonomy
- End autonomy
- Charging - ph1 - battery recharging status (current limitation)
- Charging - ph2 - battery recharging status (voltage limitation)
- Charging - maint: Battery recharging in maintenance mode
- Charging - oat.: Battery charging in oating mode
- Testing batteries: Battery test in progress
- Equaliz. batteries: Battery equalizing in progress
- BATTERY FAULT: battery voltage lower than 100V
- MaxTime on Battery: end of the maximum set time for the
functioning in battery mode
Charging - maint.
