4 Operation
4.1 Instrument Setup
4.1.1 General Information
It is recommended to set up the BLK360 on the tripod. Using the tripod
specied for the scanning system:
Guarantees maximum stability during scanning operations,
Ensures a better airow and prevents the BLK360 from heating up.
If you set up the BLK360 directly on a surface without the tripod
connected, ensure that it is a horizontal and at surface.
It is always recommended to shield the instrument from direct sun-
light and avoid uneven temperatures around the instrument.
4.1.2 Tripod Setup
NEW ILLUSTRATION (same mounting)
013458_001
3
2
1
4

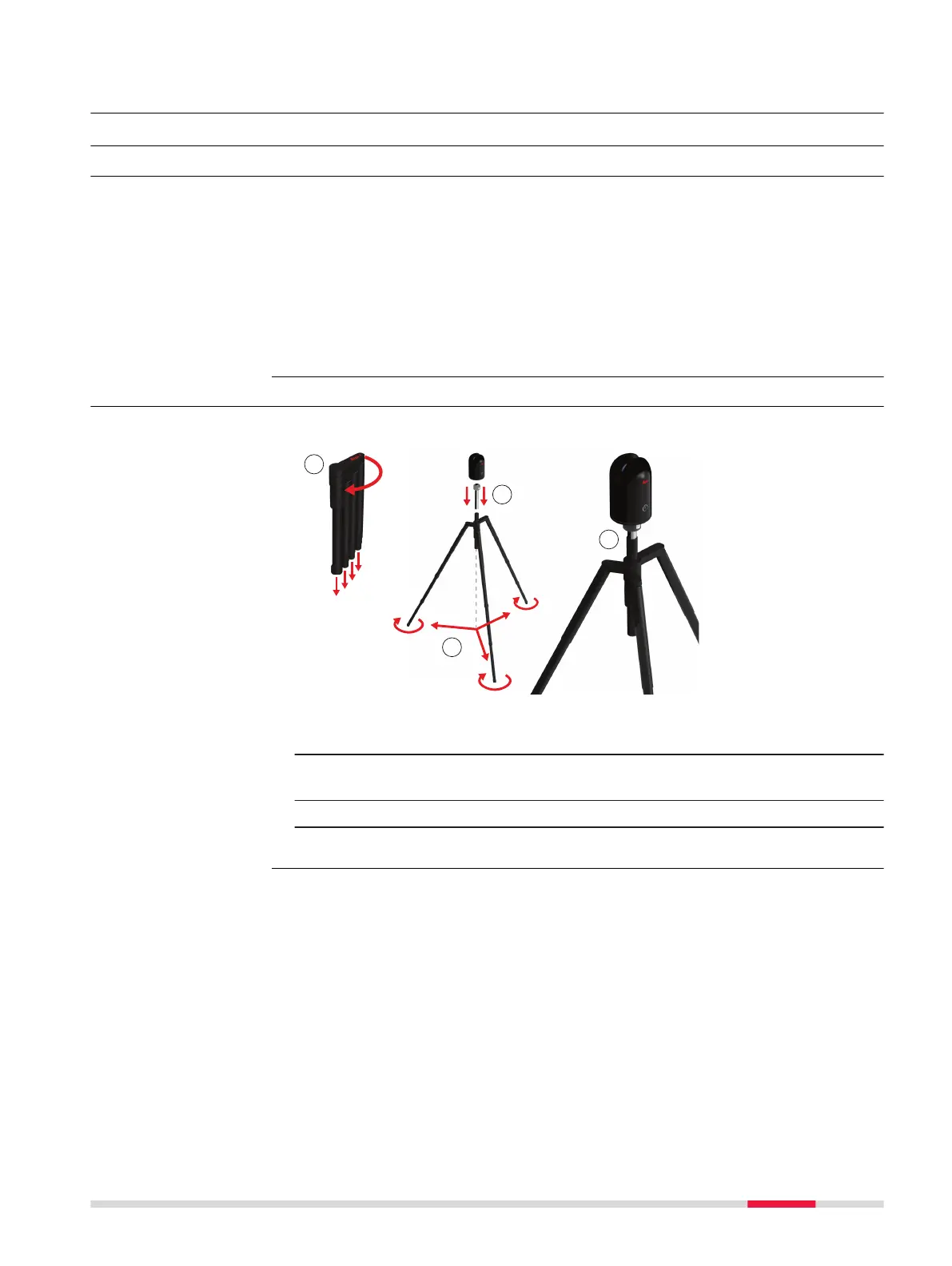

1. Unfold the tripod and extend the tripod legs to allow for a comfort-
able working posture.
2. Tighten the screws of the legs and expand the legs for a stable
tripod position.
3. Place the tripod adapter on the tripod and secure it.
4. Place the instrument on the tripod adapter and secure it.
Use the tripod
BLK360 setup step-
by-step
Operation 19
