4.4 Installing the manual unload station
Fig. 15
1
2
3
4
5
3
6
7
8
9

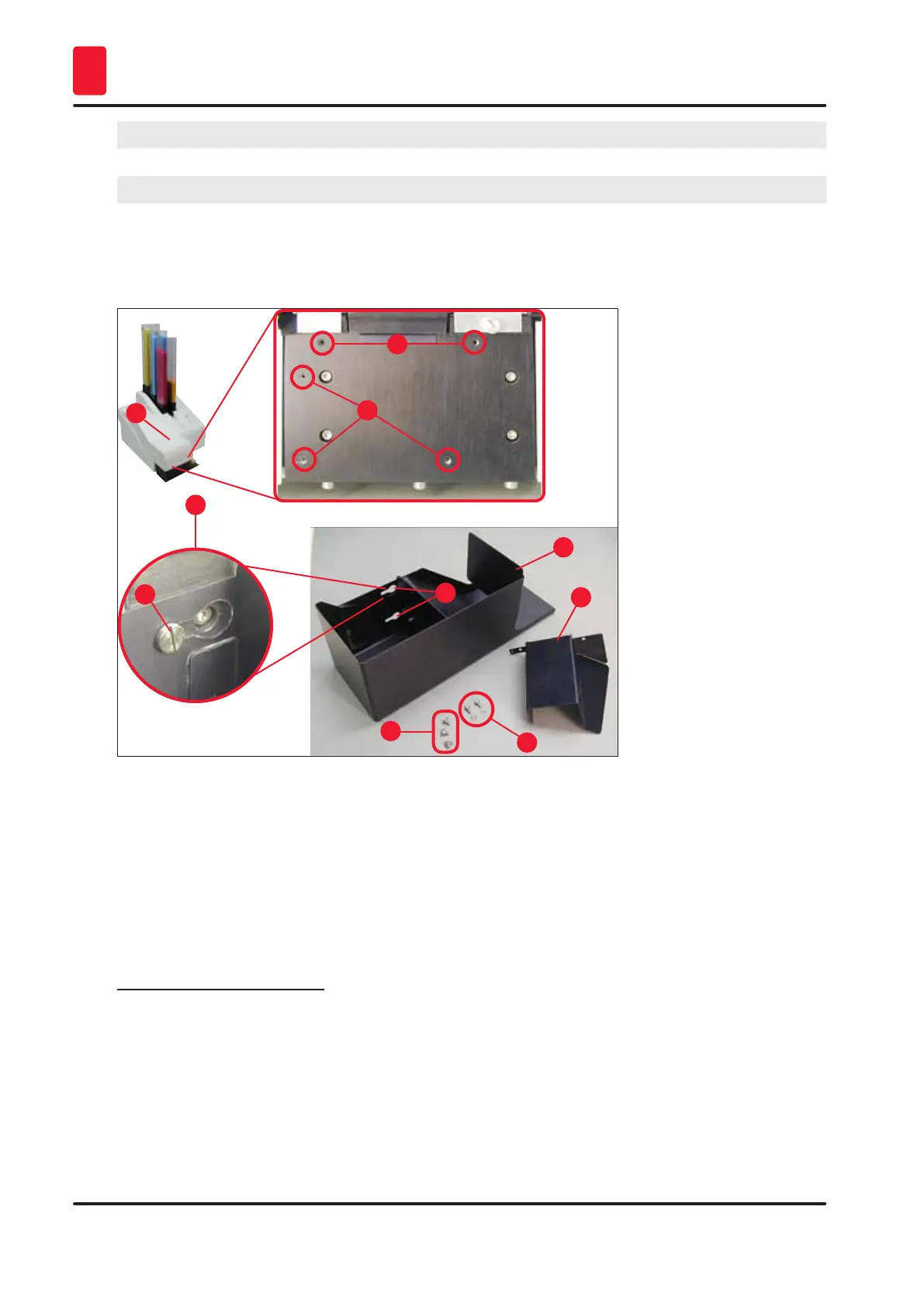

The unload station supplied consists of:
• Unload station (→ "Fig. 15-1")
• Screening plate (→ "Fig. 15-2")
• Collar screws (3 pcs.) (→ "Fig. 15-3")
• Slotted screws with washers (2 pcs.) (→ "Fig. 15-4")
Install as follows (→ "Fig. 15"):
1. Open lid (→ "Fig. 15-6").
2. There are 5 threaded holes (2 x (→ "Fig. 15-7") and 3 x (→ "Fig. 15-8")) in the installation
surface located below the reflector.
3. With a screwdriver, insert 3 collar screws (→ "Fig. 15-3") in tapped holes (→ "Fig. 15-8") as far
as they will go.
4. Then, fasten cover (→ "Fig. 15-2") in tapped holes (→ "Fig. 15-7") using the two slotted screws
and washers (→ "Fig. 15-4").
