Grade setting
process
3.4 Elevation (H.I.) Alert, Bump Alert and Smart Slope Functions
Elevation (H.I.)
Alert
After grade entry for one or both axes, the
Rugby waits for 8 seconds of no movement or
button presses before beginning the process.
The Rugby then displays the Levelling to
grade screen and automatically self-levels in
the horizontal plane, followed by readjusting
the servo mechanism to the desired grade
value.
After completion, the Rugby activates the
Slope/Bump Alert and Temperature Alert
functions (if enabled).
During this process, do not touch or
disturb the Rugby.

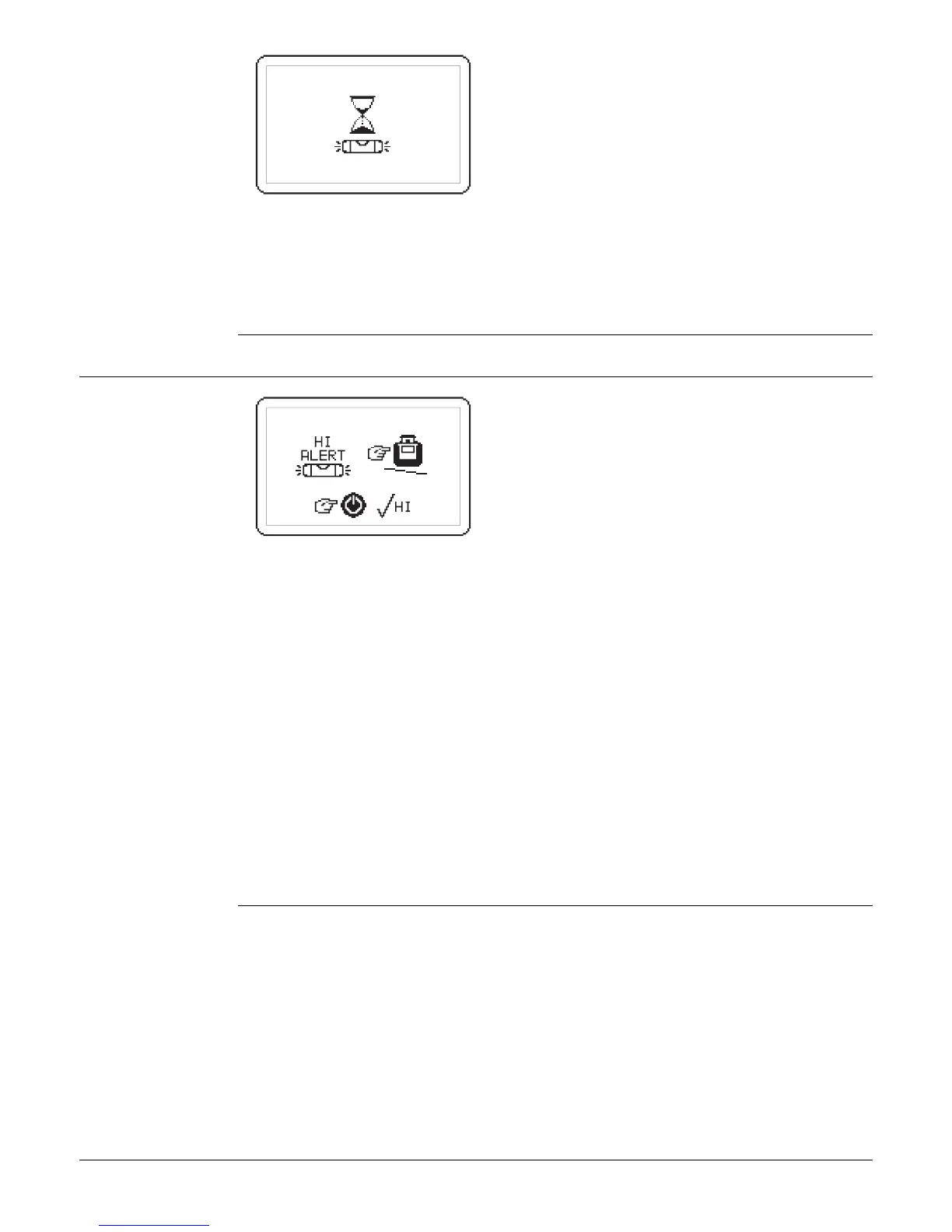

Levelling to grade screen
006044_001
The Elevation Alert or Height of Instrument
(H.I) function prevents incorrect work caused
by movement or settling of the tripod that
would cause the Rugby to level at a lower
height.
The Elevation (H.I.) Alert function becomes
active and monitors the movement of the
Rugby 30 seconds after it has completely
levelled and the head starts rotating.
If the Rugby gets disturbed, the Elevation
(H.I.) Alert screen is displayed and the Rugby
beeps rapidly.
To stop the alert, turn the Rugby off and on
again. Check the height of the laser before
beginning to work again.
The Elevation (H.I.) Alert functions in
Level mode (0.00%) and in Grade
mode when one of the axes remains
at 0.00%.
The Elevation (H.I.) Alert function
turns on automatically every time the
Rugby is turned on. It can be
enabled/disabled in the Option Menu
(enabled by default).
Elevation (H.I.) Alert screen
006045_001
