8
Check & Adjust
Sprinter 50 - 1.0.0en

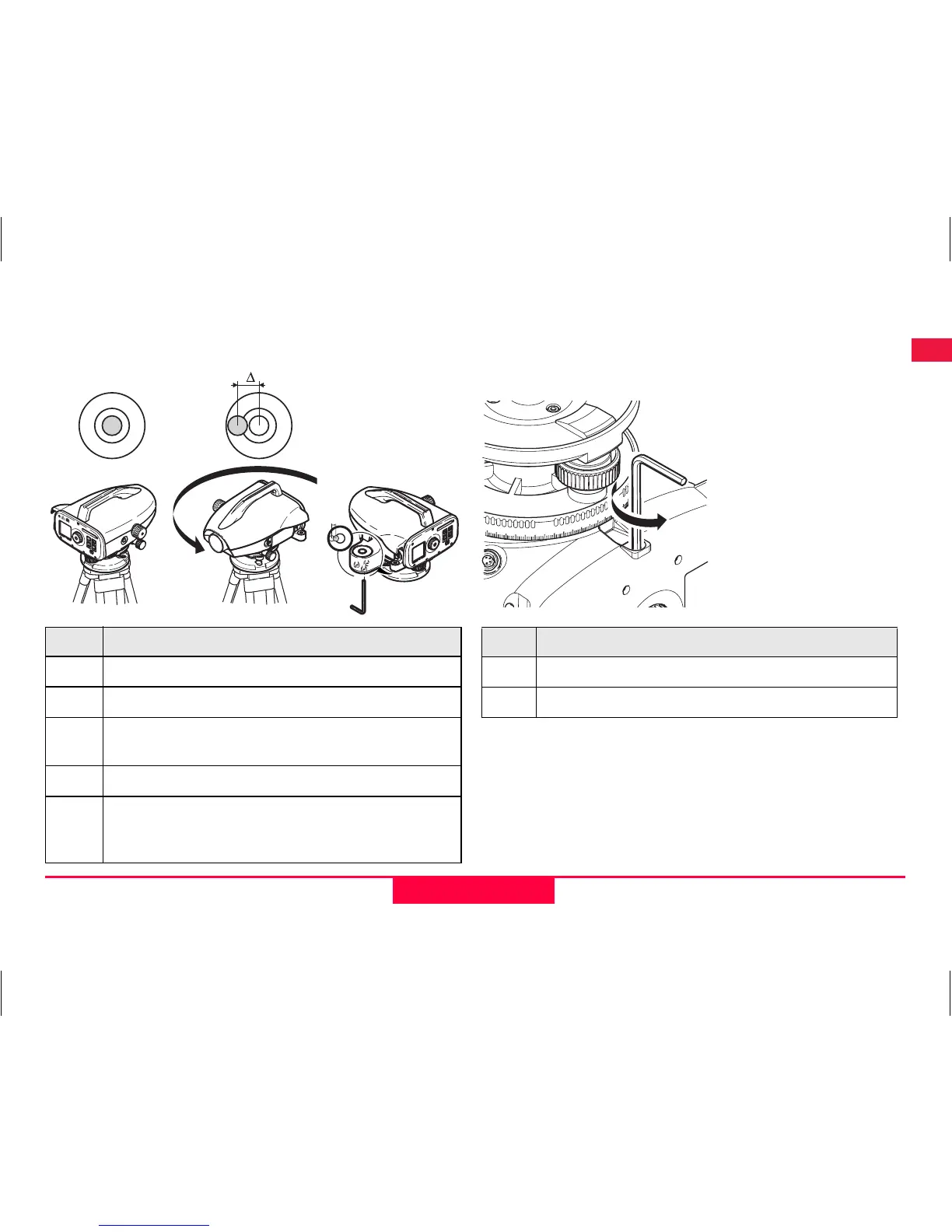

6.2 Circular level 6.3 Optical collimation / Reticle
adjustment
If the collimation error exceeds 3 mm over 60 m
distance, the collimation needs to be adjusted.
Step Description
1.
Level instrument.
2.
Turn instrument by 180°.
3.
Center bubble if it extends beyond the
centering circle.
4.
Correct half of the error with the Allen key.
)
Repeat steps 1 to 4 until the circular level
bubble is centered at any random telescope
pointing.
r_18
1.
2.
3.
4.
Step Description
1.
Turn Allen key until design value is reached.
2.
Check collimation.
