Leica TS09 - Keyboard and Screen Layout; Keyboard Layouts; Screen Elements

Keyboard
Screen

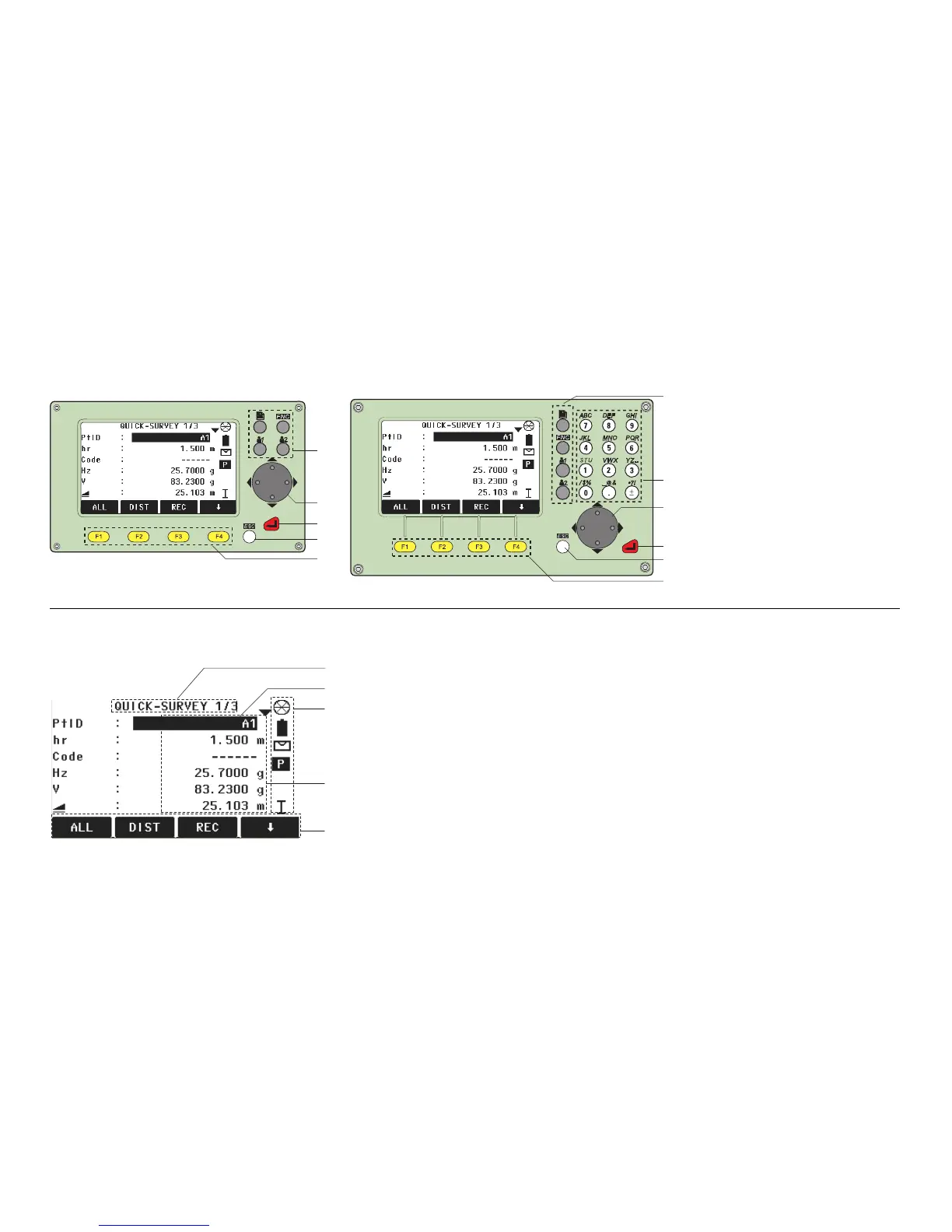

Standard keyboard Alphanumeric keyboard
a) Fixed keys
b) Navigation key
c) ENTER key
d) ESC key
e) Function keys F1 to F4
f) Alphanumeric keypad
a) Title of screen
b) Fields
c) Status icons
d) Focus in screen. Active field
e) Softkeys
S_QG_TSOX_001
a
b
c
d
e
S_QG_TSOX_002
a
f
b
c
d
e
a
b
c
d
e
S_TSOX_001
