BASIC JIG FUNCTIONS AND SCALE MODES
12
Chapter 4 D4R Pro User Guide

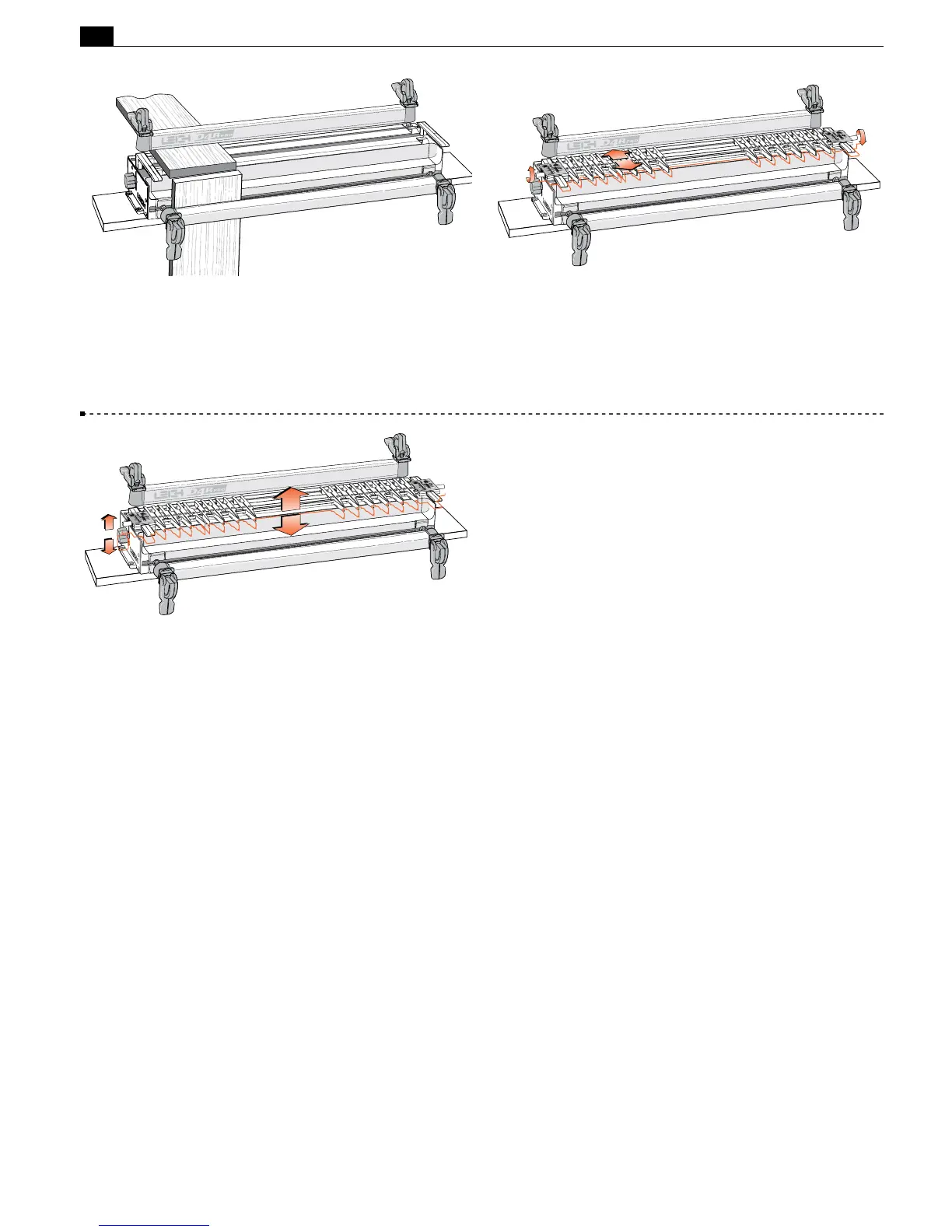

4-1 The two clamp bars hold workpieces horizontally or verti-
cally. The side stops align the boards in the correct position each
time.
4-2 The guidefinger assembly slides on to the support brackets
above the workpiece. The finger assembly is adjusted in or out
using calibrated scales on each end to suit different thicknesses of
vertical boards.
4-3 The finger assembly is raised or lowered using the support
brackets to suit different thicknesses of horizontal boards.
■
