Hints and Tips
D4R Pro - CHAPTER 17
The following pages contain valuable information that will help you get the most from your new Leigh D4R Pro
dovetail jig. Our website contains additional information and technical bulletins that further expand your jig's
capabilities.
Go to: www.leighjigs.com and click on the “Support” tab.
65

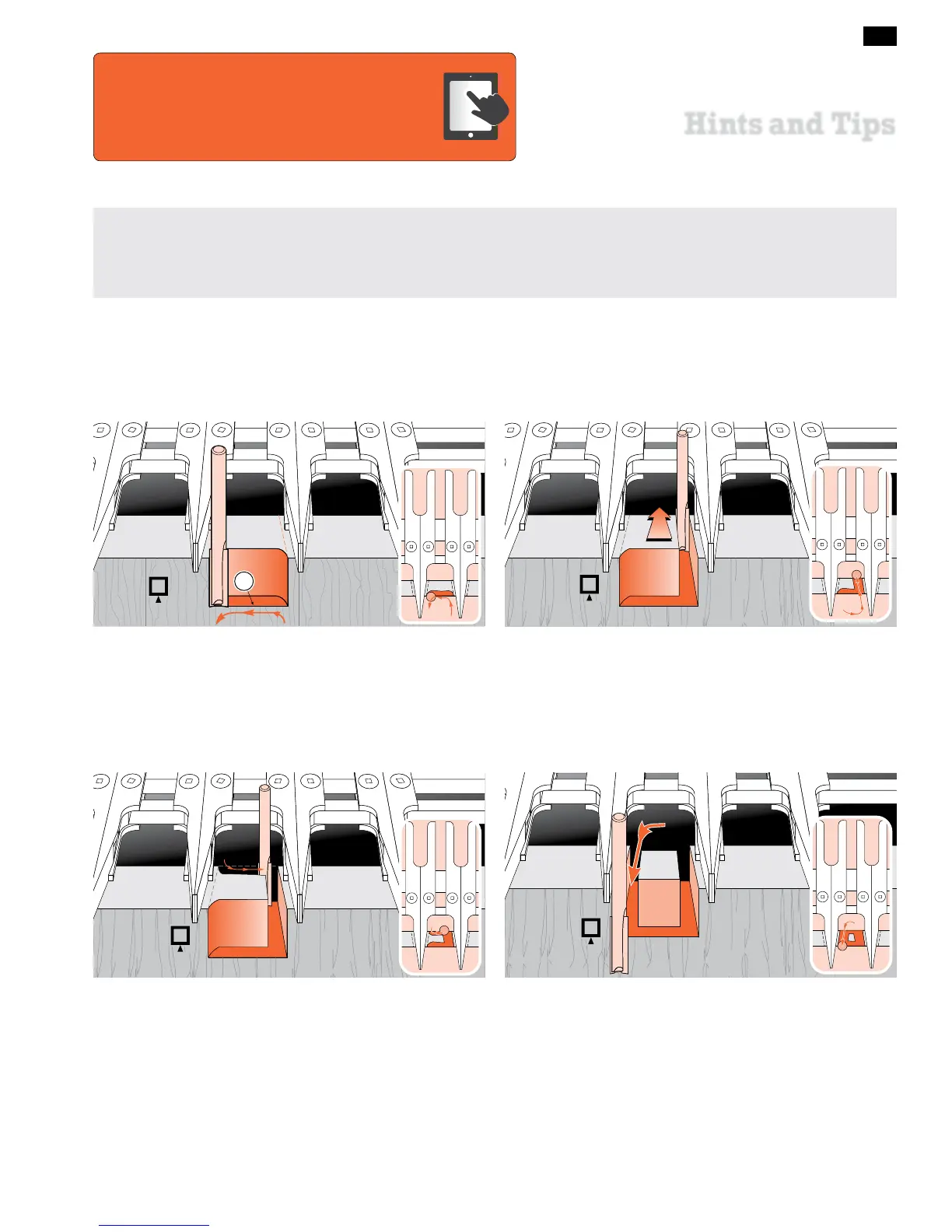

17-1 Through Dovetail Pins With the straight bit, carefully
climb-rout from right to left. Make sure you control the router
firmly when climb routing.
Climb routing produces a nice clean shoulder at
➀
.
Note: For clarity, the guidebush is not shown in this sequence.
1
Rout through on the right side.
17-3 Climb rout from left to right from the rear of the cut. Take
care to control router.
Rout back through towards you on the left side.
17-4
17-2
The online video will reduce your learning time
dramatically!
Stream to your smart phone or tablet to use in
your shop as a visual reference. Find the video in the Instructional
Videos section of the Support menu at leighjigs.com.
Watch the Online Instructional Video
