Jig Assembly, Mounting,
and Using the Clamps
D4R Pro - CHAPTER 1

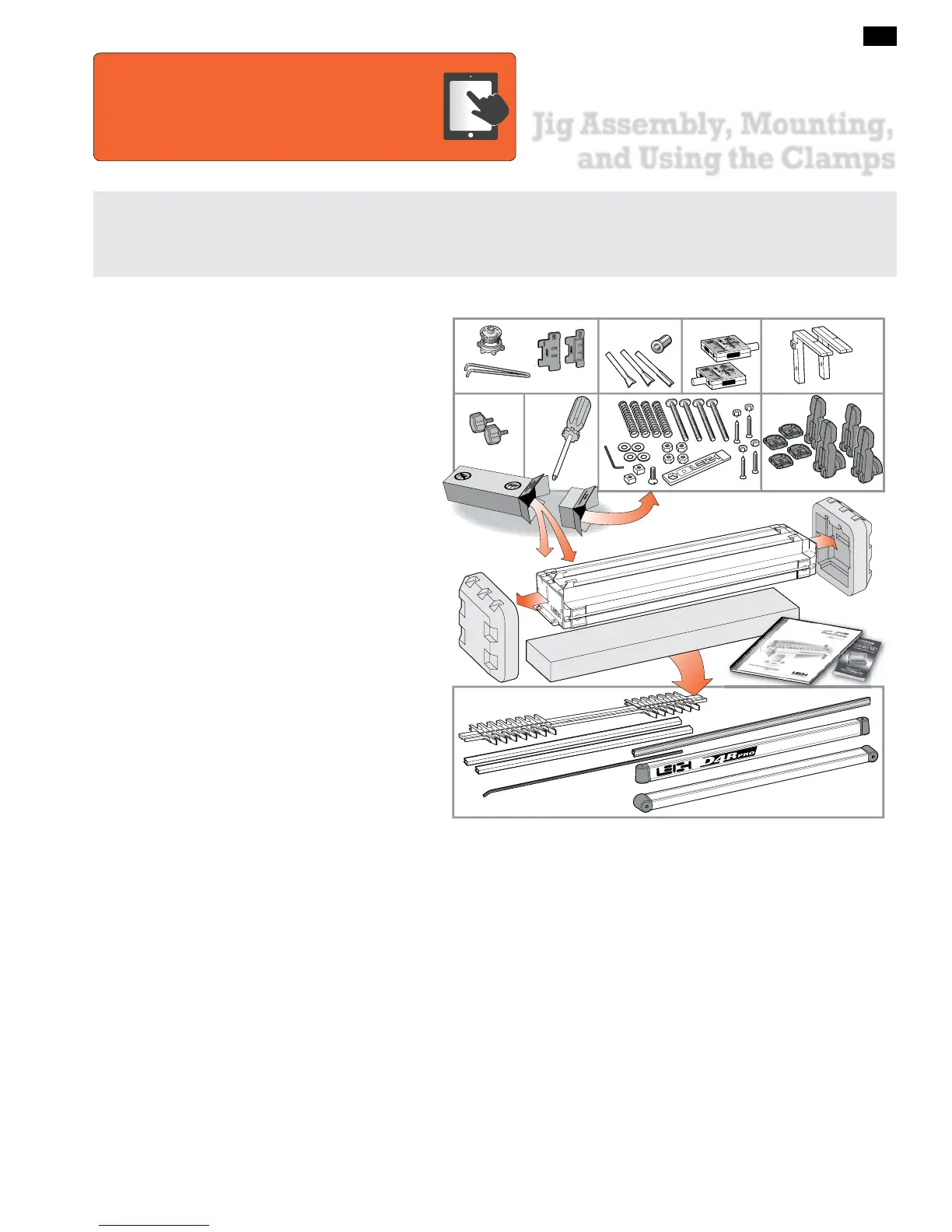

Make Sure You Have All the Parts.
Before you start to assemble your Leigh D4R Pro, check to make sure you have received all the required parts.
The small carton you removed from the end of the main
carton contains:
1. 1 Leigh e7 eBush (elliptical guide bushing) and
pin wrench, 2 spacers
2. 2 dovetail bits, 1 straight bit, 1 collet reducer
3. 2 scale assemblies
4. 2 support brackets
5. 2 support bracket knobs
6. Square-head guide finger screwdriver
7. 4 clamp springs
4 clamp T-bolts
4 flat washers
4 T-bolt nuts
2 square nuts
1
5
⁄64" hex key
1/4"-20 x ¾” Machine Screw (Accessory Attachment)
1 Leigh wrench/gauge
4 jig hold-down nuts & machine screws
1
⁄4"-20
8. 4 cam-action speed clamps
4 cam clamp step washers
…and any other small optional items you may have ordered
with your new jig. Check the packing slip for this infor-
mation.
The main carton contains:
9. 1 main jig body
1 Leigh jig user guide
1 warranty/registration card
The large inner box contains:
10. 1 finger assembly on 2 bars
D4R Pro has 26 guide fingers (13 pairs)
2 lengths bridge extrusion
1 sliding dovetail fence (cross cut fence)
1 nylon stop rod
2 clamp bars
If any items are missing from your jig, contact your
supplier or Leigh Industries immediately.
See Appendix IV, Customer Support.
Important Note
Mount your jig securely and assemble it completely before you try to
use it.
Make sure you have read and understood all the material in the Safety
section of this user guide before using the jig.
1
The online video will reduce your learning time
dramatically!
Stream to your smart phone or tablet to use in
your shop as a visual reference. Find the video in the Instructional
Videos section of the Support menu at leighjigs.com.
Watch the Online Instructional Video
