ASYMMETRIC DOVETAILS
52
Chapter 14 D4R Pro User Guide

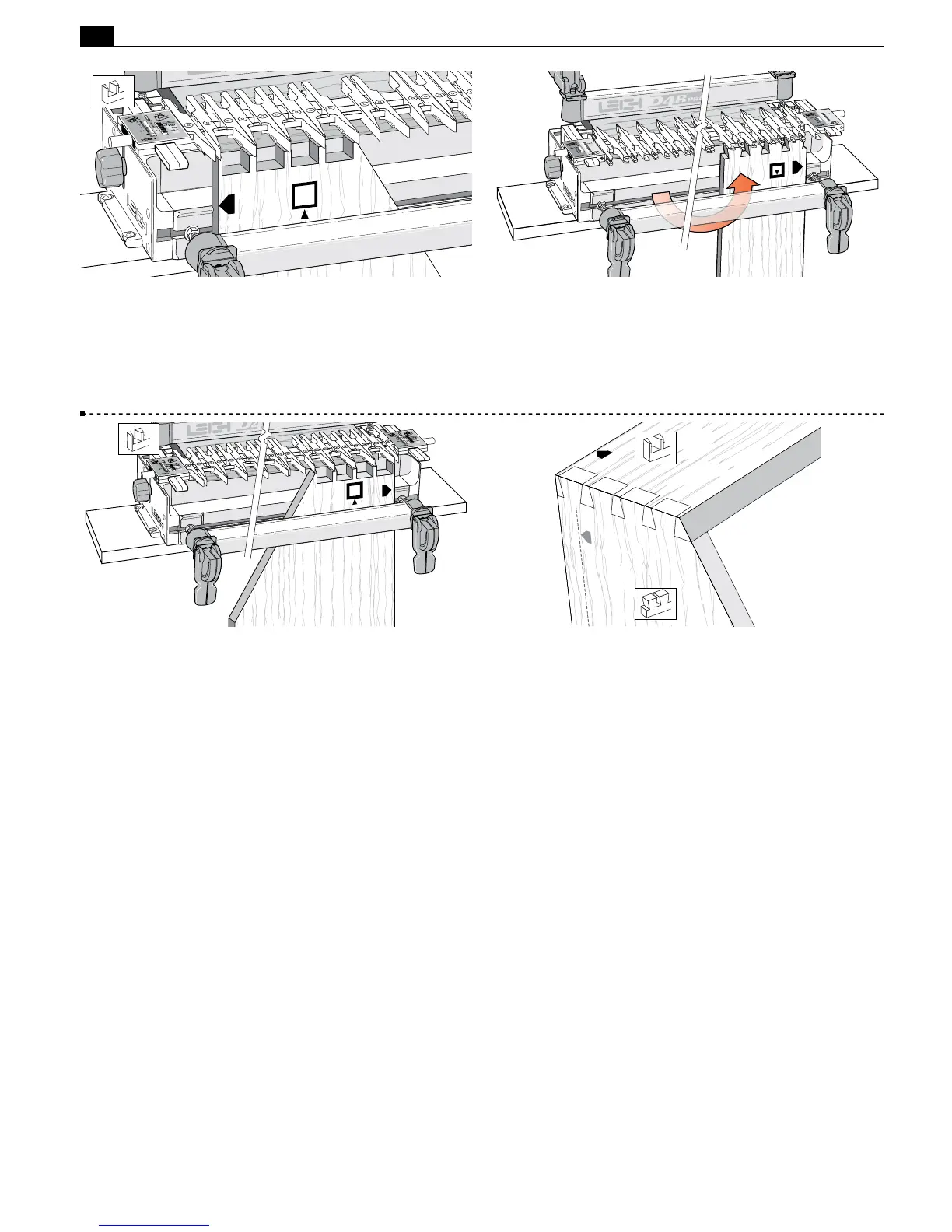

14-17 The left side of the desk goes against the left side stop
e
.
Rout the pins.
14-18 Transfer the joint layout from left to right (as for 14-8
to 14-11) and place the right end of the top tail board against the
right side stop
f
. Rout the tails.
14-19 Place the right side of desk against the right side stop
f
.
Rout the pins.
14-20 Note: If, in the slant-front desk example, the pins were in the
desk top and the tails in the sides, then all the parts would be routed
in the opposite ends of the jig to those shown above.
■
