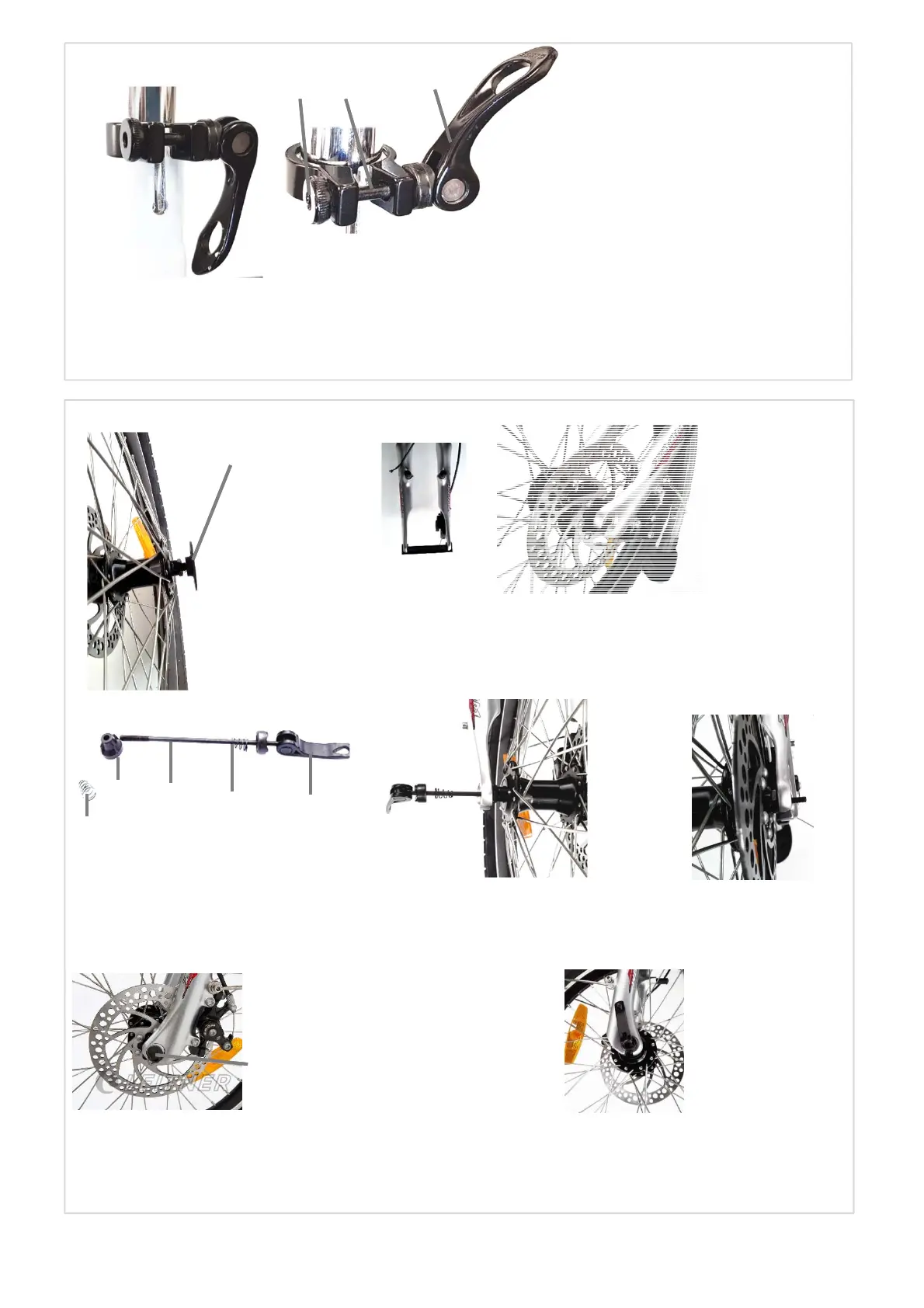

INSTALLATIONOFFRONTWHEEL
2)Removeblack
protectivebar
frombottomof
frontfork
1) Pull out black
plastic protector
from front wheel
on both sides.
Please note there
may plastic
residues inside
the axle hole. You
may have to push
the residues out
carefully when
inserting the axle.
4 )Prepare the quick release
skewer for installation of front
wheel. Remove the left spring
and the nut.
3) Carefully place
front wheel
threads fully into
fork. Make sure
the disc goes
between the two
brake pads of the
disc brake.
5)Insertskewer.Sometimestheremaybe
plasticresiduesinsidetheholewhichneedto
bepushedoutwiththeskewer.Don’tuse
extremeforce.
6)Insertskeweruntil
it’svisiblefromthe
otherside
8) Quick release lever
in closed position.
The mechanism
should emboss the
fork ends when
closed to the locked
position.
7) Insert one spring onto skewer on this
side and fasten nut onto the threads on
the end of the skewer by hand. Close
the quick release lever on the other
side. Refer to the section “Quick Release
Levers” of this manual to ensure correct
use.
FigureQ2:Quickreleasepartsonaseat
clamp.Itisthesameconceptasquick‐
releasepartsonthefrontwheel.
Lever(inopen
position)
Bolt
Nut
FigureQ1:Leverin
closedposition
How to operate quick‐release levers:
• Step 1: Close Lever (figure Q1). If lever
closes very easily (less than 12 pounds or
53 Newton) it indicates that it is loose. If
lever is very hard to close completely
(more than 45 pounds or 200 Newton),
don’t force it and go to step two.
• Step 2: Open lever. If lever was too
loose, tighten nut. If lever was too hard
to close, loosen nut. Close lever again.
• Step 3: Repeat step 2 until lever is firmly
closed and can’t move. Do NOT turn
lever like a wing‐nut to close as this will
not close it firmly.
Nut
Leftspring
Nut
Skewer
(Axle)
Right
spring
Lever
Ifthereisnotenoughgapbetweenthetwobrake
pads,movebrakepadsfurtherawayfromdisc.
Refertodiscbrakesectionforfurtherhelp.
WARNING! Quick release levers must be closed in such a position so that the lever won’t be accidentally hit while
riding causing it to open. If quick release lever is not closed safely, components of the bike can loosen while riding
causing serious injury or death.
WARNING! Before each ride make sure that the front wheel is installed safely using the quick release system. Lift the
wheel and hit it from above with your hand to make sure that it won't move and that it is stably installed into the fork.
When trying to move the wheel by hand from left to right, the wheel must not move. Refer to guide how to operate
quick release levers. Failure to do so may result in serious injury or death.
Toremoveawheelwithaquickreleaseleverfirstopentheleverthenloosenthenutbyseveralturnsandremovethe
wheelfromthefork.
QUICKRELEASELEVERS
