LELY ASTRONAUT A4 User Manual

5.1004.8641.0 B
Maintenance 5-11

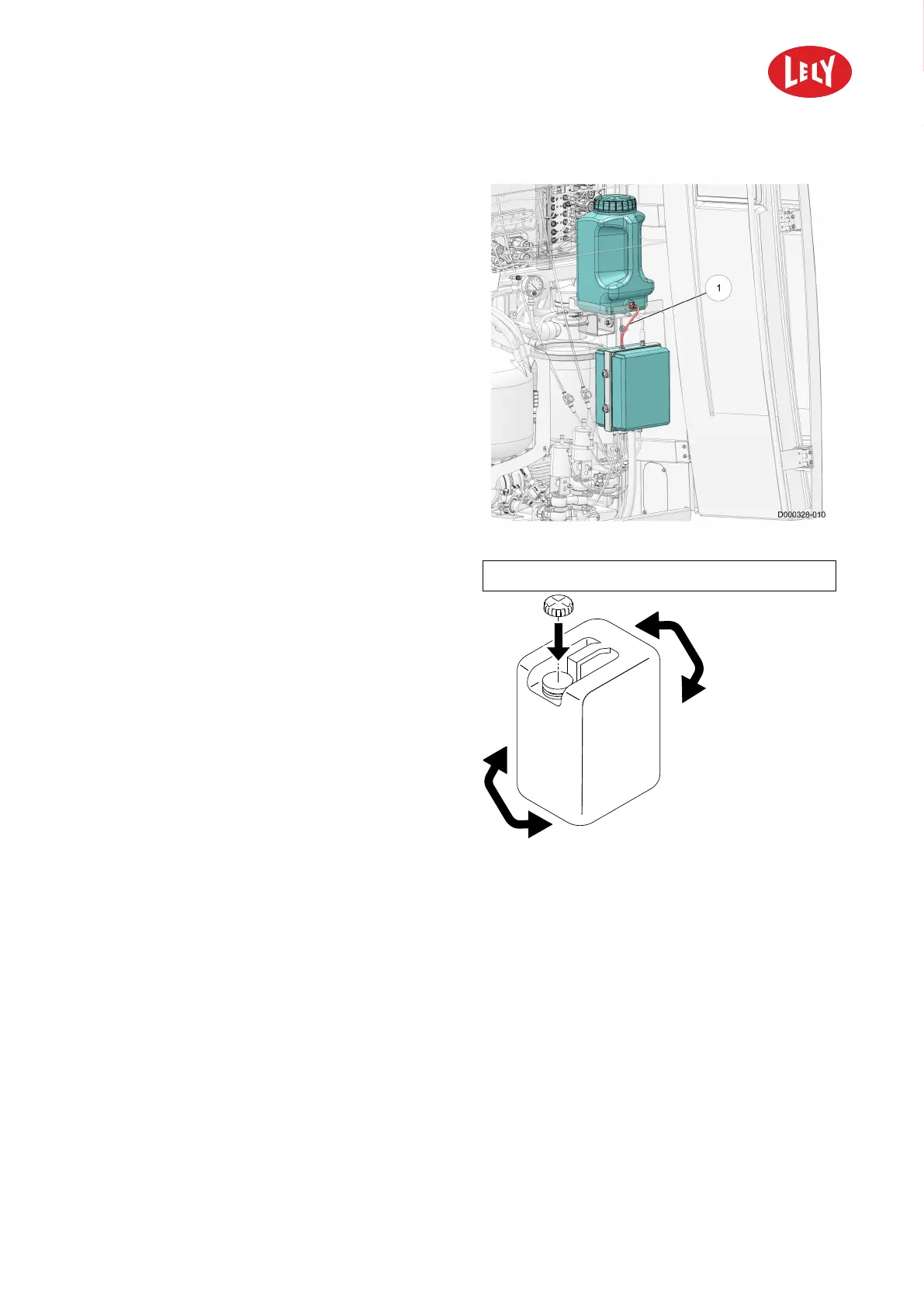

Figure 23. Reagent container
KEY: 1. Reagent supply tube
2. Disconnect the reagent supply tube (1) from the
reagent container (see figure 23 on page 5-11).
3. Remove the reagent container from the robot
unit and put it on a clean surface.
1. Remove the cap of the reagent container.
2. Clean the container with hot water.
Make sure no residue is left at the bottom of
the container.
Figure 24. Mixing container
4. Shake the mixing container for 5 seconds (see
figure 24 on page 5-11).
Make sure the solution is mixed thoroughly.
5. Remove the cap of the mixing container.
in n o vato rs in agriculture
