E-16
7.3 Intermittent maintenance
Intermittent maintenance has to be carried out:
• at the start of the mowing season;
• before prolonged storage of the machine;
• when the machine is used extensively during the season.
- Grease all points of the machine listed in § 7.2 ‘Lubrication’.
- Grease the spring-loaded locking pins of the yoke lock of the PTO
shaft.
- Check if the PTO shaft telescopes smoothly.
A damaged PTO shaft may cause excessive wear and tear to the
machine and tractor.

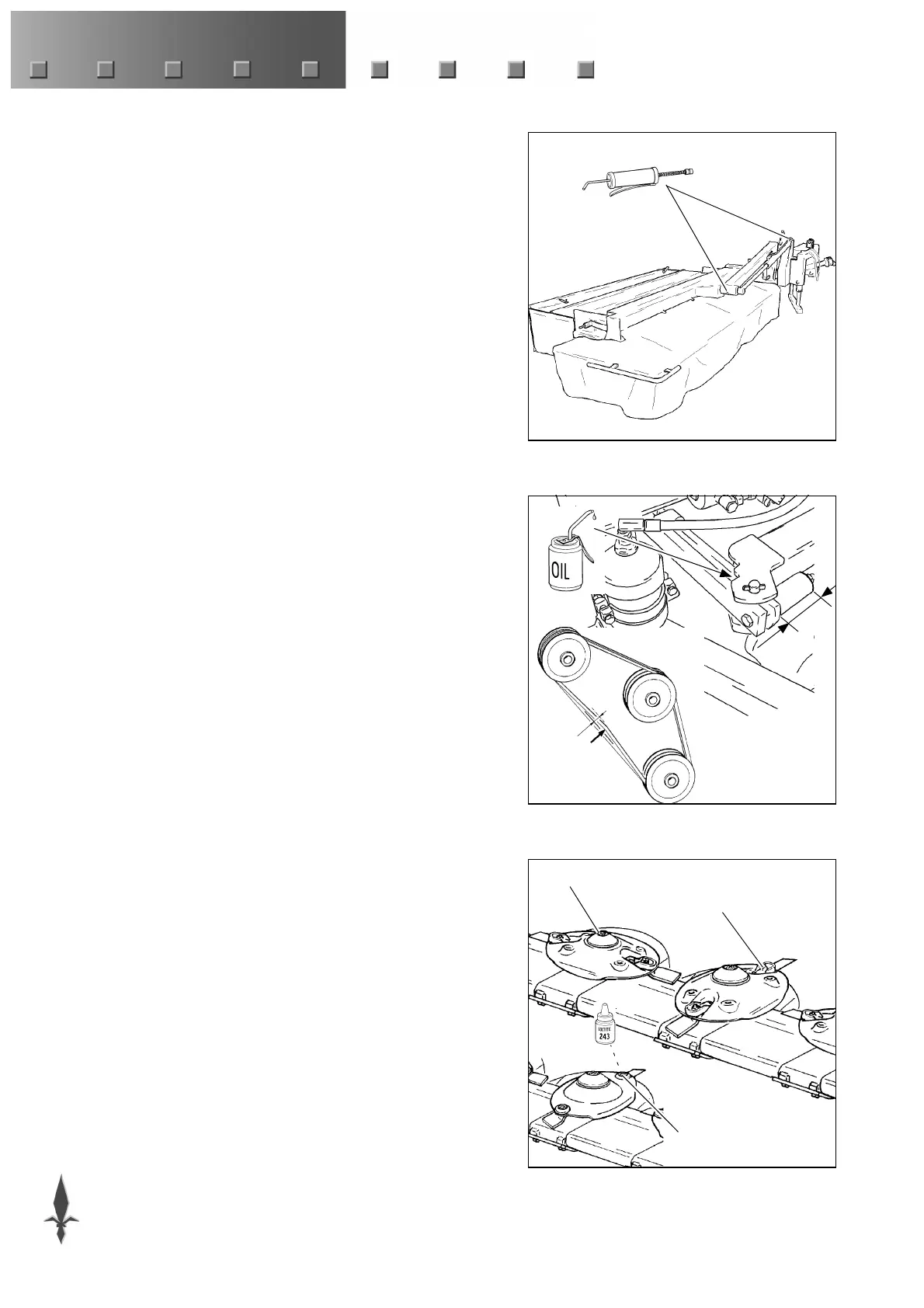

- Check correct pretension of 160 mm of the spring of the
breakback device (fig. 21).
The SPLENDIMO 320 MC mower has, in lieu of the spring, a
rubber block which needs to be compressed up to a length of
95 mm.
- Check the V-belts for correct tension.
Dismount the V-belt housing. The tension should be such that
each V-belt can be pushed in, between the pulleys, approximately
10 mm by applying a force of 70 N (7 kg) (fig. 21).
It is recommended to depressurize the V-belts if the machine will
remain out of operation for a longer period of time.
- Check the condition of wear plates, mower discs and knives.
(Replacement of knives: see § 7.4.).
- Check the knife bolts for tightness (fig. 22).
Type “N”: Torque 50-60 Nm (5-6 kgm).
Type “S”: Lock bolts with Loctite 243 or use new bolts and
locking agent.
The torque is 50-60 Nm (5-6 kgm).
- Check the mower discs for tightness (fig. 21). Torque: 150 - 250
Nm (15-25 kgm). The split pin locking the castellated nut is not
allowed to protrude above the pressure piece.
Tip: it is not allowed to turn the nut back; keep turning until the
split pin can be fitted.
- Check the machine for damage and flaws.
- Check the gearboxes for oil leakage.
(Refreshment of oil: see § 7.5.)
20
40h
21
95 mm
10 mm
70 N (7 kg)
40h
22
150-250 Nm (15-25 kgm)
50-60 Nm (5-6 kgm)
50-60 Nm (5-6 kgm)
“N”
“S”
