Connector cables
Connector cables

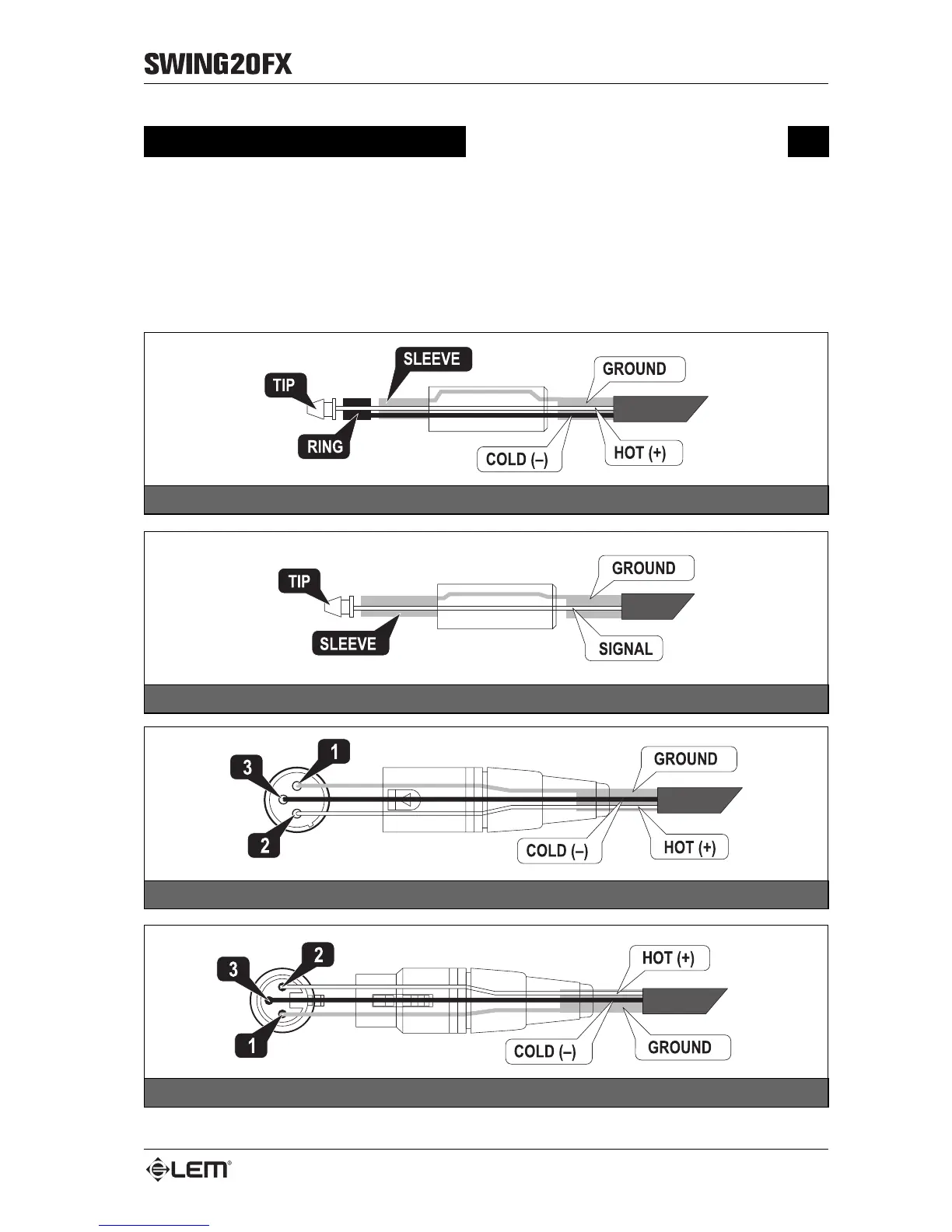

The following are wiring diagrams for the connectors used with the SWING mixers. Take care of the connector
cables, always holding them by the connectors and avoiding pulling the wire and avoid knots and twists when
coiling them: this gives the advantage of increasing their life and reliability, which is always to your advantage.
Periodically check that your cables are in good condition and are correctly wired and that all their contacts are
perfect: a great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using
unsuitable or faulty cables.
UNBALANCED JACK connector
BALANCED JACK connector
BALANCED XLR-M connector
BALANCED XLR-F connector
