Lennox 16ACX Series User Manual

Page 3

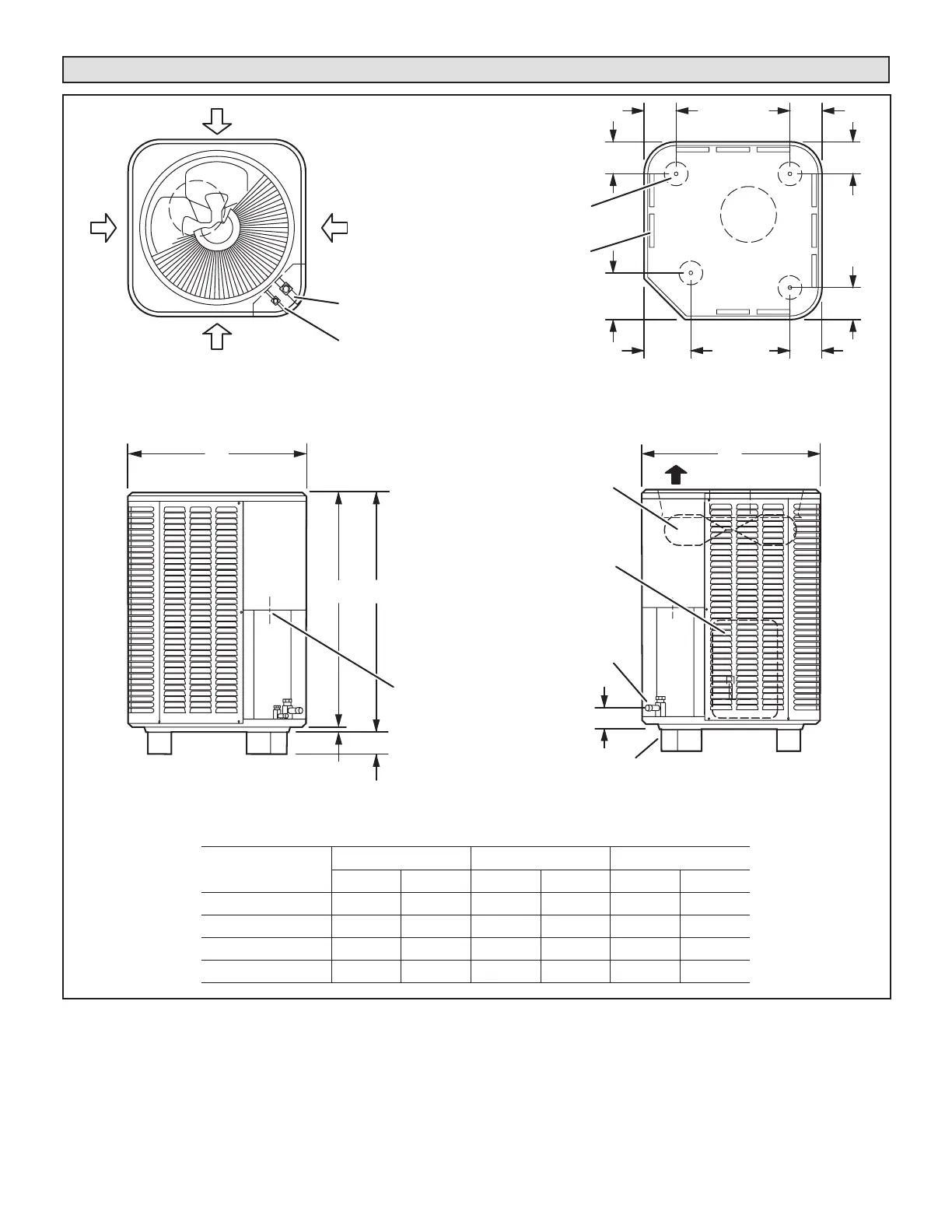

Dimensions
SUCTION AND
C
SIDE VIEW
DISCHARGE AIR
SIDE VIEW
A
B
A
LIQUID LINE
CONNECTION
OUTDOOR
COIL FAN
COMPRESSOR
OPTIONAL UNIT
STANDOFF KIT (4)
(FIELD INSTALLED)
4-3/8
INLET
AIR
INLET
AIR
TOP VIEW
INLETAIR
INLETAIR
SUCTION LINE
CONNECTION
LIQUID LINE
CONNECTION
6-3/8
(162)
TOP VIEW BASE SECTION
COMPRESSOR
COIL DRAIN OUTLETS
(Around perimeter of base)
OPTIONAL UNIT
STAND-OFF KIT (4)
(Field Installed)
(111)
4-3/8
4-3/8
4-3/8
4-3/8
6-3/8
(162)
(111)
(111)
(111
(
)1
11)
4-3/8
(111)
2 (51)
3/4 (19)
2-3/4 (70)
ELECTRICAL
INLETS
Model
ABC
inches mm inchesmminchesmm
16ACX-024 28-1/4 718 43-1/41099 42-1/4 1073
16ACX-036 28-1/4 718 29-1/4743 28-1/2 724
16ACX-048 28-1/4 718 37-1/4 94636-1/2927
16ACX-060 32-1/4 819 43-1/4 1099 42-1/4 1073

Lennox 16ACX Series Specifications

General

Brand	Lennox
Model	16ACX Series
Category	Heat Pump
Language	English
