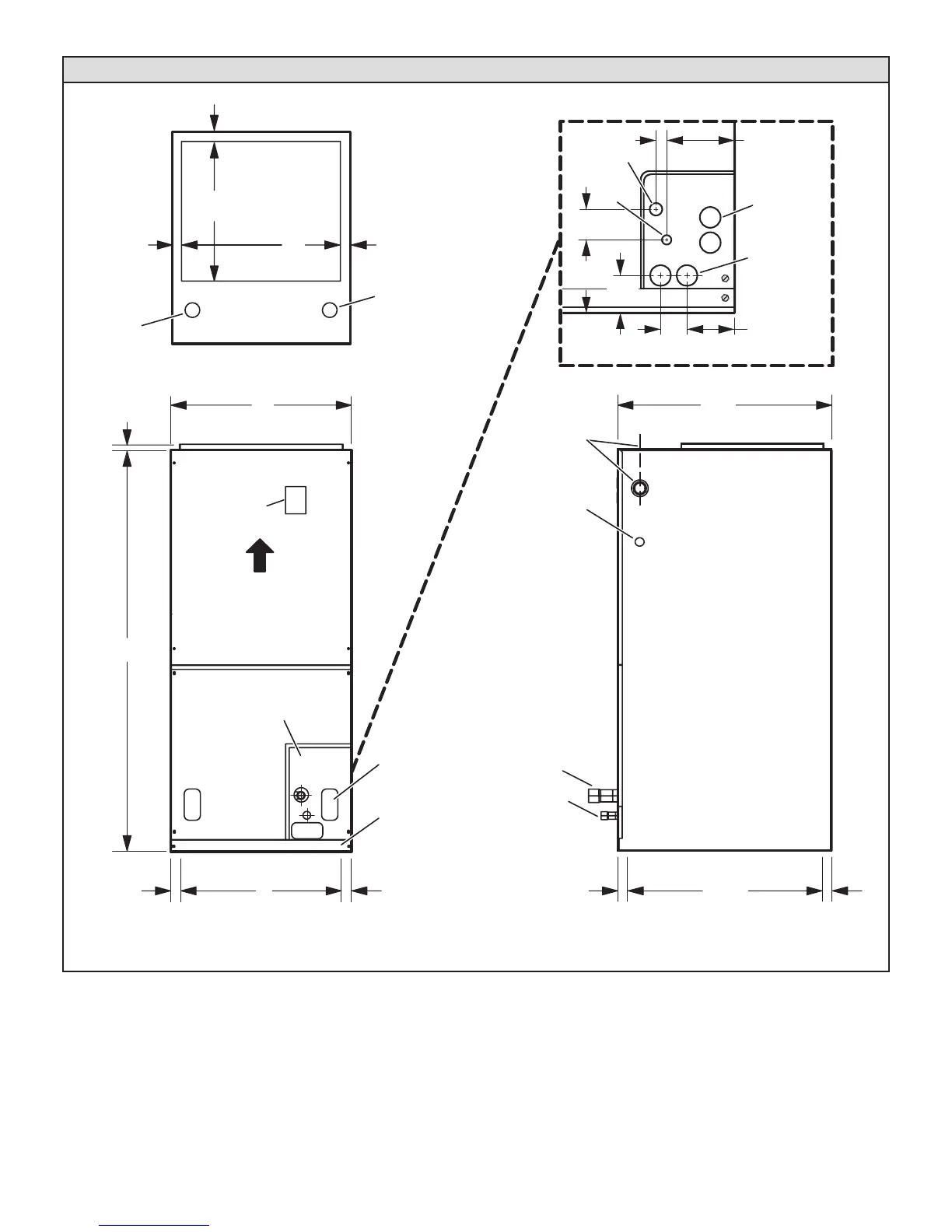

CBA25UH Unit Dimensions – Upow – Inches (mm)
A
B
FRONT VIEW SIDE VIEW
LINE VOLTAGE
INLETS
(Top and Right Side)
LOW VOLTAGE
INLETS
(Either Side)
SUCTION
LINE
LIQUID
LINE
FILTER
ACCESS
3/4
(19)
AIR FLOW
CIRCUIT
BREAKER
COVER
D
1-1/8
(29)
1/2
(13)
C
LINE VOLTAGE
INLETS
(Top and Left Side)
LOW VOLTAGE
INLETS
(Top and Right Side)
1 (25)
SUPPLY AIR
OPENING
TOP VIEW
OPENING
OPENING
1 (25)
1 (25)
1-1/8
(29)
1-1/
8
(29)
20-3/8
(518)
22
(559)
14-1/2
(368)
DETAIL OF PIPING PLATE
LIQUID
LINE
CONDENSATE
DRAINS (2)
(Horizontal)
1-3/4
(44)
3/4 (19)
2-3/4
(70)
3-1/2
(89)
PIPING
PLATE
4-3/4
(121)
4-3/8
(111)
2-3/8
(60)
CONDENSATE
DRAINS (2)
(Upflow and
Downflow)
SUCTION
LINE
CONDENSATE DRAIN
PIPING PLATE (3)
(2-1/4 x 3-3/4)

Lennox CBA25UH Specifications

General

Type	Air Handler
Brand	Lennox
Model	CBA25UH
Refrigerant	R-410A
Nominal Cooling Capacity	1.5 to 5 tons
Airflow	Up to 2000 CFM
Cabinet Material	Galvanized Steel
Width	21 inches
Motor Type	PSC
Warranty	5-Year Limited Warranty on Covered Components
Voltage	208/230V
Weight	Variable
Energy Efficiency	High
