0906-E
58

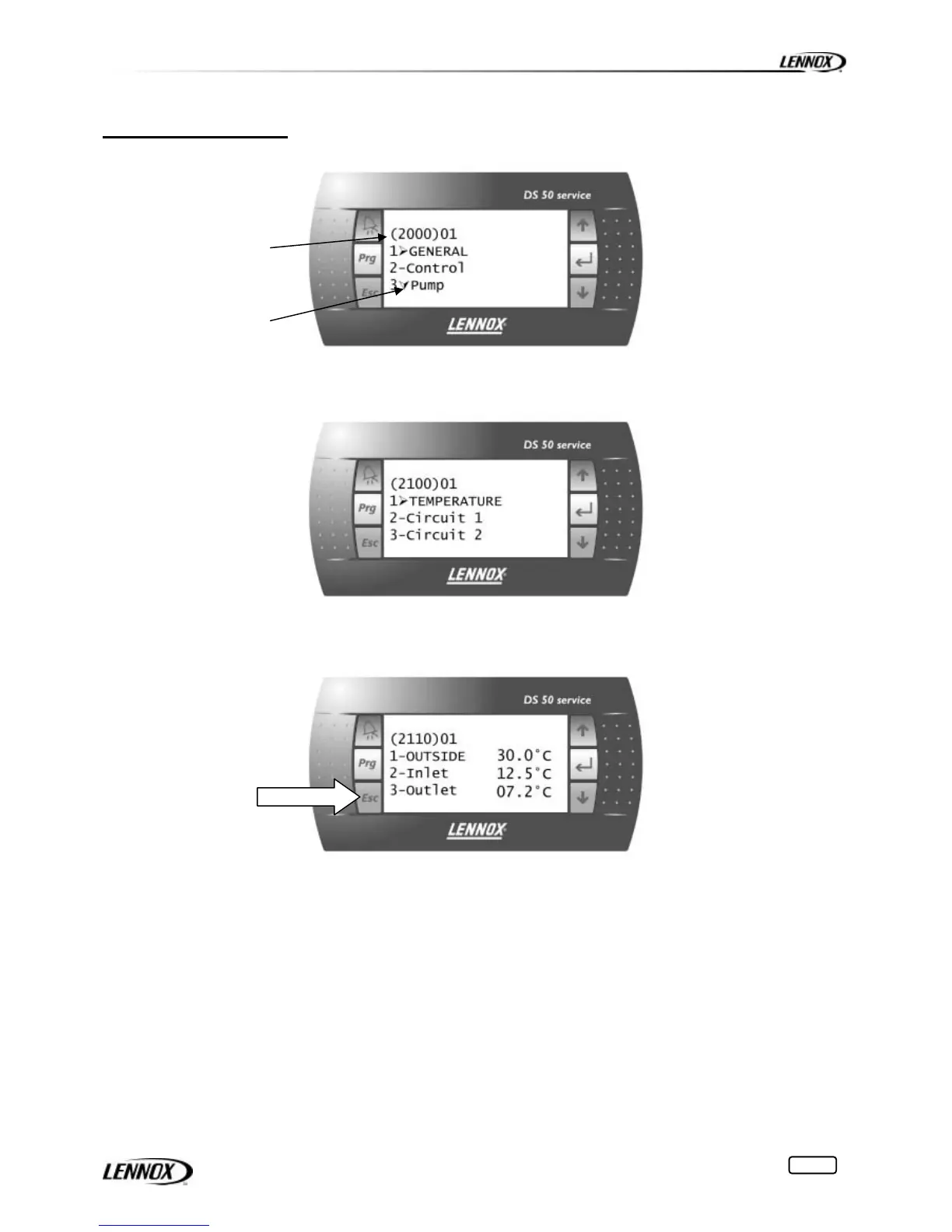

Sub-menu Data (2000)
If the menu “GENERAL” is selected, the controller then displays a second level sub-menu.
By selecting the item TEMPERATURE and pressing return, a third level page is displayed as shown bellow:
Pressing “ESC” at any time sends you back one level up the menu tree. In the example shown above “ESC”
must be pressed 3 times to go back to the main menu (0000)
Pressing “ESC” will invalidate any changes made to a value in a setting page.
Menu Reference
Indicates the menu below
3 x
To Next Page
