KP07 VDU CONSOLE

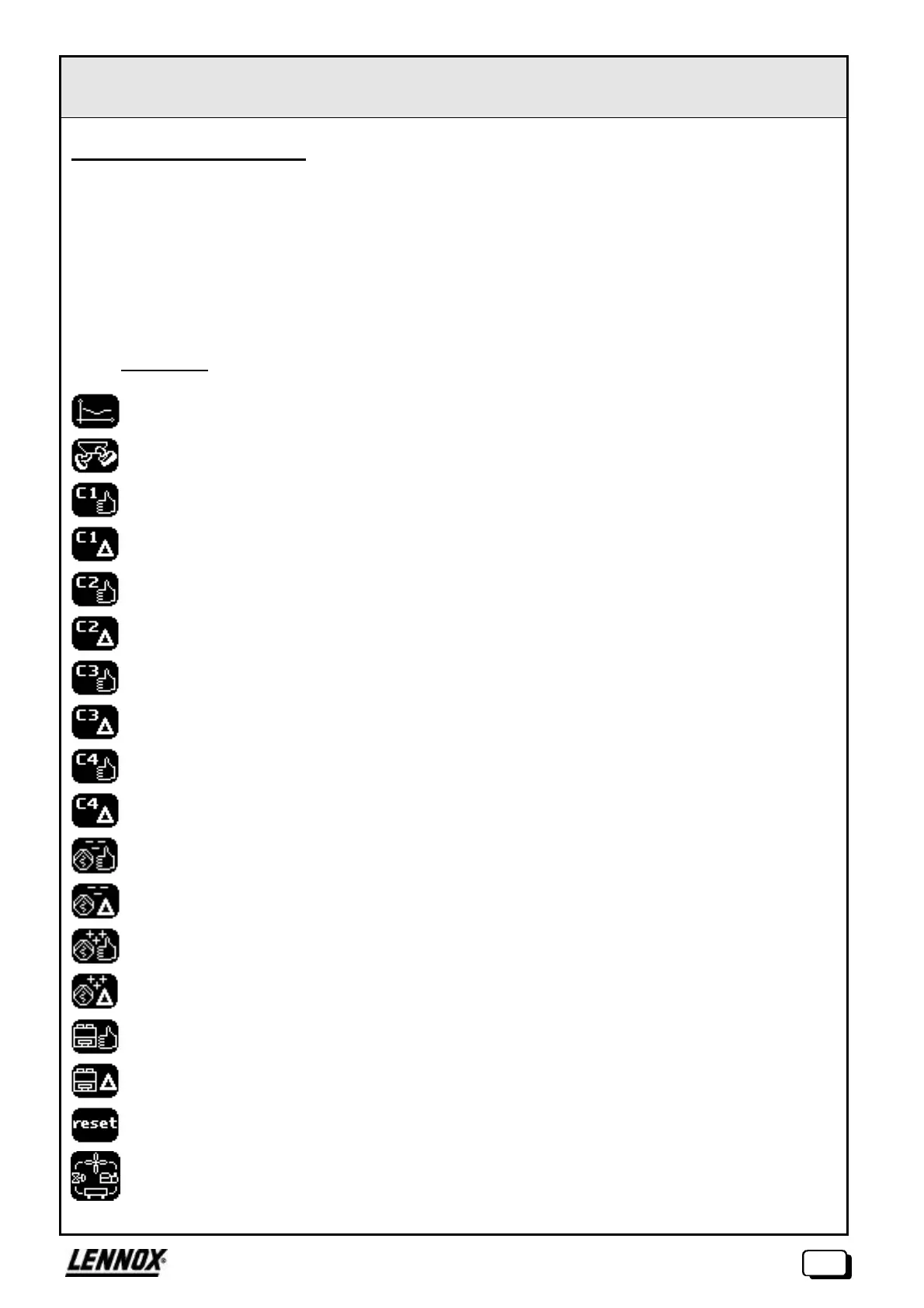

VII. GLOSSARY OF ICONS
Icons are classed in 6 categories:
1. Keys
2. Screen headings
3. Identification of components
4. Operating states
5. Faults
6. On / off settings and instructions
IV.1. Keys
Access to the temperature curve for water output from machine.
Access to operating states for refrigeration circuits, pumps and machine
Access to operating state for refrigeration circuit no.1 (no faults are reported on the circuit
Access to operating state for refrigeration circuit no.1 (there is a fault on the circuit).
Access to operating state for refrigeration circuit no.2 (no faults are reported on the circuit).
Access to operating state for refrigeration circuit no.2 (there is a fault on the circuit).
Access to operating state for refrigeration circuit no.3 (no faults are reported on the circuit).
Access to operating state for refrigeration circuit no.3 (there is a fault on the circuit).
Access to operating state for refrigeration circuit no.4 (no faults are reported on the circuit).
Access to operating state for refrigeration circuit no.4 (there is a fault on the circuit).
Access to operating state for chilled water pumps (no faults are reported on the pumps).
Access to operating state for hot water pumps (no faults are reported on the pumps).
Access to operating state for hot water pumps (there is a fault on the pumps).
Access to operating state for hot water pumps (there is a fault on the pumps).
Access to operating state for machine (there is a fault on the machine).
Access to operating state for machine (there is a fault on the machine).
Reset faults and fault counters to zero.
Access to refrigeration diagram for selected circuit.
To Next Page
