EXTENSION 8 RELAYS ØØ KP08
The KP08 card carries 8 outputs on changeover relays (16A/250Vac).
It is possible to connect up to 4 KP08 cards to the same CPU, offering a maximum number of 8 + 4 x 8 = 40
discrete outputs.
Key :
J1 to J8: 3 point removable pin connector , pitch 5.08 for double-throw contacts for relays RL1 to RL8
J9, J10: RJ45 connector for I²C Bus
LD1: LED presence of power from KP01
LD2: LED presence of I²C dialogue
SW1, SW2: Switches for configuration of the card address
The position of jumpers for each configuration is marked on the card.
PT1: VRF
PT2: Earth
PT3: Vcc (+5V)

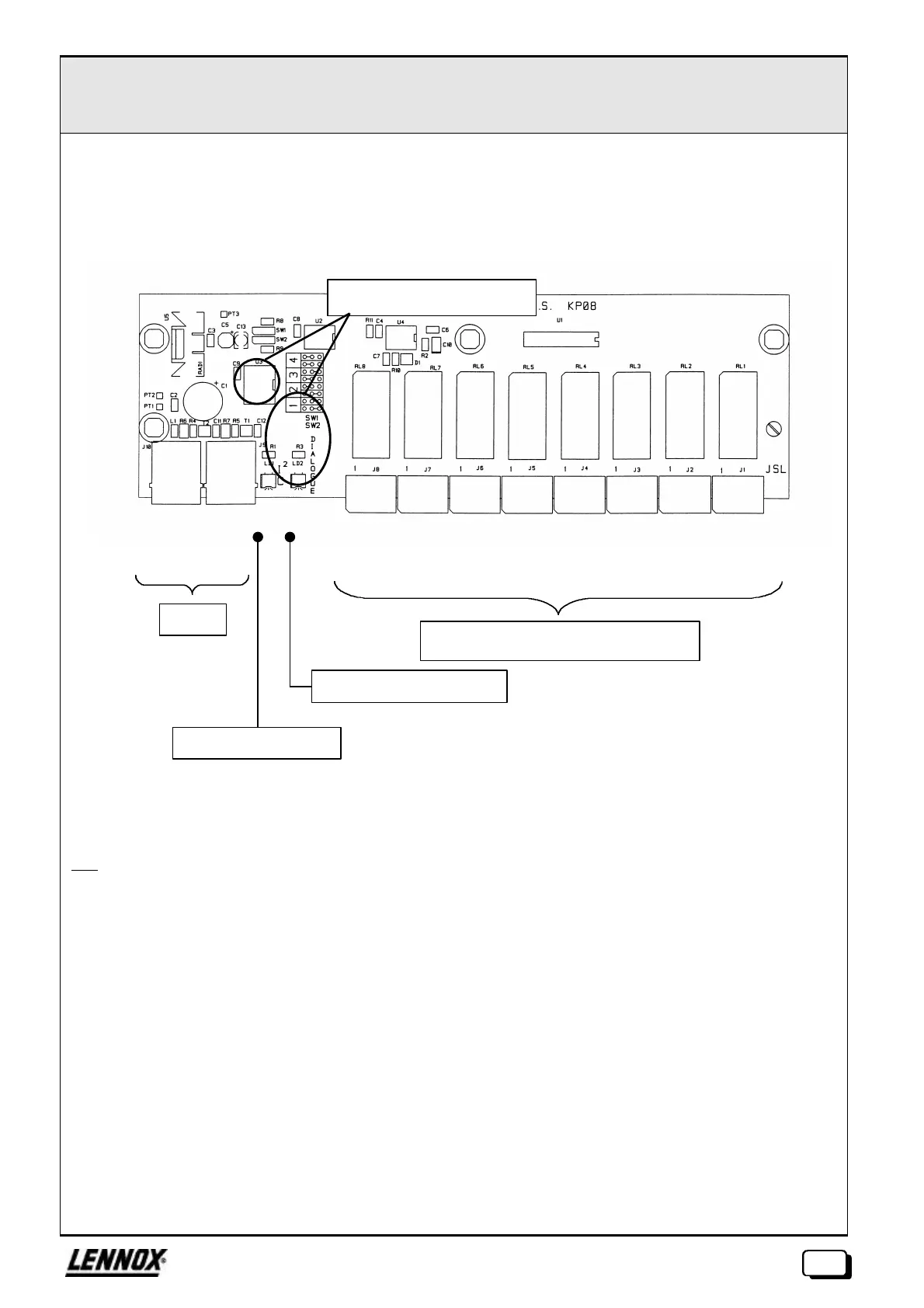

Addressing configuration
LED presence I²C dialogue
LED power on
8 outputs changeover relays
I²C Bus
