CLIMATIC CARD ØØ KP01
¶ General presentation
The CLIMATIC consists of a main KP01 microcontroller card, with 8 analogue inputs, 8 logic inputs and 8 logic
outputs in its standard version. Two analogue outputs and a +18Vdc supply are also available as an option.
F Logic inputs are linked to hard contacts.
F Analogue inputs are linked to temperature or pressure detectors.
F Outputs are connected to control contactors (compressors, fans, etc.).
Modules can be added to the system using extension cards :
F 3 extensions - 16 logic inputs (KP03 card)
F 4 extensions - analogue output (KP04 card)
F 3 extensions - 8 analogue inputs (KP05 card)
F 4 extensions - 8 supplementary logic outputs (KP08 card)
F 2 asynchronous serial links for dialogue with:
• a micro-computer or a VDU console (1200, 2400 or 4800 baud).
• a basic digital console (KP02), and/or a VDU console with LCD display unit (KP07).
· Replacement of a KP01 card
Procedure to be followed :
F Note the values of all settings.
F Turn off the power supply to the card and change the card.
F Retrieve the EPROM from the old card and fit it to the new one (see drawing below).
F Reconnect all the connections to the CLIMATIC, referring to the wiring diagram.
F Set the battery jumper to position "on" (T) together with the various configuration jumpers.
F Turn the power supply to the card back on and enter the old settings on the new card.
Note : Never connect or disconnect the I²C connectors when the power supply to the card is on.

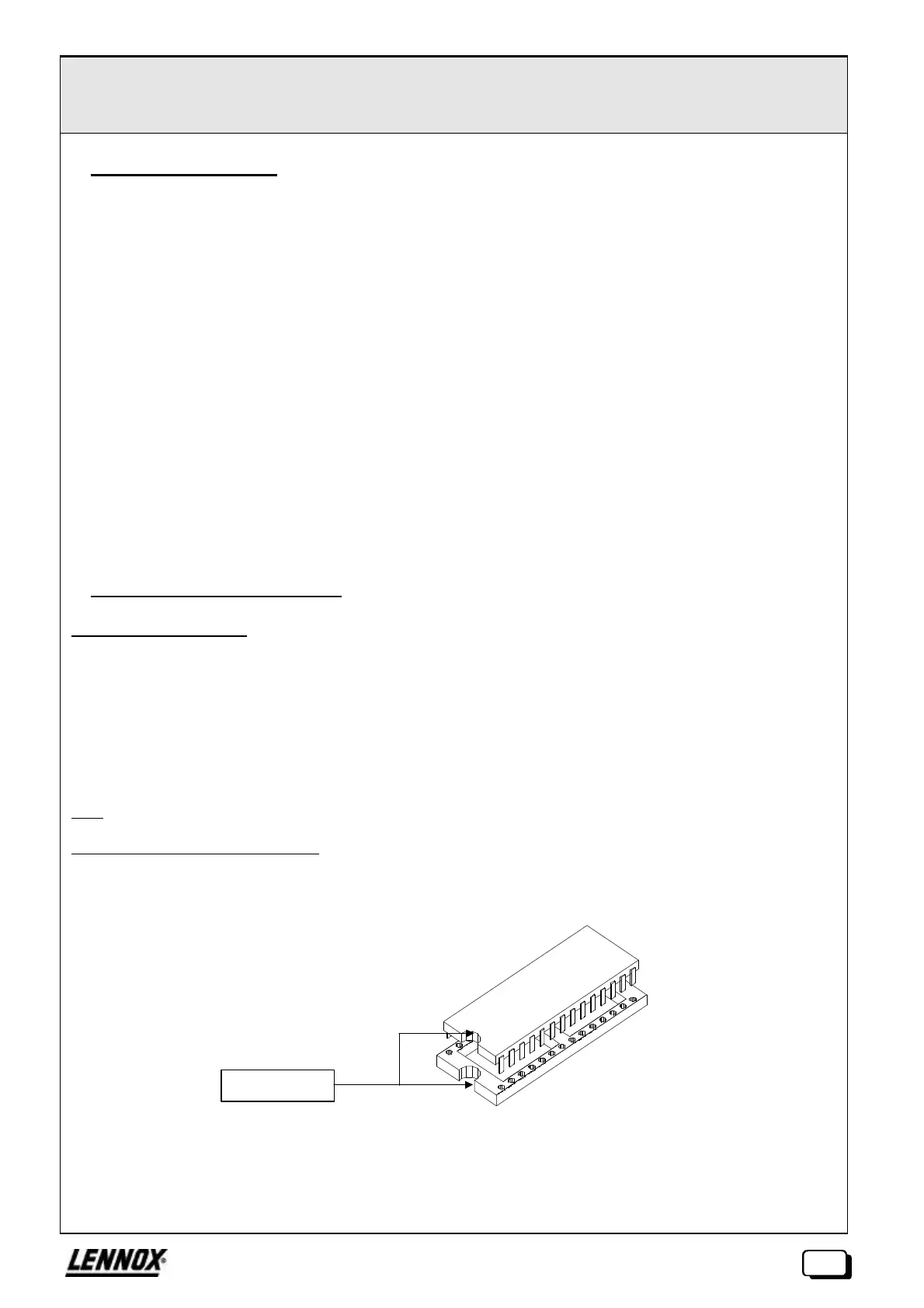

Positioning direction for the EPROM :
Keying band
