V2.2
-00
88

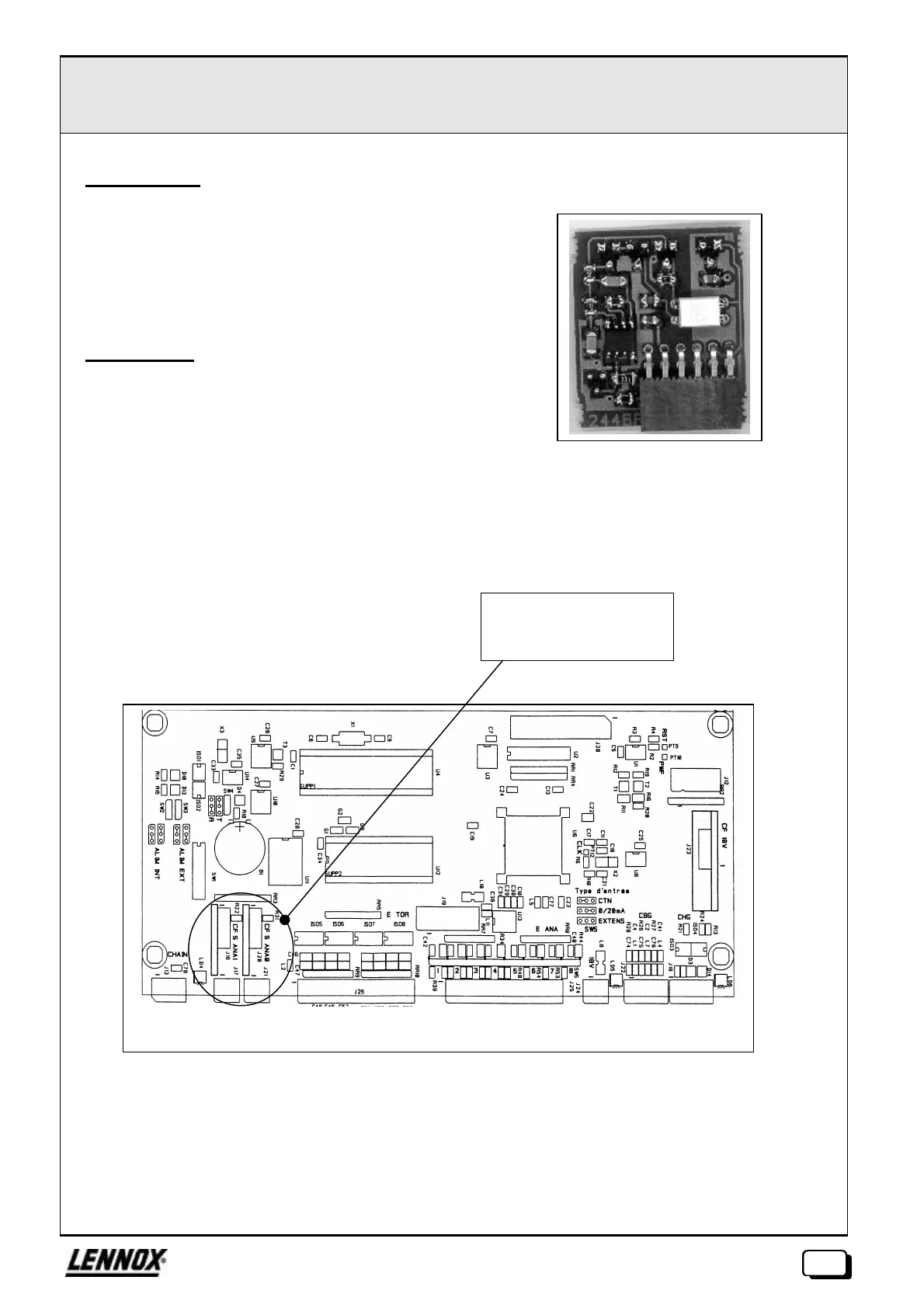

CARTE FILLE SORTIE ANALOGIQUE
Ø
Ø
KP
11
l
Presentatio
n
:
The KP11 extension is presented in the form of a small
plug-in card positioned on the main KP01unit. It supplies
analogue voltage 0-10Vdc/10mA
A CPU may receive 2 cards KP11 at the most.
l
Precaution
s
:
When installing the module, take care to comply with the
circuit orientation as printed on the main KP01 unit.
Location of modules
and output connectors
on the KP01 card
88
90
Table of Contents
Control and Regulation
3
Table of Contents
3
Idle Function
4
Control of Evaporator Pumps
5
Cold Thermostat
6
Hot Thermostat
7
Cold Regulation with Gradient
8
Hot Regulation with Gradient
9
Control of Compressors
10
Control of Capacity Reductions for Cold Regulation
11
Control of Capacity Reductions for Hot Regulation
12
Control of Electronic Expansion Valve
13
Control of Condenser Fans
14
Specific Valves for Screw Compressors
15
Machine Faults
23
Temperatures of Chilled Water Outside Range
24
Hot Water Temperatures Outside Range
25
Insufficient Flow of Chilled Water
26
Insufficient Flow of Hot Water
27
Absence of 230V Supply with Backup
28
Incorrect Sequence of Phases
29
Circuits Faults
30
Low Pressure Insufficient
31
Evaporator Freezing
32
Insufficient Superheating
33
Vacuum Succion Failure
34
Sensor or Detector Faults
35
Expansion Valve Opening Incorrect
36
Compressor Faults
37
Compressor Cut-Out Switch Tripped
38
Oil Pressure Insufficient
39
Excess High Pressure
40
Discharge Temperature too High
41
Internal Protection Tripped
42
Miscellaneous Faults
43
Inter Cpu Dialogue Interrupted
44
Insufficient Flow Established by the Pump
45
Fans Circuit Breakers Tripped
46
Pump Circuit Breaker Tripped
47
Remote Instruction Undetected
48
Temperature of Free-Cooling Outside Range
49
Dialogue between Cpu and Kp07 Interrupted
50
Electronic Card Data
79
Climatic Card Ø Kp01
80
Extension - 16 Logic Inputs Ø Kp03
84
Extension - Analogue Output Ø Kp04
85
Extension - 8 Analogue Inputs Ø Kp05
86
Extension - 8 Relays Ø Kp08
87
Extension - +18Vdc Supply Ø Kp10
88
Digital Console Ø Kp02
90
Female Card - Analogue Output Ø Kp11
90
Vdu Console Ø Kp07
92
