Features
The ComfortSense
®
7500 Series thermostat is an
electronic 7-day, universal, multi-stage, programma-
ble, touchscreen thermostat.
• supports commercial package rooftop units
• smooth set recovery starts system operation
• early to achieve setpoint at start of program period
• economizer control
• dehumidication measurement and control
• equipment maintenance reminders
• worry-free memory storage feature
• menu-driven touch-screen display
• dehumidication measurement and control
• Humiditrol
®
EDA capability
Home Screen Temperature Indicator

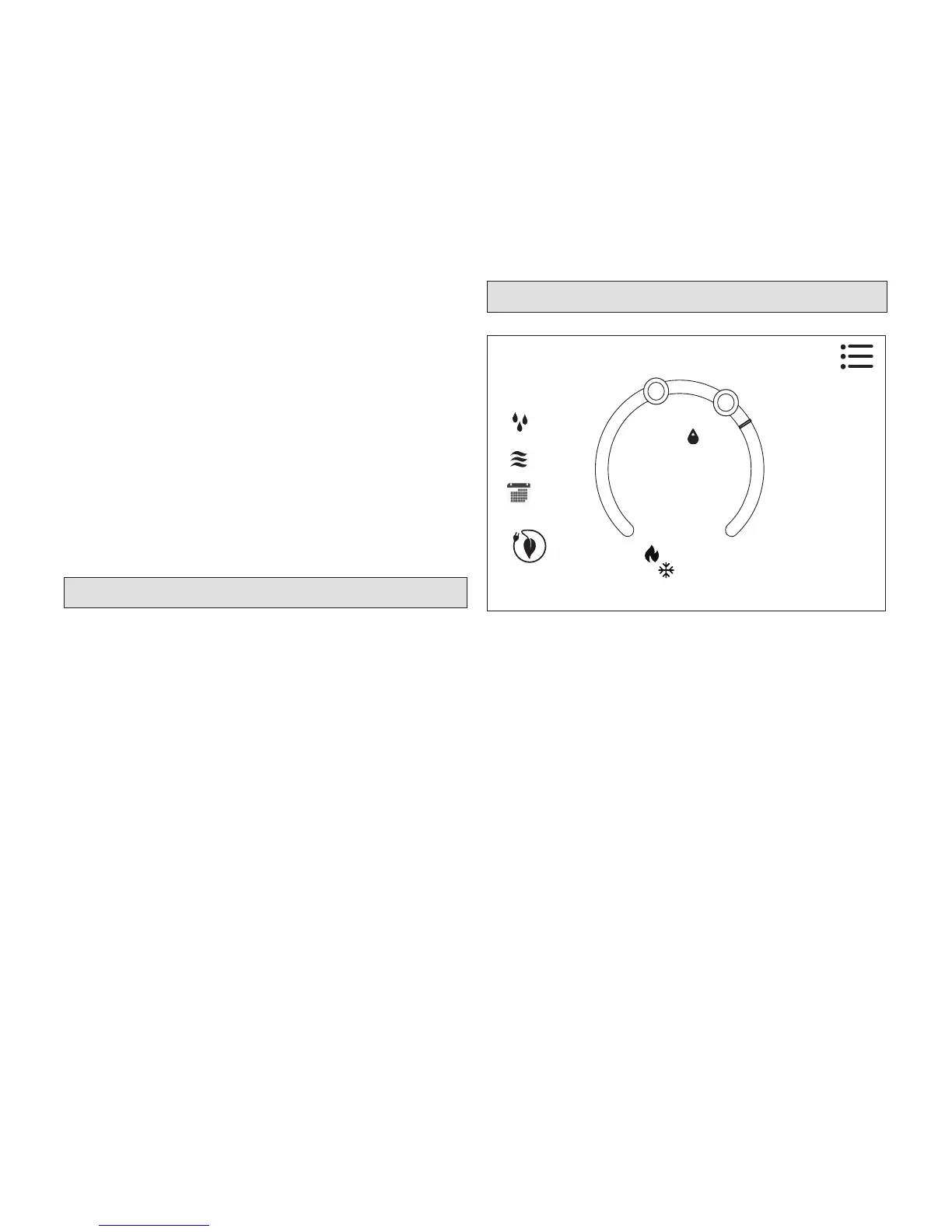

Figure 1. Temperature Dial Feature
A. This is the heat set point position indicator on
the dial. This object will be red in color.
B. This is the cool set point position indicator on the
Dial. This object will be blue in color.
C. This is the location area where no system
demand is active. In gure 1, the example would
be any temperature between 73°F and 77°F.
D. When there is an active call for heating, this area
of the dial will fade back and forth from white to
red.
E. When there is an active call for cooling, this area
of the dial will fade back and forth from white
to blue.
