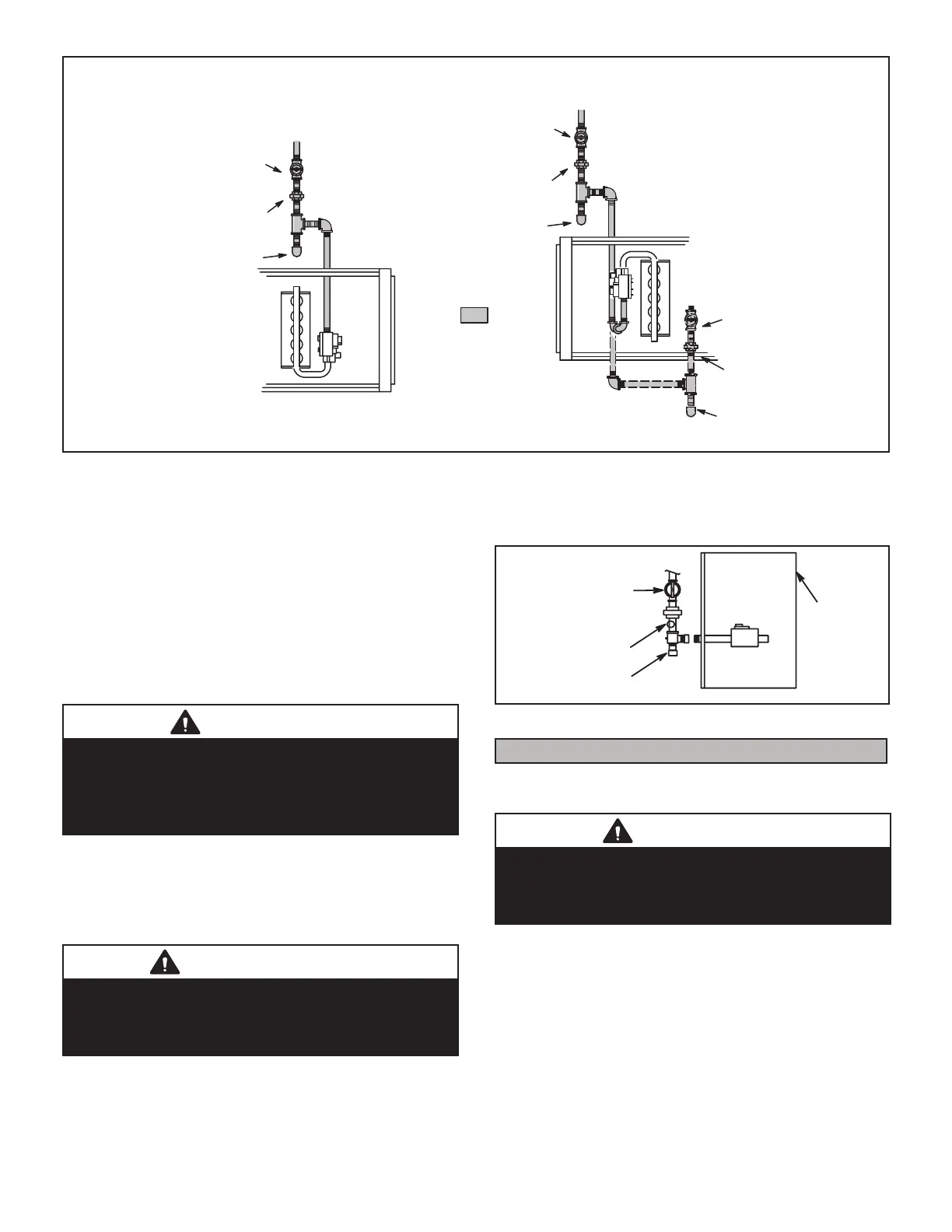

Horizontal Applications
Possible Gas Piping Configurations
Horizontal Application
Left-Side Air Discharge
Horizontal Application
Right-Side Air Discharge
NOTE - BLACK IRON PIPE ONLY TO BE ROUTED INSIDE OF CABINET
FIELD
PROVIDED
AND
INSTALLED
FIGURE 19
Leak Check
After gas piping is completed, carefully check all piping
connections  (factory-  and  eld-installed)  for  gas  leaks.
Use a leak detecting solution or other preferred means.
NOTE - If  emergency  shuto  is  necessary,  shut  o  the
main  manual  gas  valve  and  disconnect  the  main  power
to  the  furnace.  The  installer  should  properly  label  these
devices.
 CAUTION
Some soaps used for leak detection are corrosive to
certain metals. Carefully rinse piping thoroughly after
leak test has been completed. Do not use matches,
candles, ame or other sources of ignition to check for
gas leaks.
The furnace must be isolated by closing its individual
manual  shut-o  valve  and  disconnecting  from  from  the
gas supply system during any pressure testing of the gas
supply system at pressures greater than 1/2 psig (3.48
kPa, 14 inches w.c.).
 IMPORTANT
When testing pressure of gas lines, gas valve must be
disconnected and isolated. See FIGURE 20. Gas valves
can be damaged if subjected to pressures greater than
1/2 psig (3.48 kPa, 14 inches w.c.).
MANUAL MAIN
SHUT-OFF VALVE
WILL NOT HOLD
NORMAL TEST
PRESSURE
ISOLATE
GAS VALVE
FURNACE
1/8 NPT PLUG
FIGURE 20
Electrical
ELECTROSTATIC DISCHARGE (ESD)
Precautions and Procedures
 CAUTION
Electrostatic discharge can aect electronic components.
Take  precautions  to  neutralize  electrostatic  charge  by
touching your hand and tools to metal prior to handling
the control.
The unit is equipped with a eld make-up box on the left
hand side of the cabinet. The make-up box may be moved
to the right side of the furnace to facilitate installation. If
the make-up box is moved to the right side, clip the wire
ties that bundle the wires together. The excess wire must
be pulled into the blower compartment. Secure the excess
wire to the existing harness to protect it from damage.
