Thermostat
Install the room thermostat according to the instructions
provided with the thermostat. See FIGURE 22 and or
FIGURE 23 for thermostat designations. If the furnace is
being matched with a heat pump, refer to the FM21 in-
stallation instruction or appropriate dual fuel thermostat
instructions.
Indoor Blower Speeds
1 - When the thermostat is set to “FAN ON,” the indoor
blower will run continuously on the fan speed when
there is no cooling or heating demand. See TABLE
12 for allowable continuous circulation speeds.
2 - When the EL180UHNE is running in the heating
mode, the indoor blower will run on the heating
speed.
3 - When there is a cooling demand, the indoor blower
will run on the cooling speed.
FIGURE 22

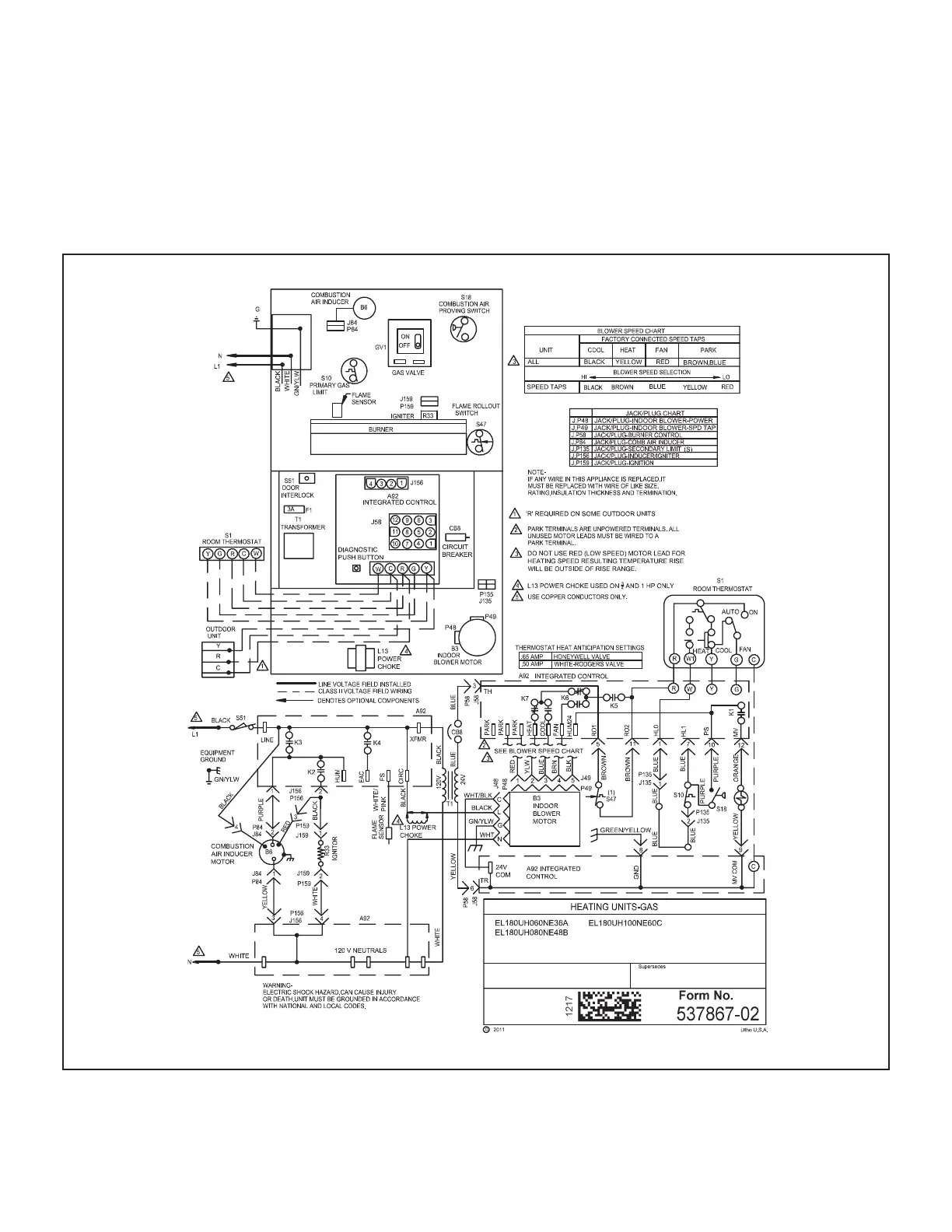

EL180UHNE-060, -080, -100 Schematic Wiring Diagram
