5
S Radiant heat from sun or appliances.
S Concealed pipes and chimneys.
S Unheated (uncooled) areas such as an
outside wall behind the thermostat.

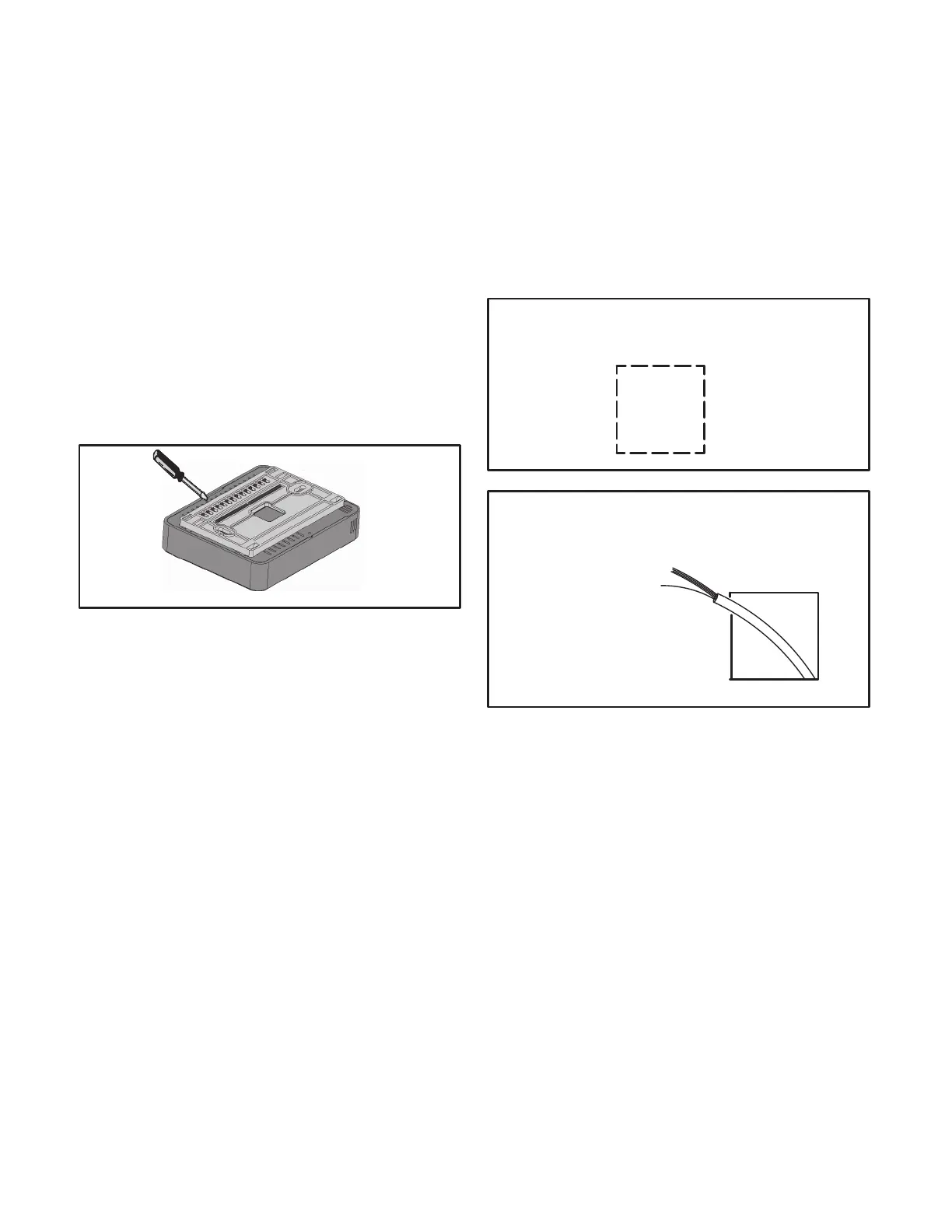

Figure 1. Removing Back Plate
4. Use steps A through J (step J applicable when
using provided wall plate) to install the thermo
stat.
CUT OR DRILL A SMALL HOLE
FOR THERMOSTAT WIRING
¾” x ¾”
A
B
PULL ABOUT 3” OF THERMOSTAT
WIRE THROUGH OPENING AND RE
MOVE OUTER THERMOSTAT WIRE
JACKET.
THIS WILL HELP IN
ROUTING THE THER
MOSTAT WIRING TO
THE PROPER THER
MOSTAT TERMINALS
