Page 10 - IOM / ROOF-TOP FLEXY™ Series

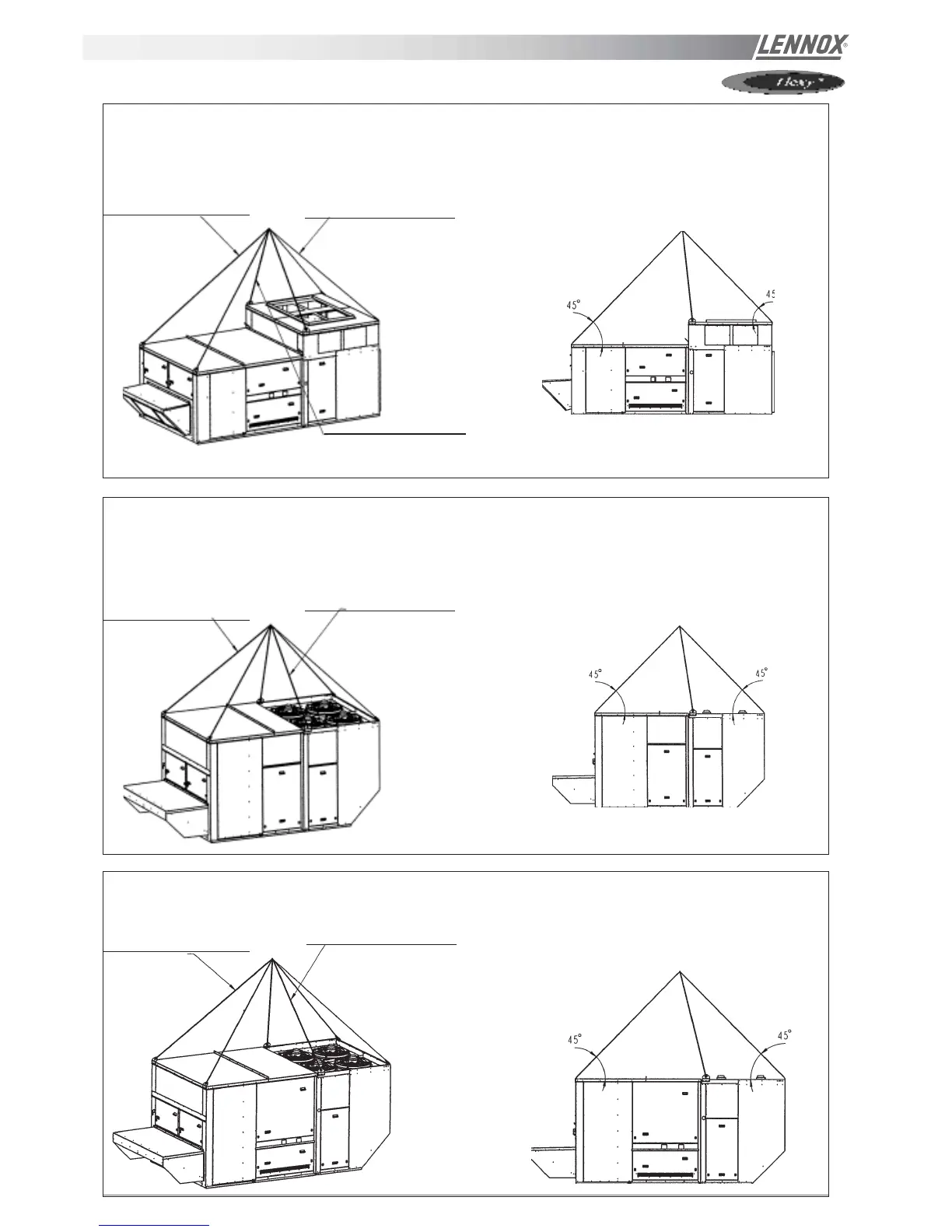

TRANSPORT - HANDLING

Sling length = 2700 mm

for angle = 45°C

FG... 120 & 140 with gas burner and centrifugal fans

Sling length = 3300 mm

for angle = 45°C

Sling length = 2080 mm

for angle = 45°C

Sling length = 2090 mm

for angle = 45°C

FC.../FH.../FD... 160 & 190

FC.../FH.../FD... 160 & 190 with centrifugal fans

Sling length = 2700 mm

for angle = 45°C

Sling length = 2320 mm

for angle = 45°C

FG... 160 & 190

FG... 160 & 190 with centrifugal fans

Sling length = 3000 mm

for angle = 45°C

Figure 3 for all handling drawings - pages 7 to11
