Page 92 - IOM / ROOF-TOP FLEXY™ Series
control interface CLIMALINK / CLIMALOOK
This page gives you the basic information about how your
installation functions. The roof-top unit’s number corresponds
to its EPROM number.
Unit’s day and time

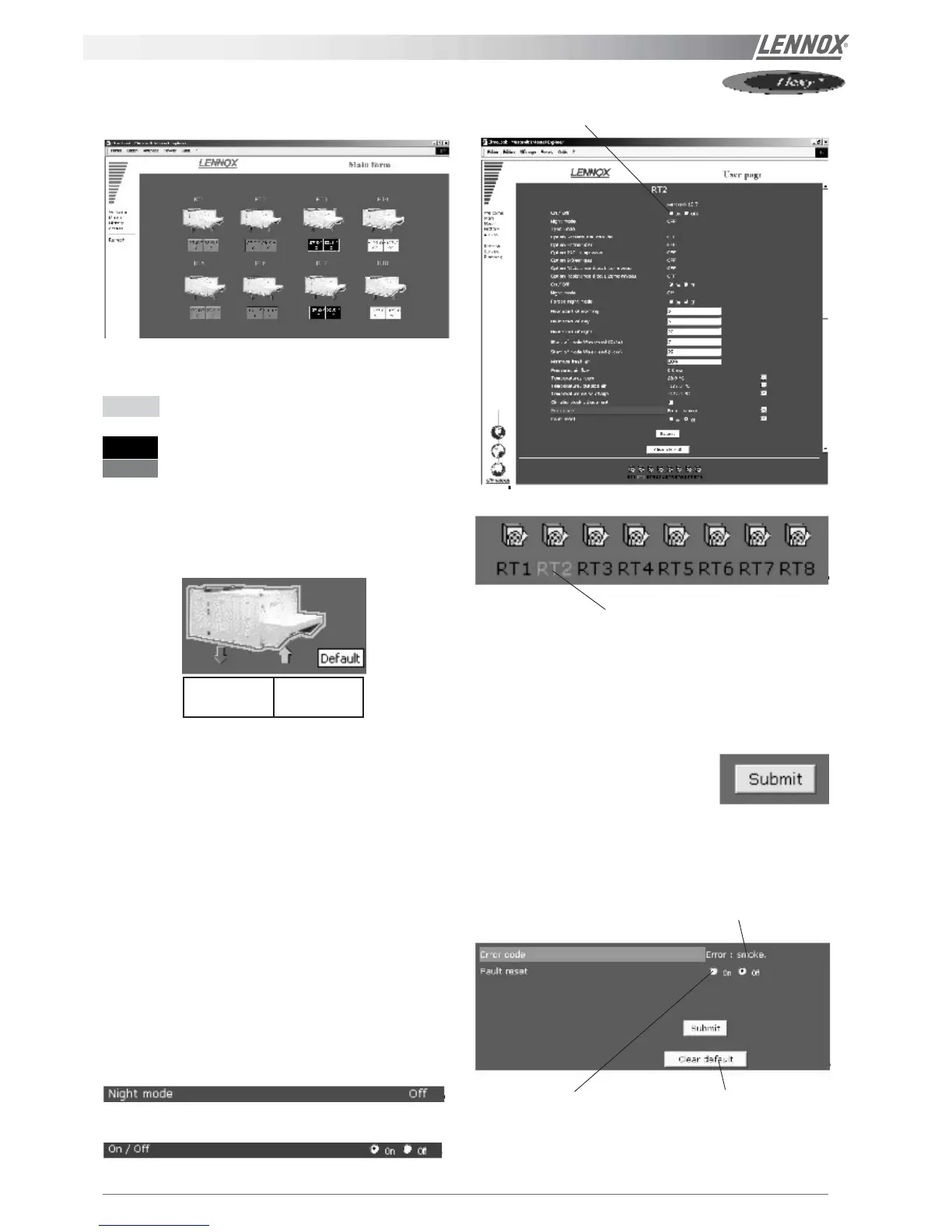

THE MAIN PAGE
Position the mouse on one of the units to obtain information
indicating this unit’s status.
If the unit does not exist, is not powered up, or if communication
with it is impossible, its icon disappears from the screen. The
program attemps to communicate with absent units every ten
minutes.
To access a unit’s operating details, just click on it once.
20 seconds automatic refresh on this screen.
THE USER PAGE
This is the page used most frequently. It enables you to display
and modify a number of settings on your unit.
Use the refresh function to update the values read.
Some settings are read-only, others can be modified.
Read-only setting :
Modifiable setting :
The bottom of the page displays the unit currently being
queried, and can also be used to change the unit by clicking.
This takes you to the user page for the new machine.
If the unit does not exist, is not powered up, or if communication
with it is impossible, its icon disappears from the screen. The
program attemps to communicate with absent units every ten
minutes.
It is possible modify several settings at
the same time.
The settings will only be modified if the
«submit» function is confirmed.
If your unit has - or had - a fault, it is outlined in red on the
main page. You can use the fault module to trouble-shoot:
If the fault is still present, it is displayed here :
The fault reset function is
used to clear the unit’s
errors if this is possible. If
the error persists, the fault
returns.
The clear default function is
used to reset the software
memory of defaults. It does not
erase the unit’s faults.
The colour outline around the roof-top unit and the operating
temperatures indicate the unit’s status:
Green : Operating mode,
White : Stop mode,
Orange : Night mode,
Red: Fault mode,
Discharge
temperature
Ambient
temperature
