Page 14 - IOM / ROOF-TOP FLEXY™ Series

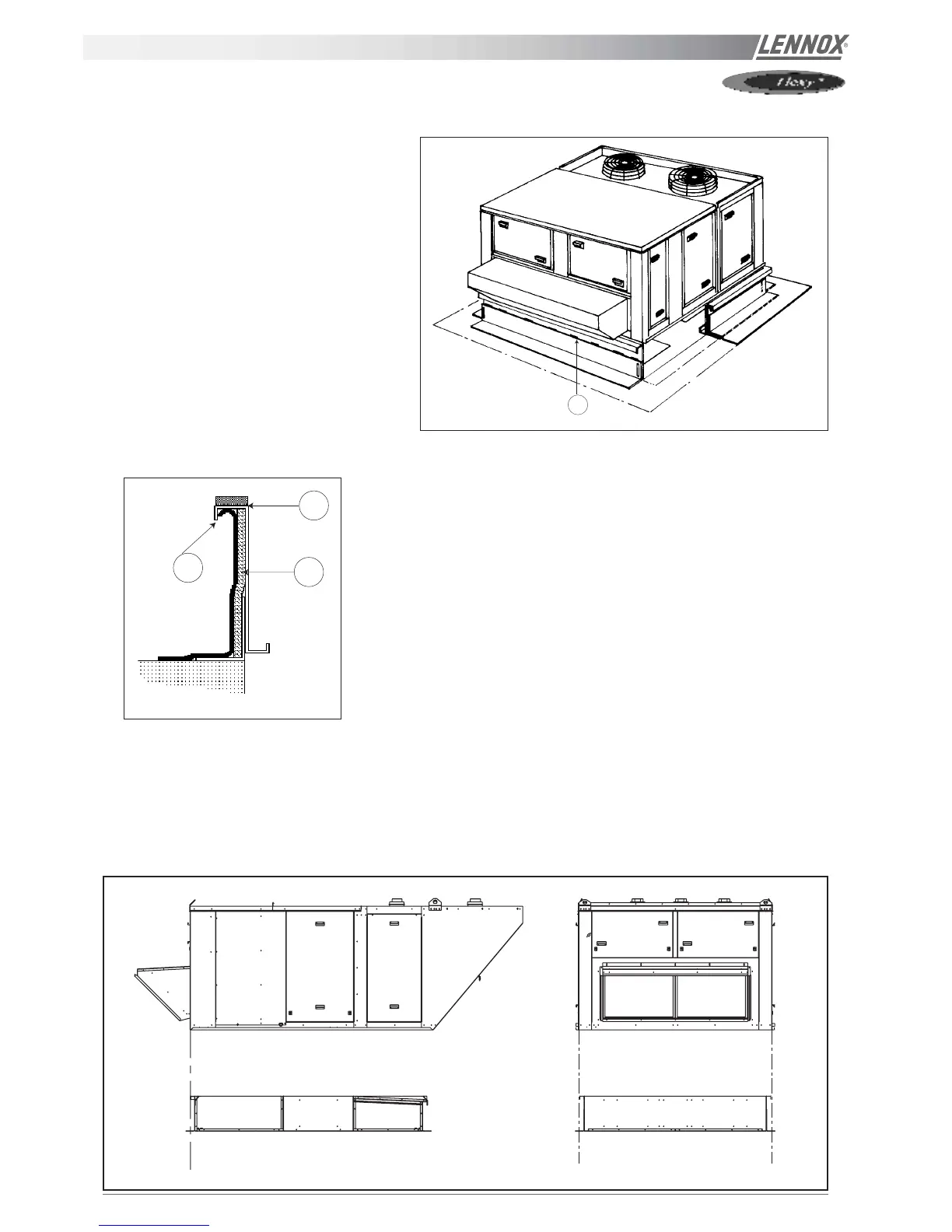

INSTALLATION ON A ROOFMOUNTING FRAME
When the frame is correctly positioned, it is
essential to secure the assembly with welding
seam (20 to 30 mm for every 200 mm) along
the outside, or by using an alternative method
(1 - figure 9).
Assembly joint (1 - figure 10)
Insulate the frame before installation. We recommend the minimum
application of 25 mm thick insulation.
Check that the covering is continuous and watertight (2 - figure 10).
CAUTION : To be effective, it must finsh behind the lip (3 - figure 10)
Before installing the equipment, make sure that the assembly seal is not damaged.
Once in position, the bottom of the equipment must be horizontal and against the roofcurb as shown on figure 11.
The installer must comply to local authority standards and specifications.
1
2
3
Figure 10
Figure 11
1
Figure 9
