INSTALLATION
FLEXYII_WSHP-IOM-1307-E - 11 -
MINIMUM CLEARANCE AROUND THE UNIT

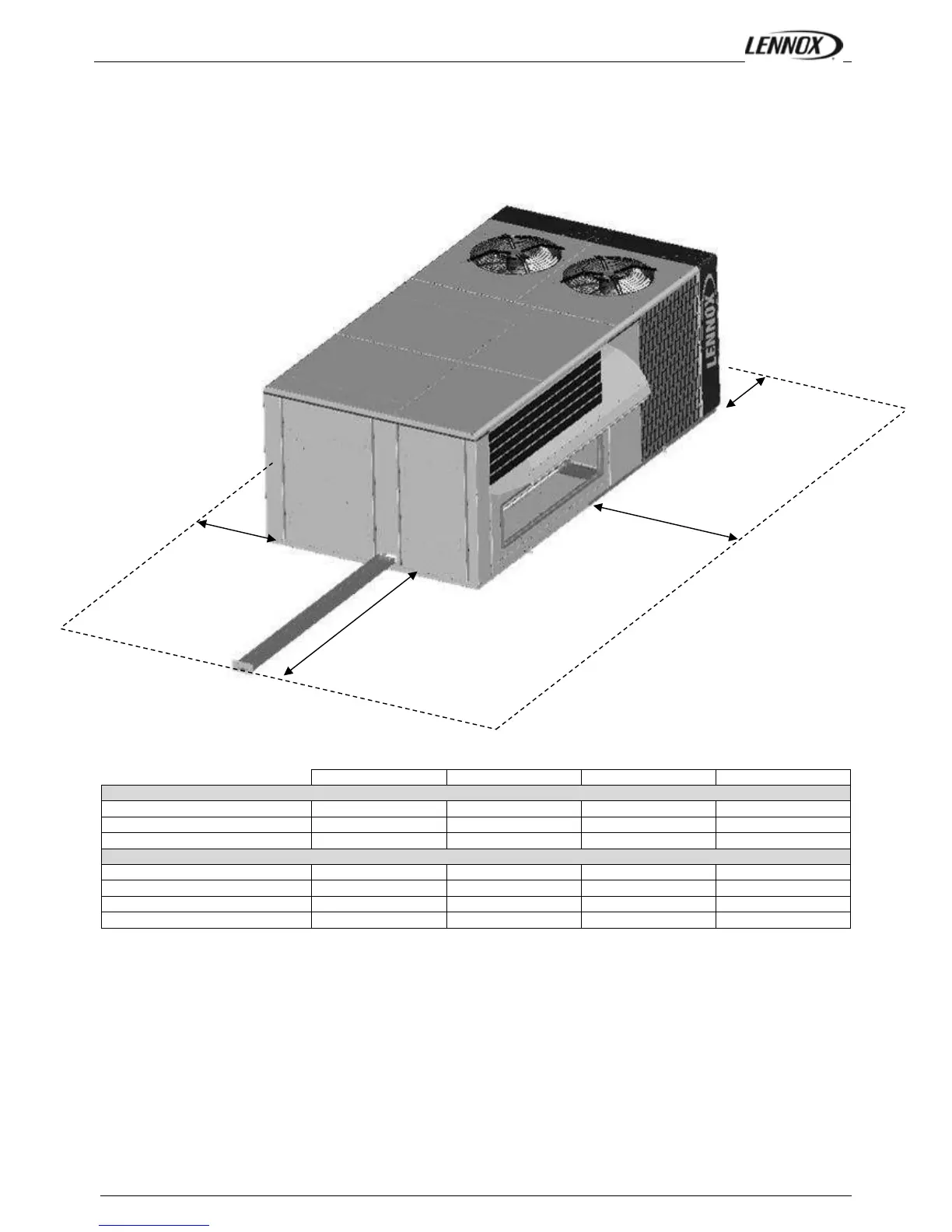

Figure 4 shows the required clearances and service access around the unit.
NOTE: Ensure the fresh air inlet does not face prevailing wind direction.
A
B
C
D
FCM/FHM/FGM/FDM/FWH/FWM
F BOX
2200
(1)
2000
2000
2000
G BOX
2700
(1)
2000
2000
2000
H BOX
2700
(1)
2000
2000
2000
FX
25 & 30
*
1100
*
1700
35à55
*
1300
*
2300
70à100
*
1700
*
2300
110à170
*
2000
*
2300
(1) Add 1 meter if the units are equipped with gas burner
