Lennox G60UH User Manual

Page 21

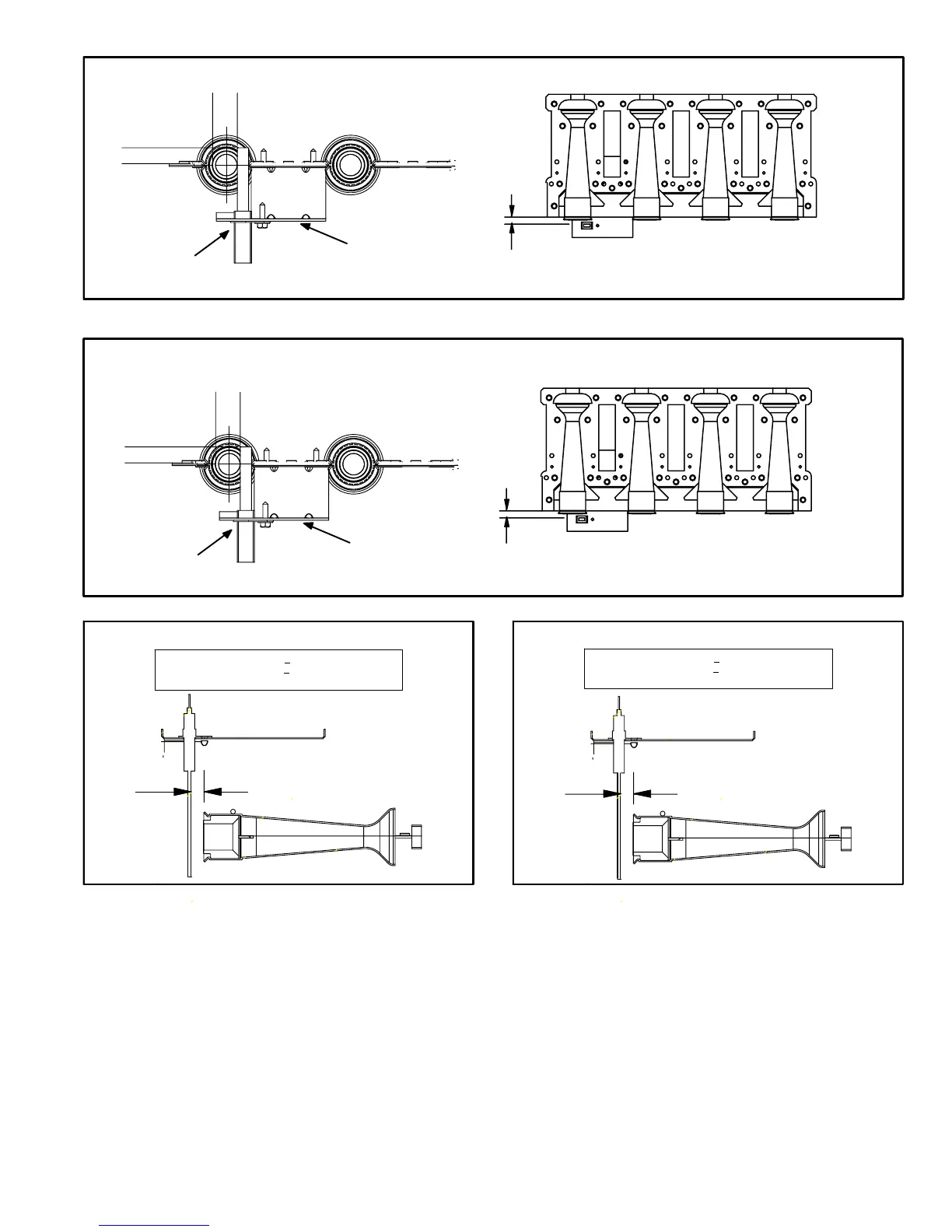

FIGURE 7
5/16"
13/32’
5/8
"
SureLight Board 18M34 Ignitor Location
BURNERS TOP VIEW
BURNERS FRONT VIEW
MEASUREMENT IS TO
I.D. OF RETENTION
RING
IGNITOR
BRACKET
FIGURE 8
21/64"
7/32’
5/8
"
SureLight Board 100869 Ignitor Location
BURNERS TOP VIEW
BURNERS FRONT VIEW
MEASUREMENT IS TO
I.D. OF RETENTION
RING
IGNITOR
BRACKET
FIGURE 9
NORMAL FLAME SIGNAL > 0.23 MICROAMPS
LOW FLAME SIGNAL <
0.22 MICROAMPS
DROP OUT SIGNAL = 0.16 MICROAMPS
5/16"
SureLight Board 18M34 Sensor
FIGURE 10
NORMAL FLAME SIGNAL > 1.50 MICROAMPS
LOW FLAME SIGNAL <
1.40 MICROAMPS
DROP OUT SIGNAL = 0.20 MICROAMPS
5/16"
SureLight Board 100869 Sensor
