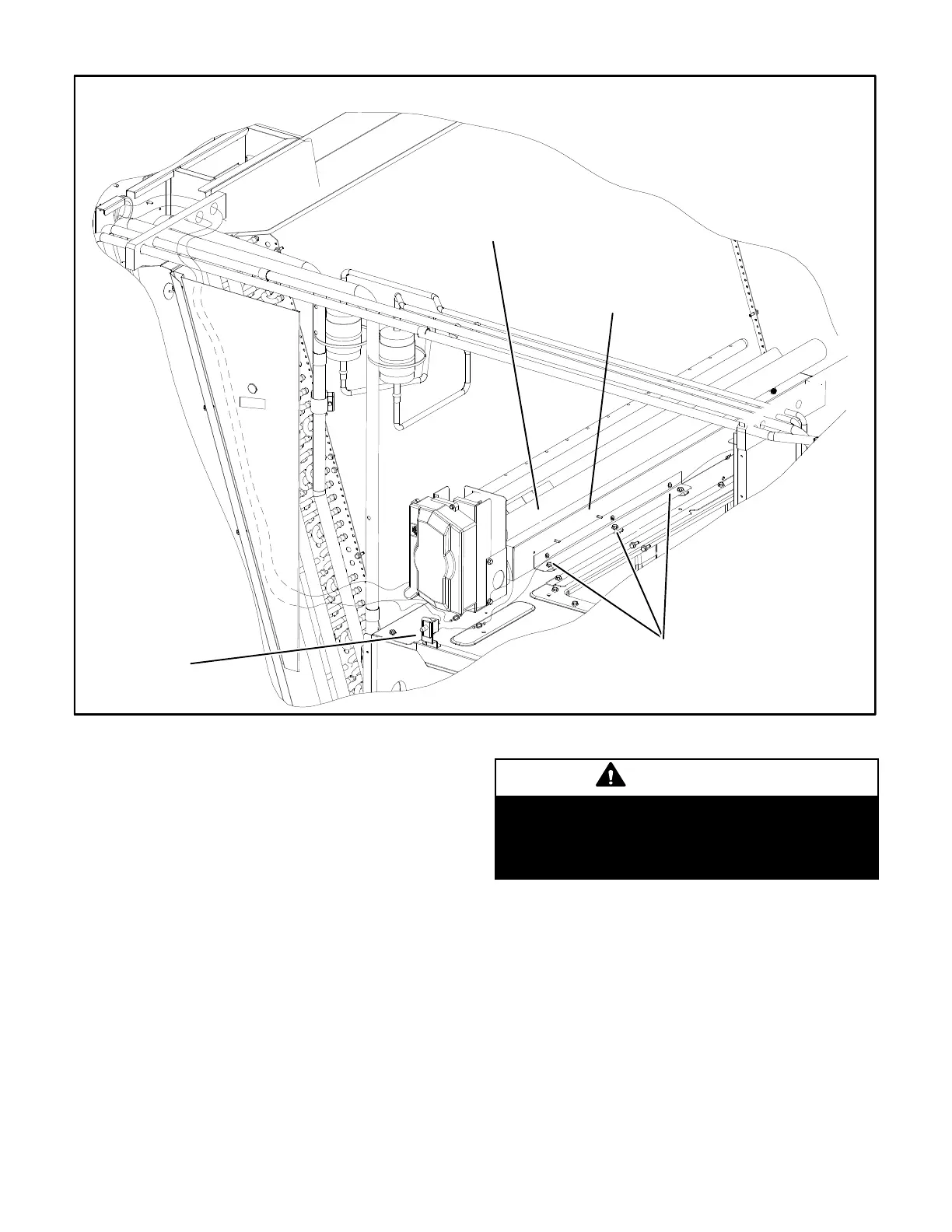

FIGURE 36
UVC ASSEMBLY
UVC ASSEMBLY
ASSEMBLY SECURED
WITH 3 SCREWS
DOOR
SWITCH
UVC LAMP
K-UVC Light
When field-installed, use only UVC Light Kit assembly
106882-01 (21A93) with this appliance.
Factory-Installed UVC Light
When the UVC light is factory installed, the lamp is
shipped in a foam sleeve. The lamp is attached to the
UVC light assembly on the blower deck. See figure 36.
Remove the lamp and install into the UVC light assembly
as shown in steps 2 through 11.
Annual Lamp Replacement
WARNING
Personal Burn Hazard.
Personal injury may result from hot lamps. During
replacement, allow lamp to cool for 10 minutes be
fore removing lamp from fixture.
The lamp should be replaced every 12 months, as UVC
energy production diminishes over time.
1- Obtain replacement lamp 101087-01 for your
germicidal light model.
2- Disconnect power to the rooftop unit before servicing
the UVC kit.
