Page 24
LGT/LCT156, 180, 210, 240, 300
TABLE 4
156 NORMAL OPERATING PRESSURES - NO REHEAT - ALL-ALUMINUM COIL - 581081-01
Outdoor Coil Entering Air Temperature
65 F 75 F 85 F 95 F 105 F 115 F
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Circuit 1
112 231 115 269 117 313 119 362 120 416 120 475
120 233 123 271 126 314 128 362 130 416 131 475
133 240 138 277 142 319 146 366 150 419 153 477
147 250 153 285 159 326 164 372 169 424 174 481
Circuit 1
110 246 113 285 115 329 117 379 118 432 119 491
116 249 119 288 122 333 125 382 127 435 129 494
127 256 133 295 137 340 142 389 146 442 149 501
138 264 145 304 152 348 158 396 163 450 169 509

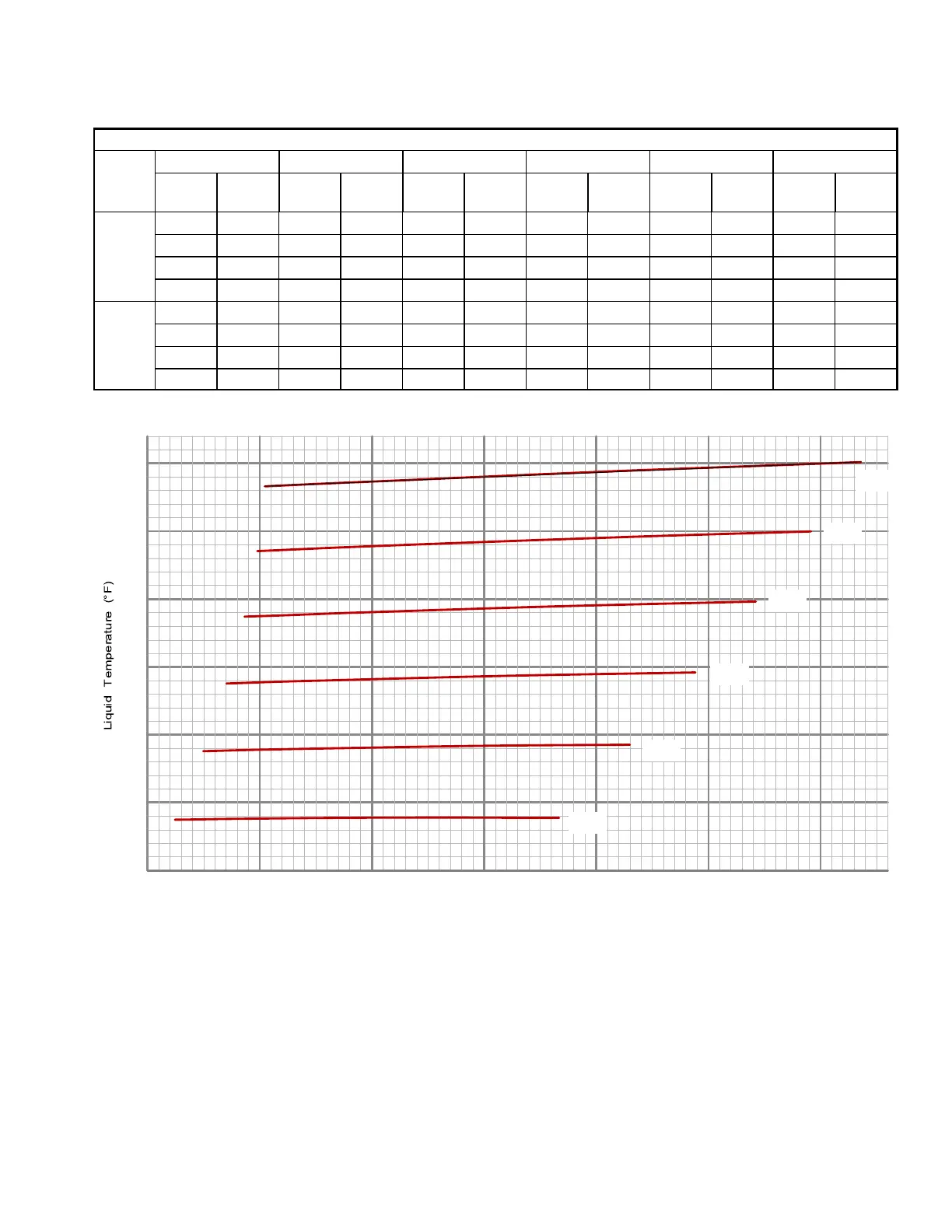

156 CHARGING CURVE CIRCUIT 1 - NO REHEAT - ALL-ALUMINUM COIL - 581082-01
Suction Pressure (psig)
70
80
90
100
110
120
Outdoor Temperature (°F)
105°
95°
115°
85°
75°
65°
60
110 120 130 140 150 160 170
