LGT/LCT156, 180, 210, 240, 300
TABLE 5
156 NORMAL OPERATING PRESSURES - REHEAT - ALL-ALUMINUM COIL - 581083-01
Outdoor Coil Entering Air Temperature
65 F 75 F 85 F 95 F 105 F 115 F
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Circuit 1
113 245 116 282 119 324 121 372 122 425 122 484
118 247 123 284 126 326 129 374 131 427 132 486
128 255 135 291 140 333 145 380 149 433 153 492
137 264 145 300 153 342 160 389 166 442 172 500
Circuit 2
112 260 115 298 118 342 120 392 122 447 123 508
116 262 121 300 125 344 128 393 131 449 133 510
125 269 132 307 138 350 143 399 148 454 152 515
133 280 141 318 149 361 157 409 164 464 170 524

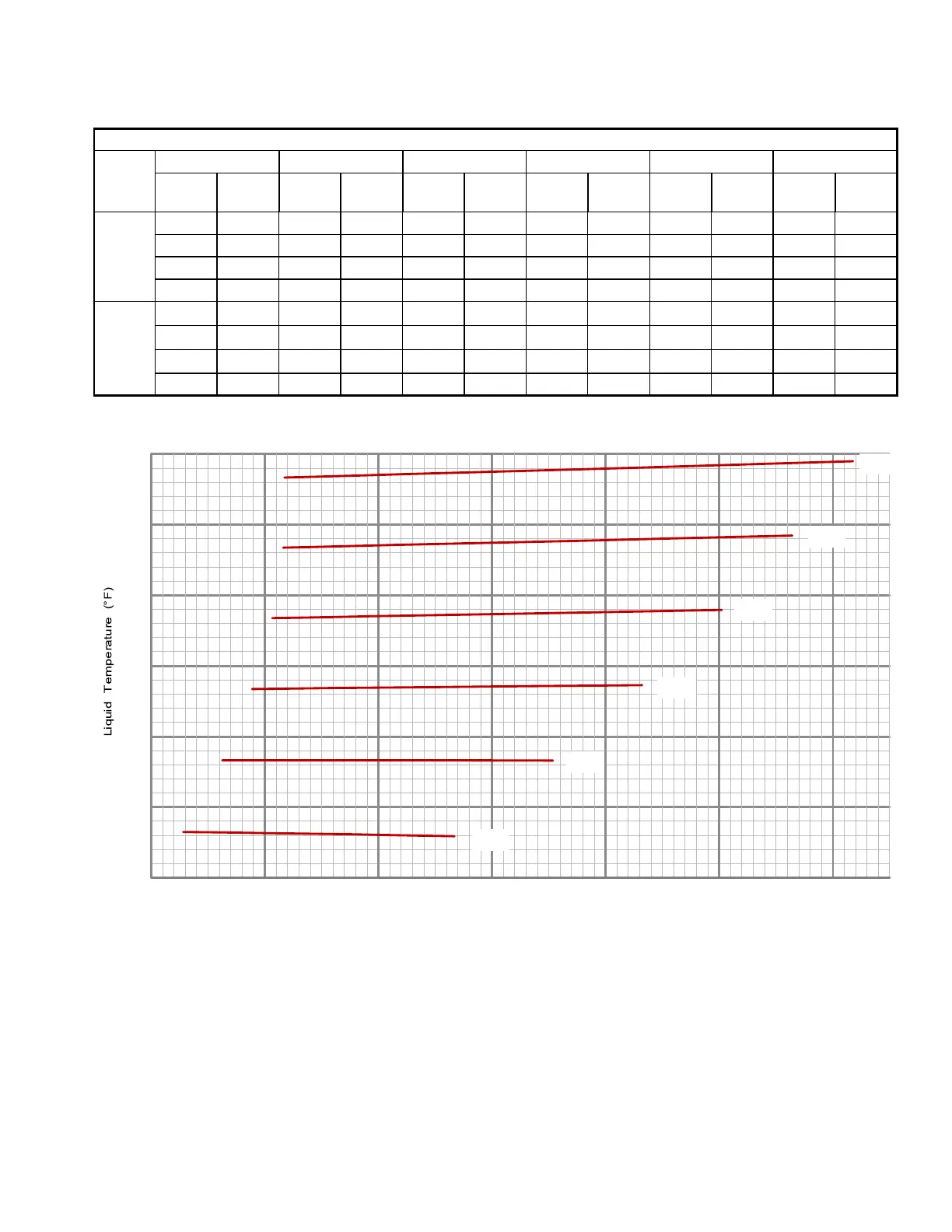

156 CHARGING CURVE CIRCUIT 1 - REHEAT - ALL-ALUMINUM COIL - 581084-01
Suction Pressure (psig)
70
80
90
100
110
120
Outdoor Temperature (°F)
105°
95°
115°
85°
75°
65°
60
110 120 130 140 150 160 170
