Lennox LCT240H

Page 42
LGT/LCT156, 180, 210, 240, 300

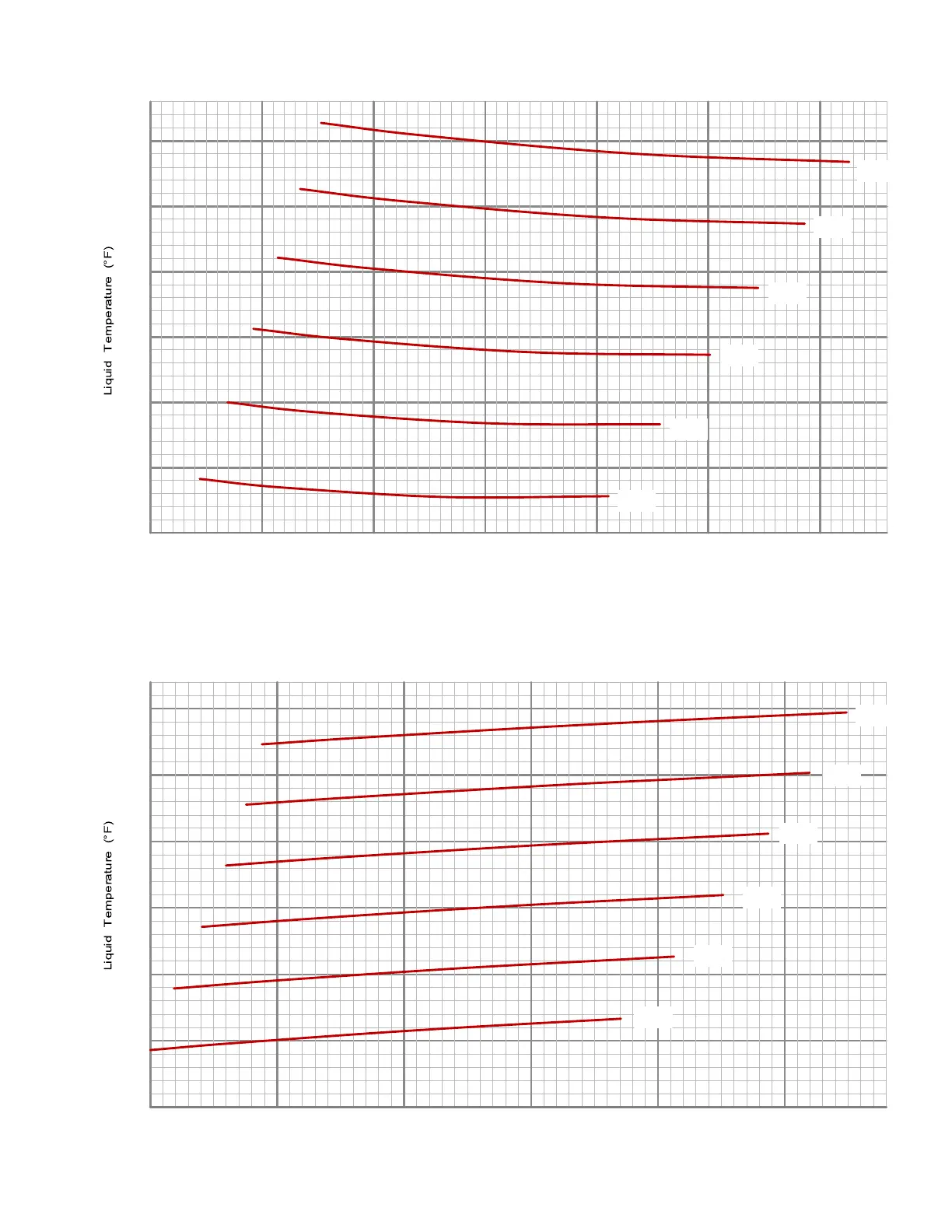

240 CHARGING CURVE CIRCUIT 2 - REHEAT - ALL-ALUMINUM COIL - 581096-01
Suction Pressure (psig)
70
80
90
100
110
120
Outdoor Temperature (°F)
105°
95°
115°
85°
75°
65°
60
110 120 130 140 150 160 170
240 CHARGING CURVE CIRCUIT 3 - REHEAT - ALL-ALUMINUM COIL - 581096-01
Suction Pressure (psig)
70
80
90
100
110
120
Outdoor Temperature (°F)
105°
95°
115°
85°
75°
65°
60
110 120 130 140 150100
