Lennox LCT240H User Manual

Page 75
508288-01 9/2022

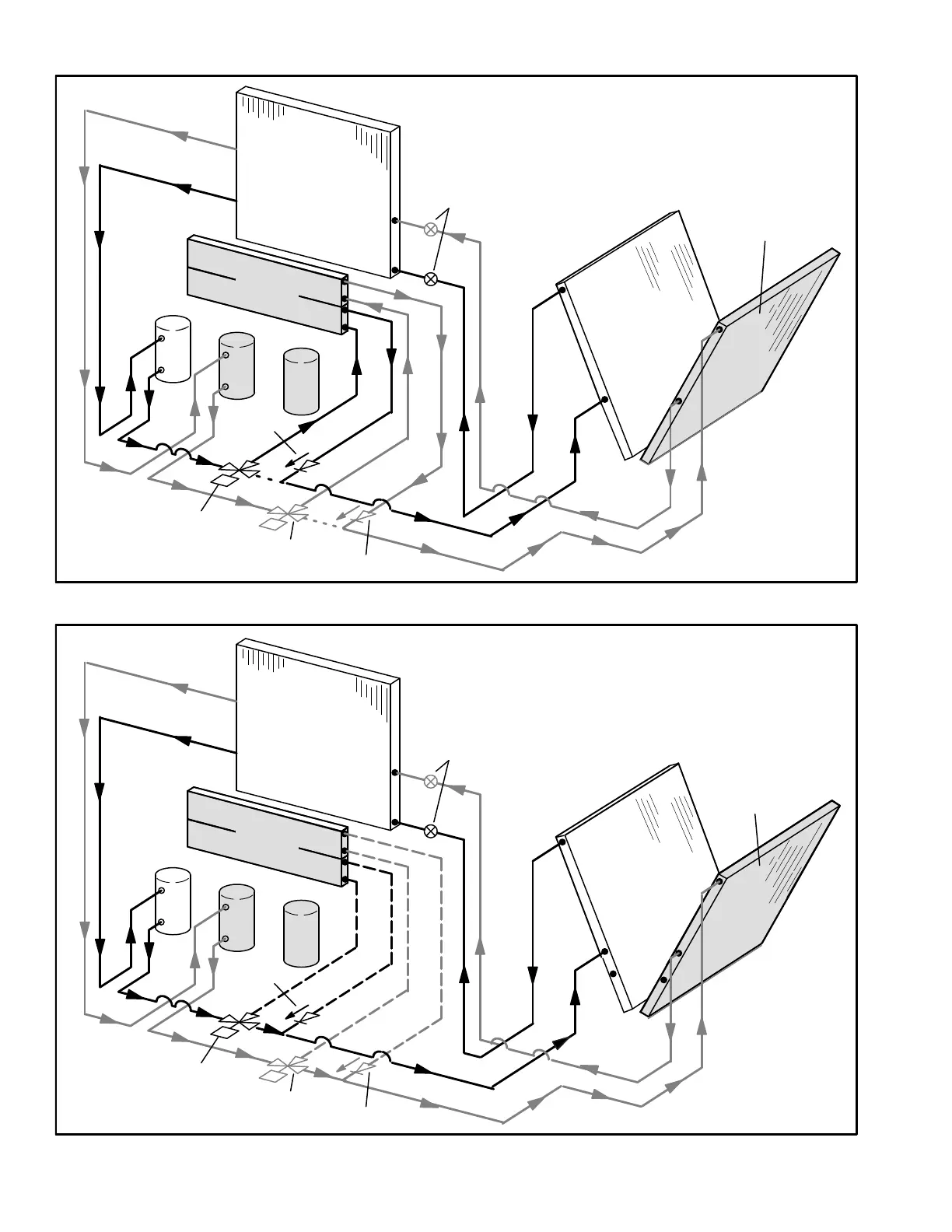

FIGURE 35
REHEAT MODE REFRIGERANT ROUTING
180 UNITS
REHEAT
COIL
CIRCUIT 2 & 3
CONDENSER COILS
CIRCUIT 1
CONDENSER
COIL
1
2
EXPANSION
VALVES
CHECK
VALVE
L14
REHEAT
VALVE
L30
REHEAT
VALVE
3
CHECK
VALVE
Note: Two refrigerant circuits are shown;
both circuits operate during reheat.
EVAPORATOR
CIRCUITS 1 & 2
ARE INTERTWINED
FIGURE 36
COOLING MODE REFRIGERANT ROUTING
180 UNITS
REHEAT
COIL
CIRCUIT 1
CONDENSER
COIL
1
2
EXPANSION
VALVES
CHECK
VALVE
L14
REHEAT
VALVE
L30
REHEAT
VALVE
3
CHECK
VALVE
Note: Two refrigerant circuits are
shown; both circuits operate
when there is a cooling demand.
CIRCUIT 2 & 3
CONDENSER COILS
EVAPORATOR
CIRCUITS 1 & 2
ARE INTERTWINED
