LGT/LCT156, 180, 210, 240, 300

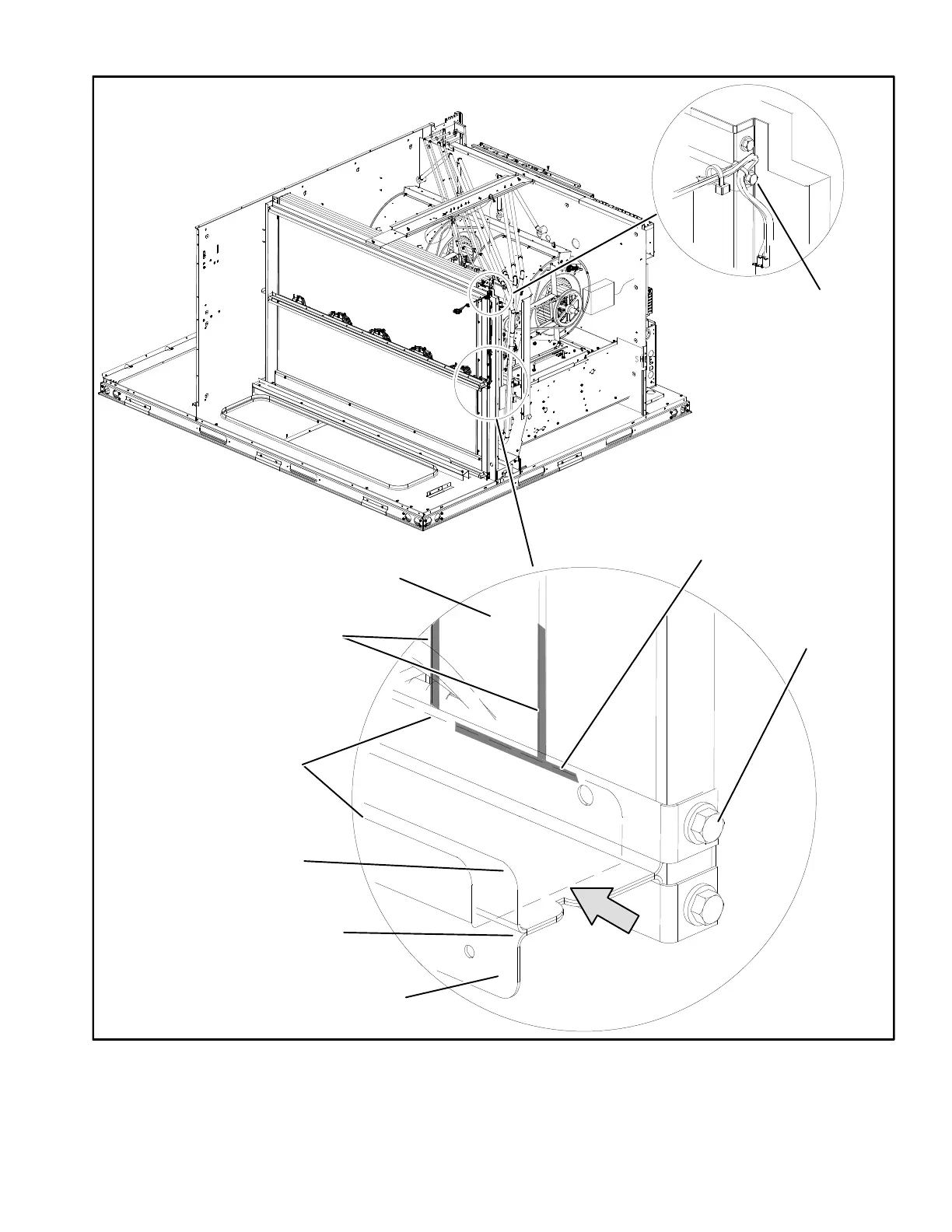

FIGURE 44
INSTALL IONIZER - 156-300
SLIDE IONIZER BRACKET
BETWEEN UPPER AND LOWER
FILTER BRACKET U-CHANNELS
20 TON SHOWN
(5 IONIZERS)
LOWER FILTER
BRACKET
U-CHANNEL
UPPER FILTER
BRACKET
U-CHANNEL
IONIZER
BRACKET
EVAPORATOR
COIL
ONE EDGE
PROTECTOR ON
IONIZER BRACKET
REMOVE THE
SCREW SECURING
THE BOTTOM OF
THE UPPER FILTER
RACK BRACKET
REMOVE THE SCREW
SECURING THE TOP
OF THE UPPER FILTER
RACK BRACKET
TWO EDGE
PROTECTORS ON
FILTER RACK
