Lennox LGH420 Installation Instructions

Page 8
LGH/LCH420, 480, 540, 600
Power Exhaust Shipping Blocks
1- Open access panels on return end end of unit. See
figure 4.
2- Remove four shipping blocks and screws beneath the
power exhaust assembly frame as shown in figure 7.

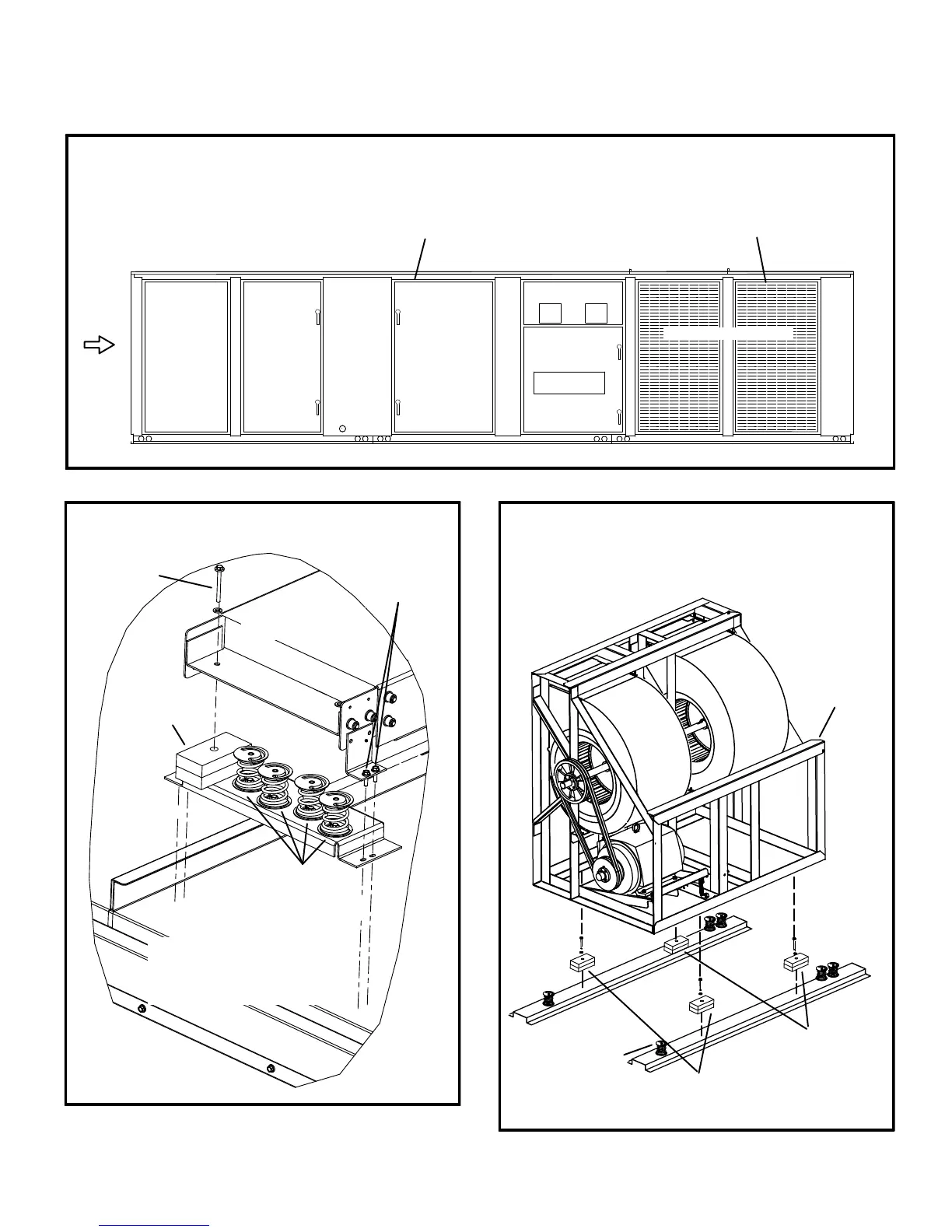

FIGURE 4
ACCESS TO COMPRESSOR HAT SECTION AND INDOOR BLOWER SHIPPING BLOCKS
FRONT SIDE OF UNIT SHOWN
COMPRESSOR HAT SECTION
SHIPPING BLOCK ACCESS
(BOTH SIDES)
Heat
Section
Blower Motor
Access
Opposite
Side
Economizer
Section
Condenser Section
INDOOR BLOWER
SHIPPING BLOCK ACCESS
(BOTH SIDES)
RETURN
AIR END
OF UNIT
FIGURE 5
COMPRESSOR HAT SECTION SHIPPING BLOCKS
(FRONT SIDE SHOWN)
REMOVE
SHIPPING
BLOCK
OPTIONAL
SPRING
MOUNTS
COMPRESSOR
HAT SECTION
REMOVE
SHIPPING
SCREW
REMOVE
SHIPPING
SCREWS
Note - Shipping blocks
are only present when
optional spring mounts
are installed.
FIGURE 6
INDOOR BLOWER SHIPPING BLOCKS
(BACK VIEW SHOWN)
REMOVE SHIPPING
BLOCKS AND SCREWS
(BACK SIDE)
OPTIONAL
SPRING MOUNT
(TYPICAL)
REMOVE SHIP
PING BLOCKS
AND SCREWS
(FRONT SIDE)
INDOOR
BLOWER
FRAME
Note - Shipping blocks
are only present when
optional spring
mounts are installed.
