Lennox LGH480 User Manual

Page 10
LGH/LCH420, 480, 540, 600

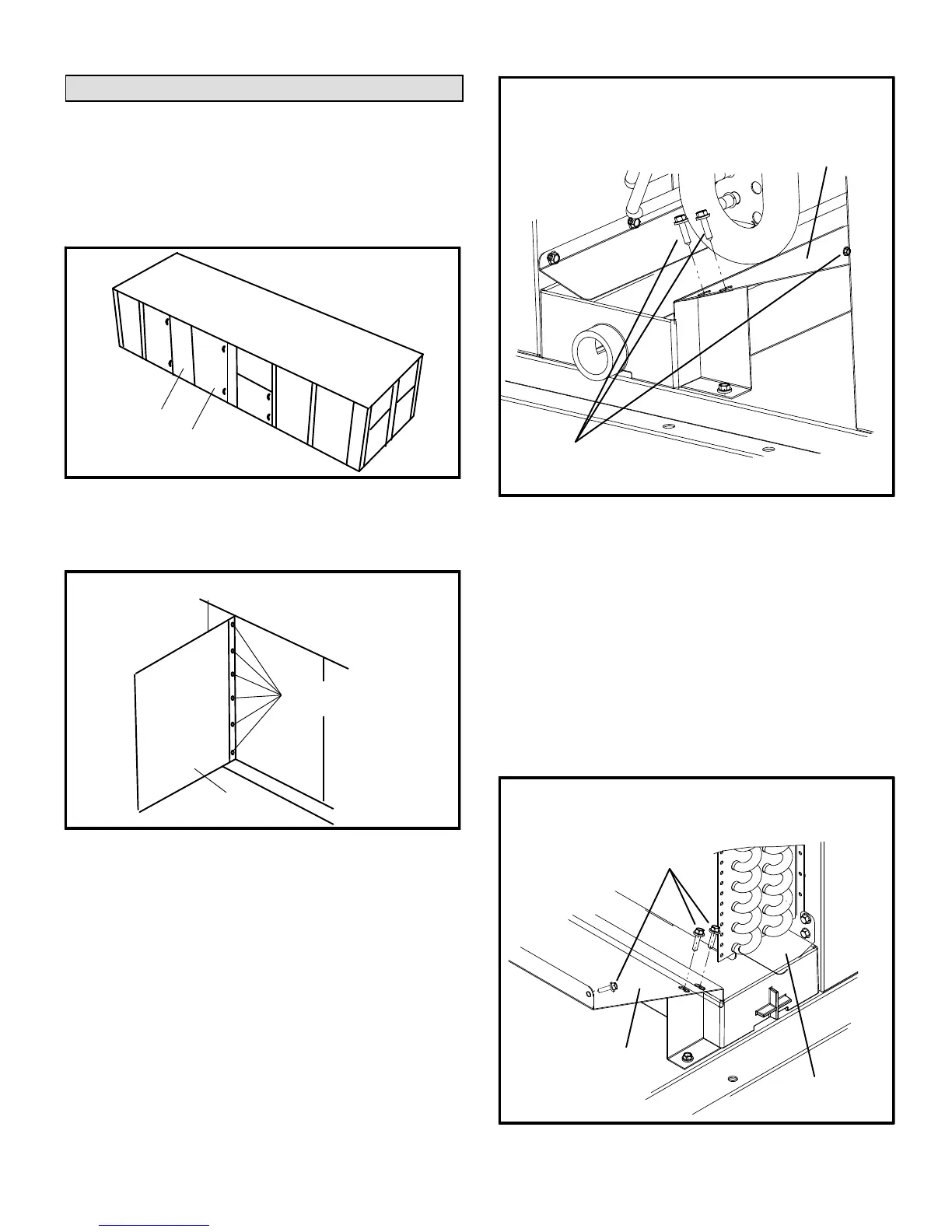

Reverse Condensate Drain Pan
Unit is shipped from the factory with the condensate drain
facing the front of the unit. Reverse drain pan when needed
as follows:
1- Remove blower door on front of unit. See figure 8 and 9.
FIGURE 8
BLOWER DOOR
FRONT MULLION
FIGURE 9
BLOWER
DOOR
REMOVE
SCREWS
REMOVE BLOWER DOOR
2- Remove and retain the patch plate on the front mullion.
3- Remove front mullion.
4- Remove and retain three screws securing drip shield.
See figure 10.
5- Locate the patch plate on the back mullion. Remove the
patch plate and install on the front mullion.
6- Remove back mullion.
7- Install patch plate from the front mullion on the back
mullion. Position the patch plate in the same location as
the previous patch plate.
FIGURE 10
REMOVE SCREWS SECURING DRIP SHIELD
AND DRAIN PAN
REMOVE
SCREWS
LONG DRIP
SHIELD
8- Remove and retain three screws securing drip shields
on back side of unit. See figure 11. Remove long drip
shield.
9- Push the drain pan downward and remove from unit.
10- Rotate the drain pan and reinstall.
11- Reinstall long drip shield with retained screws.
12- Replace mullions and blower door.
FIGURE 11
BACK DRIP
SHIELD
REMOVE
SCREWS
REMOVE SCREWS SECURING DRIP SHIELD
AND DRAIN PAN
LONG DRIP
SHIELD
