J-Needlepoint Bipolar Ionizer (Optional)
The optional, brush-type ionizer produces positive and
negative ions to clean air and reduce airborne contami-
nants. The ionizer was designed to be low maintenance.
the brushes are clean for maximum output. The ionizer is
located behind on the blower deck to the left of the blower.
1 - On the back side of the unit, remove the screw
36. Retain the screw to secure the back side of the
ionizer bracket.
2 - Remove two screws securing the front side of
the ionizer bracket and pull out of unit and clean
brushes.
3 - Replace ionizer in the reverse order it was removed
REMOVE IONIZER
REMOVE THE TOP RIGHT SCREW
SECURING THE BACK OF THE
IONIZER BRACKET AND THE
HORIZONTAL SUPPLY AIR COVER
RETAIN THE SCREW TO SECURE THE
BACK SIDE OF THE IONIZER BRACKET

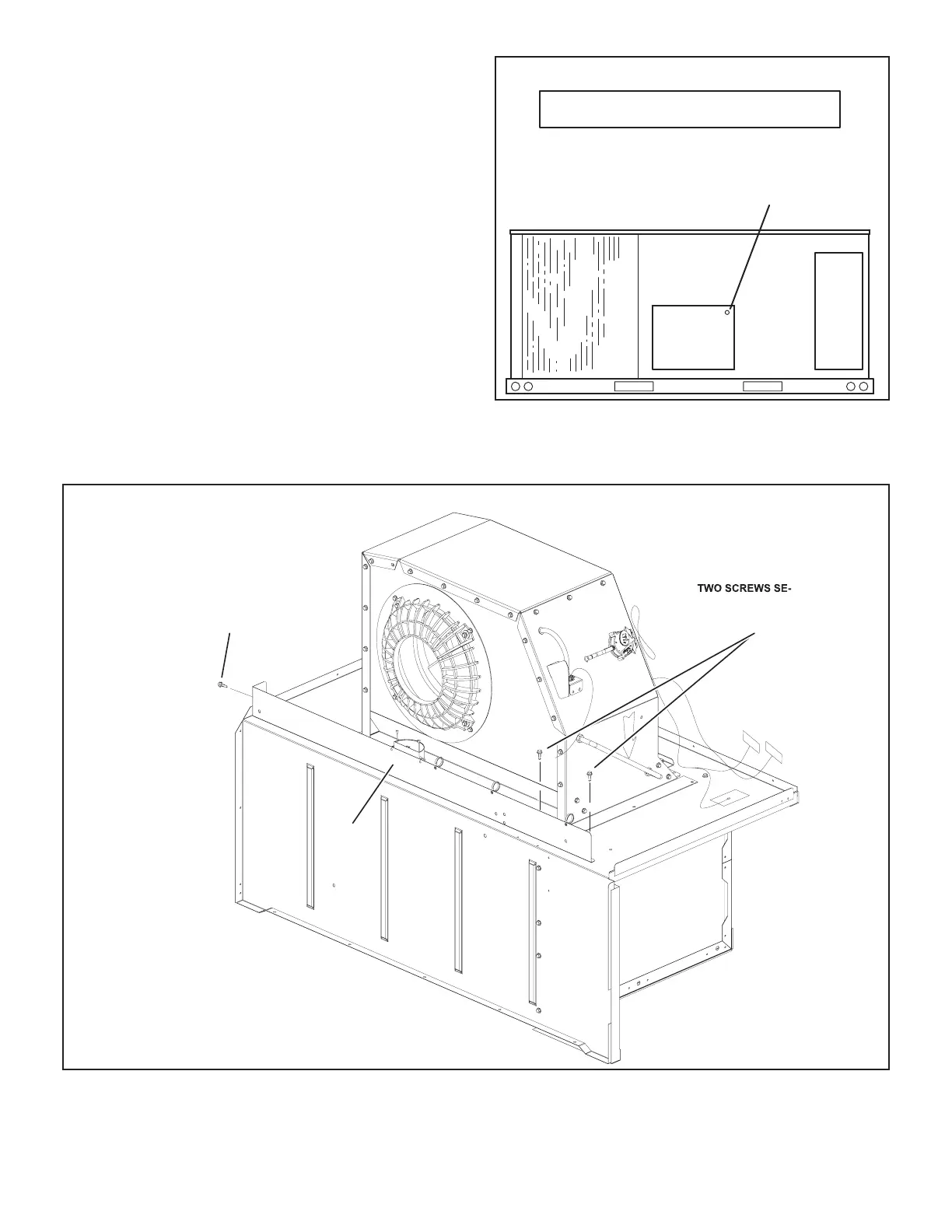

FIGURE 36
IONIZER
REMOVE IONIZER
CURE THE FRONT
OF THE IONIZER TO
THE BLOWER DECK.
THIS SCREW SECURES THE TOP
RIGHT CORNER OF THE HORIZONTAL
SUPPLY AIR COVER AND THE BACK
OF THE IONIZER BRACKET. BE SURE
TO ENGAGE THE IONER BRACKET
WHEN REPLACING THE SCREW.
FIGURE 37
