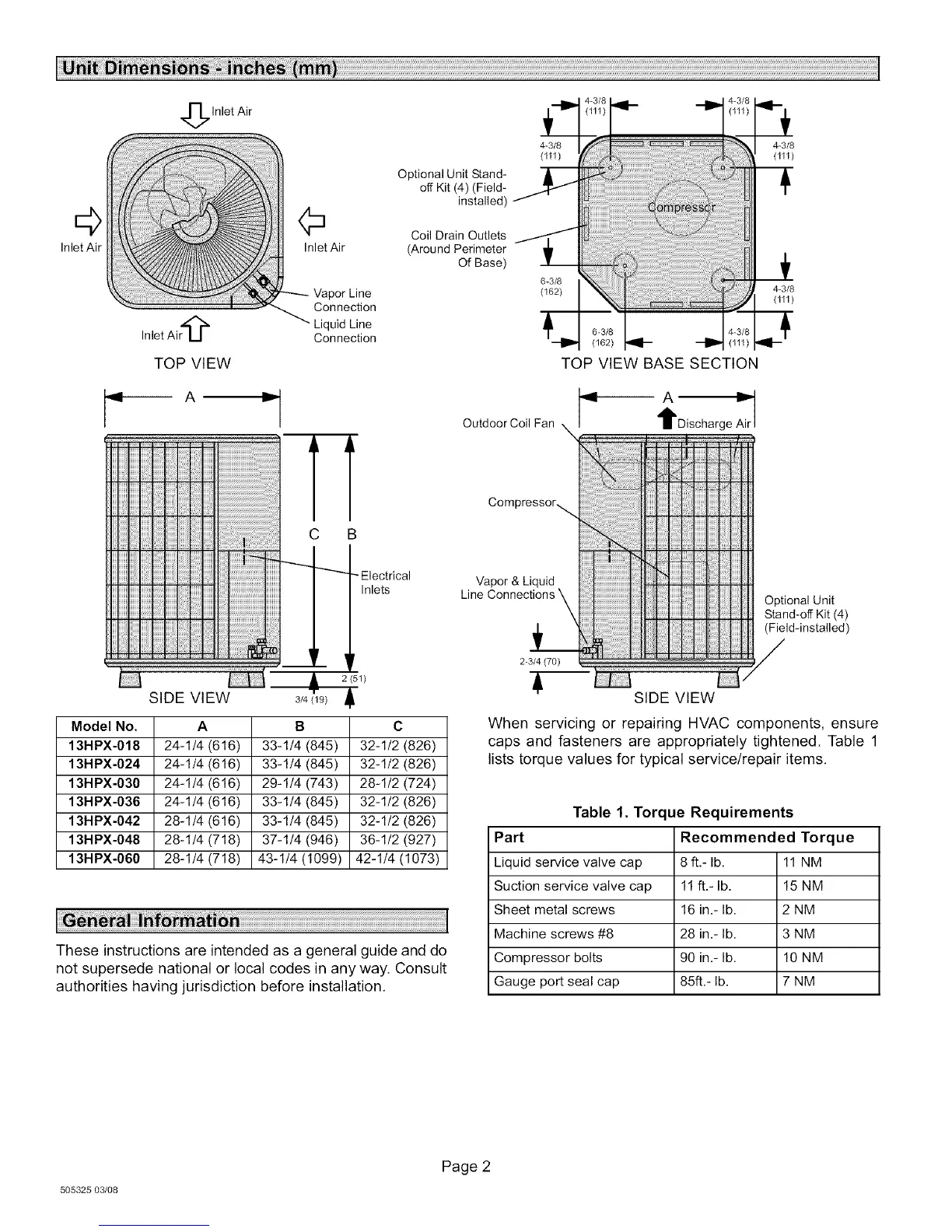

Inlet Air
,_lnletAir
©
InletAir
Vapor Line
Connection
Ai'_ru Liquid Line
Inlet
Connection
Optional Unit Stand-
off Kit (4) (Field-
installed',
Coil Drain Outlets
(Around Perimeter
Of Base)
4-3/8
(111)
6-3/8
(182)
4-3/8
(111)
4-3/8
(111)
TOP VIEW TOP VIEW BASE SECTION
SIDE VIEW
Model No. A C
13HPX-018 24-1/4 (616) 32-1/2 (826)
13HPX-024 24-1/4 (616) 32-1/2 (826)
13HPX-030 24-1/4 (616) 28-1/2 (724)
13HPX-036 24-1/4 (616) 32-1/2 (826)
13HPX-042 28-1/4 (616) 32-1/2 (826)
13HPX-048 28-1/4 (718) 36-1/2 (927)
13HPX-060 28-1/4 (718) 42-1/4 (1073)
3/4 (19)
B
33-1/4 (845)
33-1/4 (845)
29-1/4 (743)
33-1/4 (845)
33-1/4 (845)
37-1/4 (946)
43-1/4 (1099)
These instructions are intended as a general guide and do
not supersede national or local codes in any way. Consult
authorities having jurisdiction before installation.
OutdoorCoil Fan \ tDischarge
Compressor_
Vapor & Liquid
Line Connections
L
2-3/4 (70)
Optional Unit
Stand-off Kit (4)
(Field-installed)
SIDE VIEW
When servicing or repairing HVAC components, ensure
caps and fasteners are appropriately tightened. Table 1
lists torque values for typical service/repair items.
Table 1. Torque Requirements
Part Recommended Torque
Liquid service valve cap 8 ft.- lb. 11 NM
Suction service valve cap 11 ft.- lb. 15 NM
Sheet metal screws 16 in.- lb. 2 NM
Machine screws #8 28 in.- lb. 3 NM
Compressor bolts 90 in.- lb. 10 NM
Gauge port seal cap 85ft.- lb. 7 NM
505325 03/08
Page 2
