Page 15
14HPX SERIES

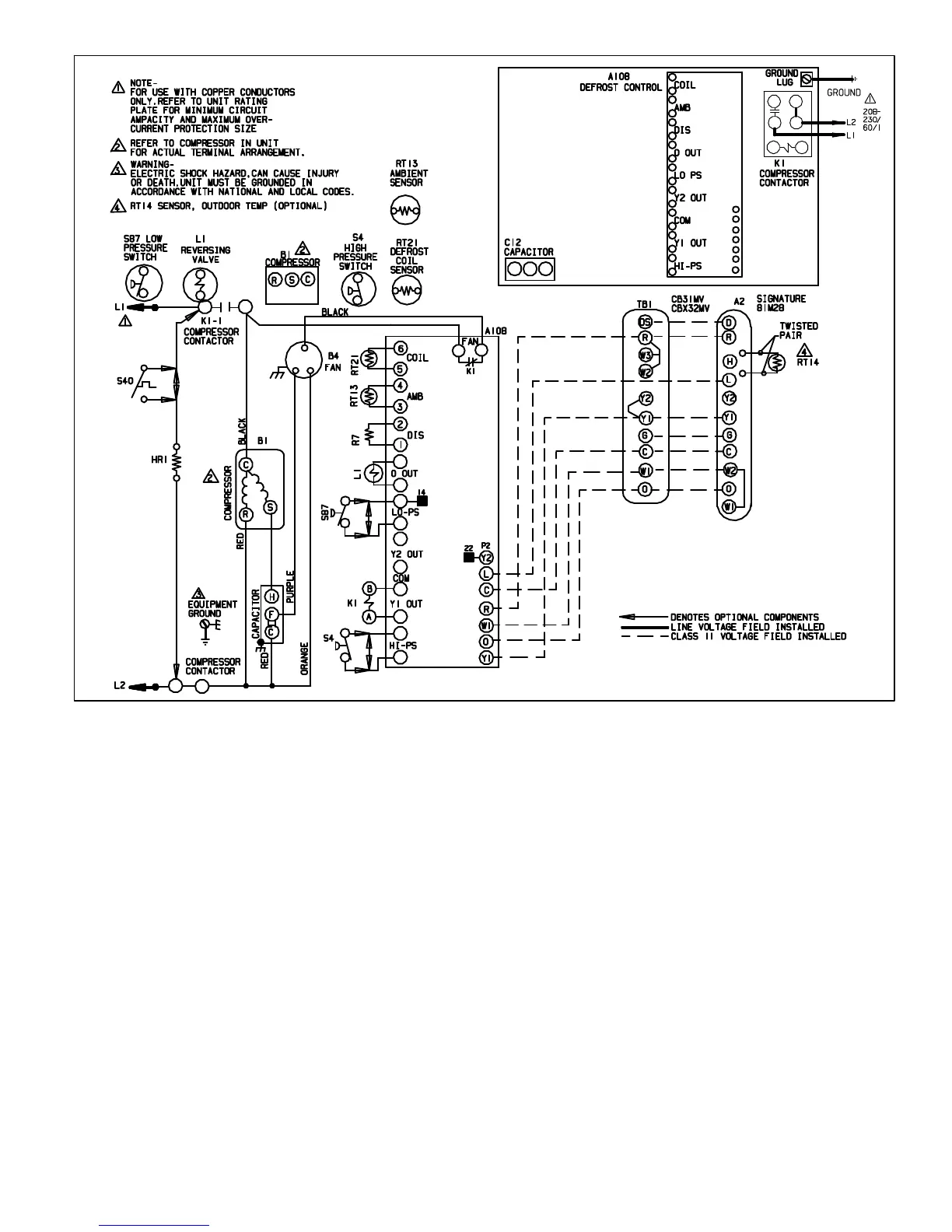

Figure 7. Typical Field Wiring Diagram

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Lennox Merit Series 14HPX and is the answer not in the manual?

Lennox Merit Series 14HPX Specifications

General IconGeneral
HSPF8.2
CompressorSingle-Stage
RefrigerantR-410A
Energy Star CertifiedNo
Compressor TypeSingle-stage
Cooling Capacity (BTU/h)24, 000 - 60, 000
Heating Capacity (BTU/h)24, 000 - 60, 000
Warranty5-Year Limited Parts
Efficiency RatingUp to 14 SEER
