28

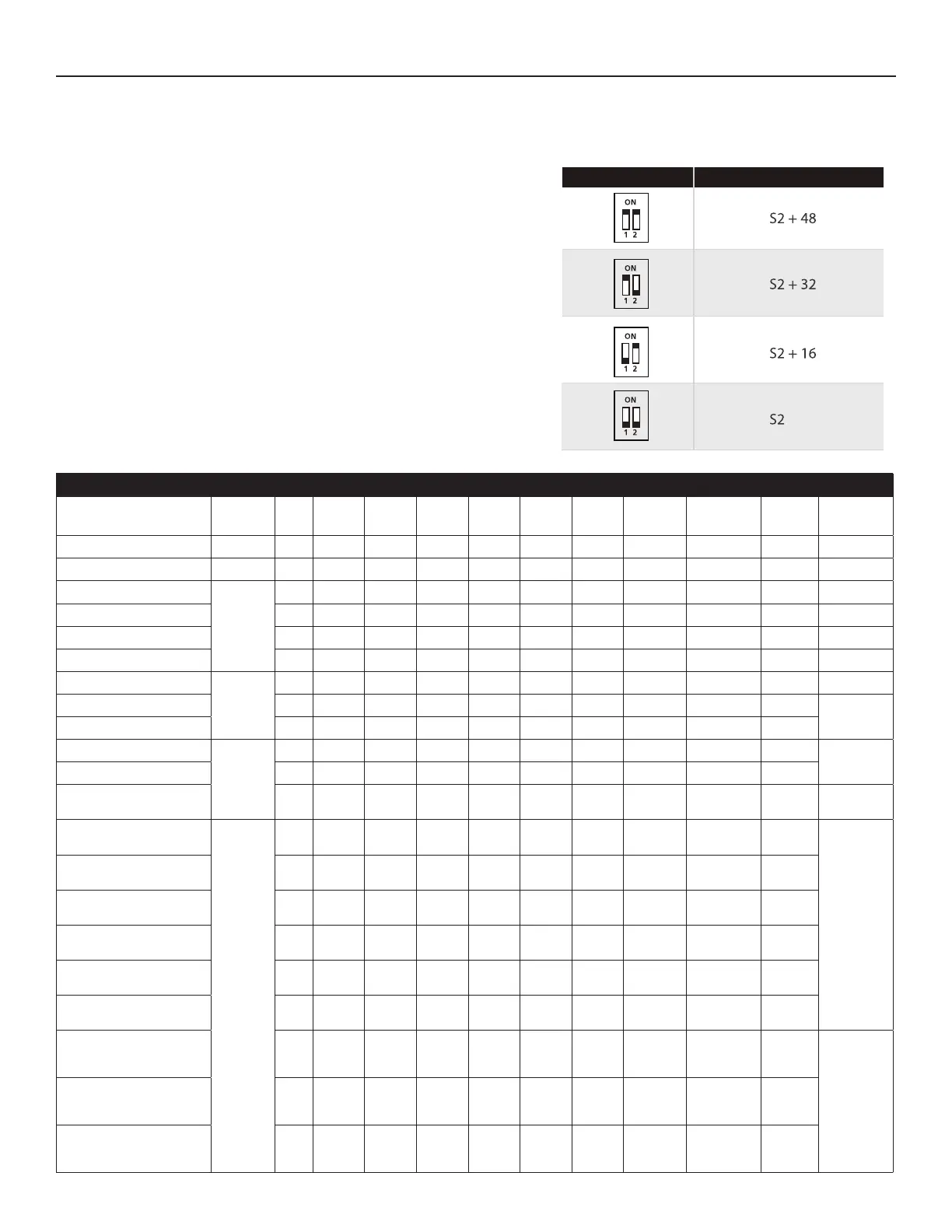

DIP Switch S1 and S2
Address dialing S1+S2:
Address dialing is required when using the centralized controller.
Network address:
• The address silkscreen is NET address, which is composed of a 16-
bit address rotary code S2 plus a two-digit DIP switch S1 (Set during
engineering installation, no network function needs to be set)
• When S2 is 00 (the dialing code is not connected), the network
address value is S2
• When S2 is 10 (corresponding to the switch of the hardware con-
nected to the 10K resistor), the network address value is S2 plus 32
• Determined by dial code S2 1-10K 2-5.1K. When S2 is 01
(corresponding to the dial code of the 5.1K resistor connected to the
hardware is turned on), the network address value is S2 plus 16
• When S2 is 11 (all dialing codes are on), the network address value
is S2 plus 48.
NOTE: The SW4 DIP switch is for certied service technician use only.
24V Input Terminal
Mode Priority G Y1 Y/Y2 B W W1 W2 E/AUX DH/DS/BK Fan
speed
Display
OFF / 0 0 0 0 0 0 0 0 * OFF 0
FAN 7 1 0 0 * 0 0 0 0 * Low 1
Cooling stage 1
6
* 1 0 0 0 0 0 0 1 Mid 2
Cooling stage 2 * * 1 0 0 0 0 0 1 High 3
Dehumidication * 1 0 0 0 0 0 0 0 Low 4
Dehumidication * * 1 0 0 0 0 0 0 Low 5
Heat pump stage 1
5
* 1 0 1 0 0 0 0 1 Mid 6
Heat pump stage 2 * * 1 1 0 0 0 0 1 High
7
Heat pump stage 2 * * * * 1 0 0 0 1 High
Electric heater kit 1
3
* 0 0 * 0 1 0 0 * Turbo
8
Electric heater kit 2 * 0 0 * 0 0 1 0 * Turbo
Electric heater kit 1
and kit 2
* 0 0 * 0 1 1 0 * Turbo 9
Heat pump stage 1 +
Electric heater kit 1
4
* 1 0 1 0 1 0 0 1 Turbo
10
Heat pump stage 1 +
Electric heater kit 2
* 1 0 1 0 0 1 0 1 Turbo
Heat pump stage 2 +
Electric heater kit 1
* * 1 1 0 1 0 0 1 Turbo
Heat pump stage 2 +
Electric heater kit 1
* * * * 1 1 0 0 1 Turbo
Heat pump stage 2 +
Electric heater kit 2
* * 1 1 0 0 1 0 1 Turbo
Heat pump stage 2 +
Electric heater kit 2
* * * * 1 0 1 0 1 Turbo
Heat pump stage 1 +
Electric heater kit 1
and kit 2
* 1 0 1 0 1 1 0 1 Turbo
11
Heat pump stage 2 +
Electric heater kit 1
and kit 2
* * 1 1 0 1 1 0 1 Turbo
Heat pump stage 2 +
Electric heater kit 1
and kit 2
* * * * 1 1 1 0 1 Turbo
Dial code selection Website address
Determined by Dial Code
S2 1-10K 2-5.1K
