Lennox MWHA018S4-1P - Unit Disassembly and Component Servicing

37
17. Indoor and Outdoor Unit Disassembly
NOTE: This section is for reference only. Actual unit
appearance may vary.
17.1. Indoor Unit (All Models)
17.1.1. Front Panel

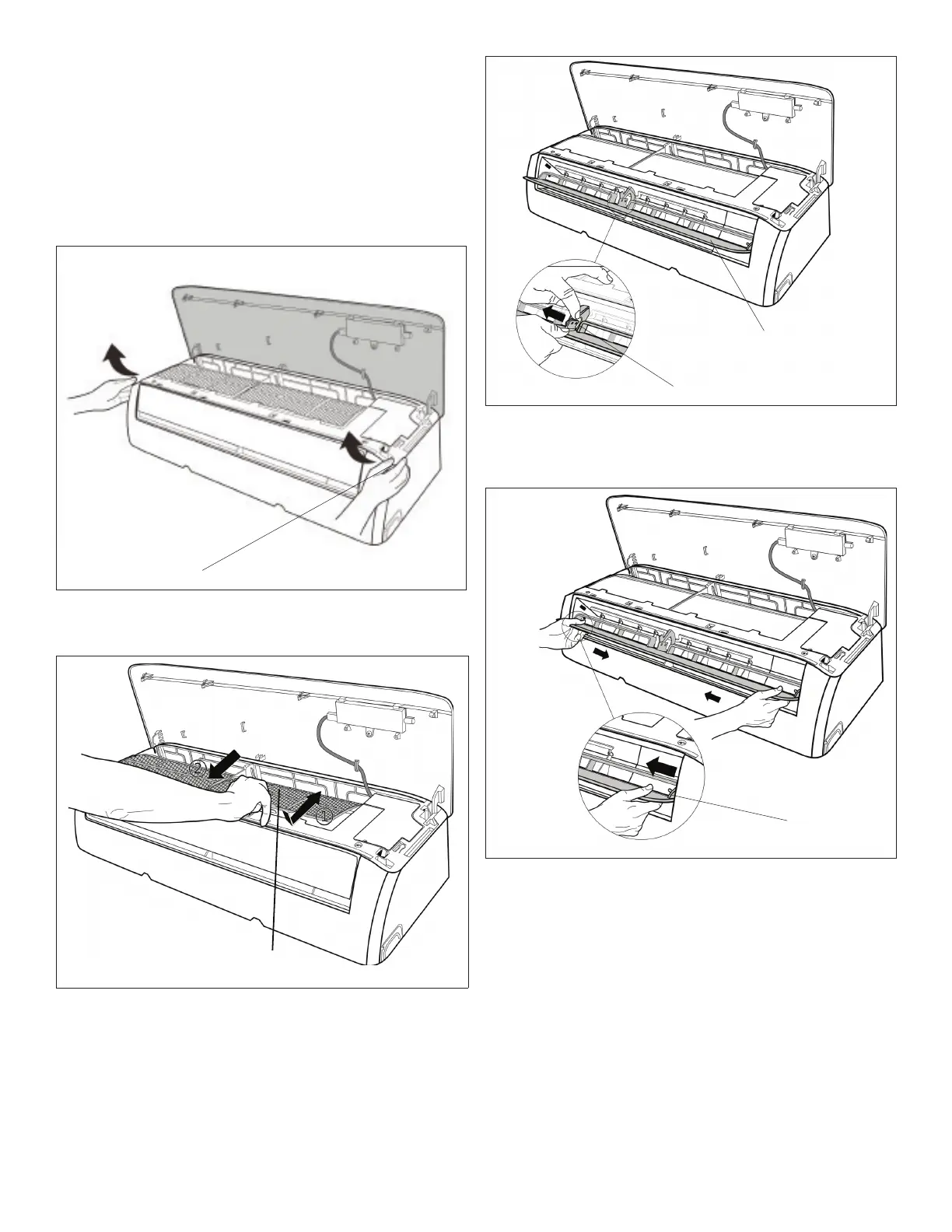

Step 1. Holdthefrontpanelbythetabsonthebothsides
andliftit.
TAB
Step 2. Pushupthebottomofanairlter(step1),and
thenpullitoutdownwards(step2).
FILTER
Step 3. Openthehorizontallouverandpushthehook
towardslefttoopenit.
Horizontal Louver
Hook
Step 4. Bendthehorizontallouverlightlybybothhands
toloosenthehooks,thenremovethehorizontal
louver.
Hook
Step 5. Prytheelectricalcoverbyascrewdriver,and
rotateittowardsleft,thenremoveit.
